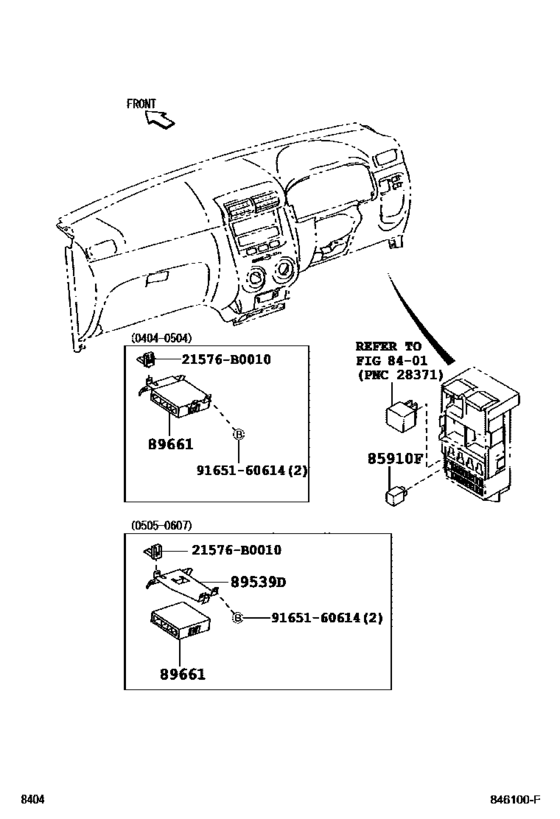

Electronic Fuel Injection System ([04.2004 - 08.2006] (0404-0608)TH) Diagram Toyota AVANZA
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- F601
- grade
- LIMD
- body
- VAN
- ENGINE
- K3VE
- DESTINATION
- TH
- From
- 12.2004
- To
- 08.2006
- Gear Shift Type
- 4AT
- Model Mark
- PS1
- Driver's Position
- RHD
- Fuel Induction
- WVVT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910F
|
85910F
9004A-98006 Relay[12.2003 - 08.2006] F601..BRU,IDN,TH |
9004A-98006 |
US $36.29 |
||
|
89539D
|
89539D
89539-BZ020
Bracket, Computer
[05.2005 - 08.2006] F601..TH |
89539-BZ020 |
— | ||
|
89661
|
89661
89560-B0010
Computer, Engine Control
[04.2004 - 05.2005] F601..LIMD,S;F601..5F..TH |
89560-B0010 |
— | ||
| replacement | |||||
|
89661
|
89661
89560-B0011 Computer, Engine Control[04.2004 - 05.2005] F601..LIMD,S;F601..5F..TH |
89560-B0011 |
US $902.72 |
||
|
89661
|
89661
89560-BZ050
Computer, Engine Control
[05.2005 - 10.2005] F601..TH |
89560-BZ050 |
— | ||
| replacement | |||||
|
89661
|
89661
89560-BZ051
Computer, Engine Control
[05.2005 - 10.2005] F601..TH |
89560-BZ051 |
— | ||
|
89661
|
89661
89560-BZ051
Computer, Engine Control
[10.2005 - 08.2006] F601..TH |
89560-BZ051 |
— | ||
|
21576B0010
|
21576B0010
21576-B0010
Clip, Pump Strainer
|
21576-B0010 |
— | ||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
