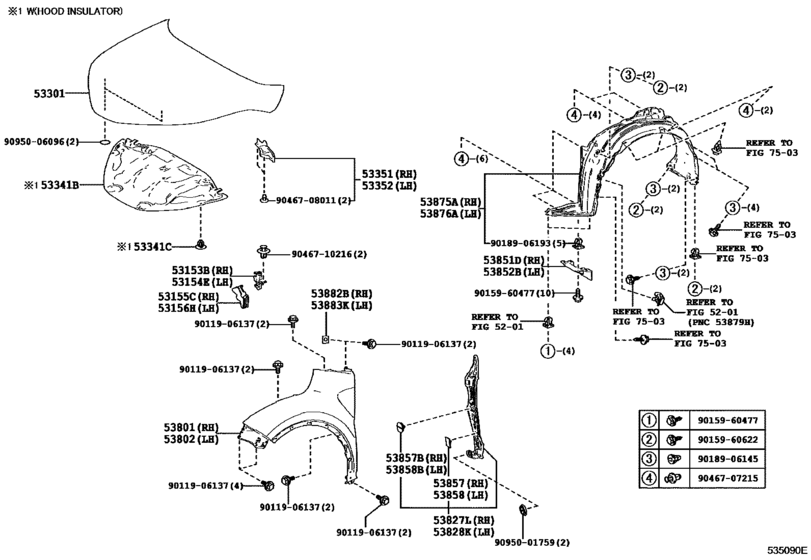

Hood & Front Fender ([10.2016 - ] (1610- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Europe
- Frame
- ZYX10
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- EUR
- From
- 10.2016
- Model Mark
- N
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53153B
|
53153B
53153-F4010
Guide, Front Side Air
[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53153-F4010 |
— | ||
|
53154E
|
53154E
53154-F4010
Guide, Front Side Air, No.2
[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53154-F4010 |
— | ||
|
53155C
|
53155C
53155-F4010
Seal, Radiator Grille, No.1
[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53155-F4010 |
— | ||
|
53156H
|
53156H
53156-F4010
Seal, Radiator Grille, No.2
[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53156-F4010 |
— | ||
|
53301
|
53301
53301-F4010 Hood Sub-Assy[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53301-F4010 |
US $420.79 |
||
|
53341B
|
53341B
53341-F4010 Insulator, Hood[10.2016 -] NGX10,50,ZGX10,ZYX10..E,G,N; ZYX10..N;NGX10..6F..N..EUR LIGHT GRADE |
53341-F4010 |
US $106.68 |
||
|
53341C
|
53341C
90467-09050 Clip(For Hood Insulator)[10.2016 -] NGX10,50,ZGX10,ZYX10..E,G,N (J); ZYX10..N;NGX10..6F..N..EUR LIGHT GRADE,(J) |
90467-09050 |
from US $0.86 |
||
|
53341C
|
53341C
90467-W0003
Clip(For Hood Insulator)
[10.2016 -] NGX10,50,ZGX10,ZYX10..E,G,N (L) |
90467-W0003 |
— | ||
| replacement | |||||
|
53341C
|
53341C
90467-09050 Clip(For Hood Insulator)[10.2016 -] NGX10,50,ZGX10,ZYX10..E,G,N (L) |
90467-09050 |
from US $0.86 |
||
|
53351
|
53351
53351-F4010
Panel, Hood Side, Rh
[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53351-F4010 |
— | ||
|
53352
|
53352
53352-F4010
Panel, Hood Side, Lh
[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53352-F4010 |
— | ||
|
53801
|
53801
53801-F4010 Fender Sub-Assy, Front Rh[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53801-F4010 |
US $253.52 |
||
|
53802
|
53802
53802-F4010 Fender Sub-Assy, Front Lh[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53802-F4010 |
US $260.29 |
||
|
53827L
|
53827L
53827-F4010 Protector, Front Fender Side Panel, Rh[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53827-F4010 |
US $35.02 |
||
|
53828K
|
53828K
53828-F4010 Protector, Front Fender Side Panel, Lh[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53828-F4010 |
US $34.79 |
||
|
53851D
|
53851D
53851-F4020 Pad, Front Wheel Opening Extension, Rh[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53851-F4020 |
from US $34.94 |
||
|
53852B
|
53852B
53852-F4010 Pad, Front Wheel Opening Extension, Lh[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53852-F4010 |
from US $34.92 |
||
|
53857
|
53857
53857-12010 Retainer, Front Wheel Opening Extension, Rh[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53857-12010 |
from US $1.29 |
||
|
53857B
|
53857B
53857-47011 Retainer, Front Wheel Opening Extension, RhFRONT WHEEL OPENING EXTENSION, RH [10.2016 -] NGX10,50,ZGX10,ZYX10 |
53857-47011 |
from US $0.74 |
||
|
53858
|
53858
53857-12010 Retainer, Front Wheel Opening Extension, Rh[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53857-12010 |
from US $1.29 |
||
|
53858B
|
53858B
53857-47011 Retainer, Front Wheel Opening Extension, RhFRONT WHEEL OPENING EXTENSION, RH [10.2016 -] NGX10,50,ZGX10,ZYX10 |
53857-47011 |
from US $0.74 |
||
|
53875A
|
53875A
53875-F4021
Liner, Front Fender, Rh
[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53875-F4021 |
— | ||
|
53876A
|
53876A
53876-F4021
Liner, Front Fender, Lh
[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53876-F4021 |
— | ||
|
53882B
|
53882B
53882-16030 Pad, Rear Bumper, Center[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53882-16030 |
from US $0.80 |
||
|
53883K
|
53883K
53882-16030 Pad, Rear Bumper, Center[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53882-16030 |
from US $0.80 |
||
|
9011906137
|
9011906137
90119-06137 BOLT |
90119-06137 |
from US $0.68 |
||
|
9015960477
|
9015960477
90159-60477 SCREW, WWASHER |
90159-60477 |
from US $0.70 |
||
|
9015960622
|
9015960622
90159-60622
SCREW, W/WASHER TAPP
|
90159-60622 |
— | ||
| replacement | |||||
|
9015960622
|
9015960622
9015960623 Screw, W/washer Tapping |
9015960623 |
from US $0.49 |
||
|
9018906145
|
9018906145
90189-06145 GROMMET SCREW |
90189-06145 |
from US $0.86 |
||
|
9018906193
|
9018906193
90189-06193 Grommet(For Engine Under Cover) |
90189-06193 |
from US $0.74 |
||
|
9046707215
|
9046707215
90467-07215 Clip |
90467-07215 |
from US $0.80 |
||
|
9046708011
|
9046708011
90467-08011 Clip(For Headlamp Cover Seal) |
90467-08011 |
from US $0.38 |
||
| replacements | |||||
|
9046708011
|
9046708011
90467-08011-TH CLIP |
90467-08011-TH |
US $0.31 |
||
|
9046708011
|
9046708011
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) |
90467-08011-83 |
US $3.60 |
||
|
9046710216
|
9046710216
90467-10216 Clip, Engine Under Cover, No.2 |
90467-10216 |
from US $1.07 |
||
|
9095001759
|
9095001759
90950-01759 PLUG |
90950-01759 |
from US $2.09 |
||
|
9095006096
|
9095006096
90950-06096 Plug, Hole(For Hood) |
90950-06096 |
from US $1.29 |
||
