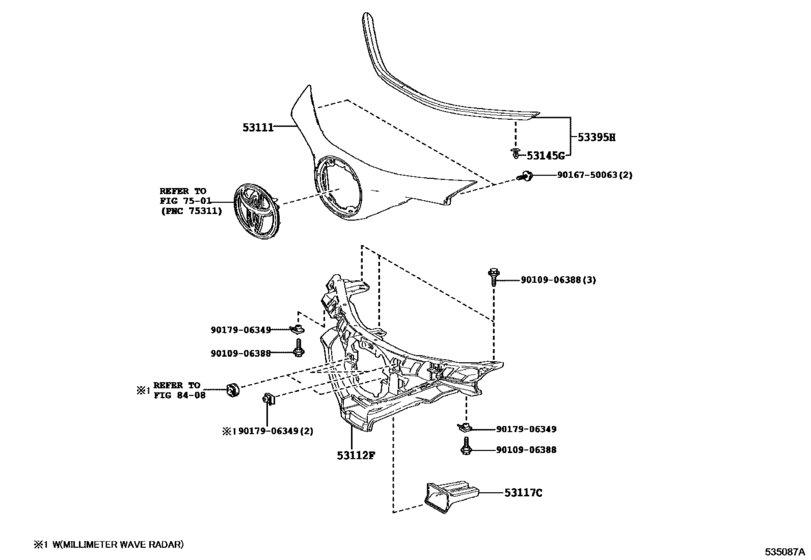

Radiator Grille ([10.2016 - ] (1610- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Europe
- Frame
- ZYX10
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- EUR
- From
- 10.2016
- Model Mark
- N
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53111
|
53111
53111-F4901 Grille, Radiator[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53111-F4901 |
US $120.76 |
||
|
53112F
|
53112F
53112-F4010
Grille, Radiator, Inside
[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53112-F4010 |
— | ||
|
53117C
|
53117C
52521-F4010 Retainer, Radiator Grille, No.1[10.2016 -] NGX10,50,ZGX10,ZYX10 |
52521-F4010 |
US $24.14 |
||
|
53145G
|
53145G
53145-60030 Clip(For Front Bumper), No.1[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53145-60030 |
from US $0.92 |
||
|
53395H
|
53395H
53395-F4010
Seal, Hood To Radiator Grille
[10.2016 -] NGX10,50,ZGX10,ZYX10 |
53395-F4010 |
— | ||
|
9010906388
|
9010906388
90109-06388 BOLT |
90109-06388 |
from US $0.66 |
||
|
9016750063
|
9016750063
90167-50063 SCREW PAN TAPPING |
90167-50063 |
from US $0.55 |
||
|
9017906349
|
9017906349
90179-06349 NUT |
90179-06349 |
from US $1.31 |
