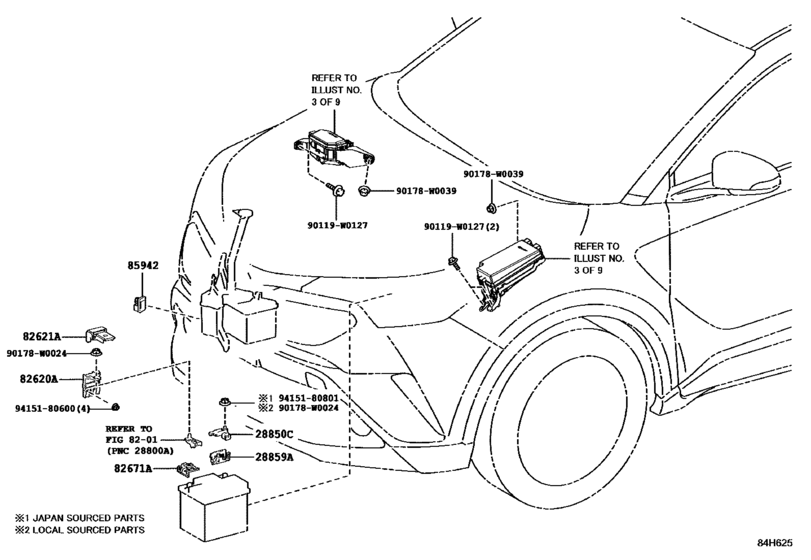

Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM (1610- )ZYX10) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Europe
- Frame
- ZYX10
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- EUR
- From
- 10.2016
- Model Mark
- N
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28850C
|
28850C
28850-0Y020 Sensor Assy, Battery State[10.2016 -] 8NRFTS,2ZRFXE..NGX10,50,ZYX10..EUR; 8NRFTS..NGX10..LHD..6F..EUR NEW CALEDONIA SPEC; 8NRFTS..NGX10..LHD..6F..EUR MONTENEGRO SPEC |
28850-0Y020 |
US $100.05 |
||
|
28859A
|
28859A
28859-0Y020
Holder, Battery Current Sensor
[10.2016 -] 2ZRFXE..ZYX10 |
28859-0Y020 |
— | ||
|
82620A
|
82620A
82620-47090 Block Assy, Fusible Link[10.2016 -] ZYX10 |
82620-47090 |
from US $39 |
||
|
82621A
|
82621A
82621-47020 Cover, Fusible Link[10.2016 -] ZYX10 |
82621-47020 |
from US $11.10 |
||
|
82671A
|
82671A
82671-47040 Block, Junction[10.2016 -] ZYX10 |
82671-47040 |
from US $6.08 |
||
|
90119W0127
|
90119W0127
90119-W0127 New Genuine Part |
90119-W0127 |
US $1.02 |
||
|
90178W0024
|
90178W0024
90178-W0024
New Genuine Part
|
90178-W0024 |
— | ||
|
90178W0039
|
90178W0039
90178-W0039 New Genuine Part |
90178-W0039 |
US $0.73 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
|
9415180801
|
9415180801
94151-80801 NUT FLANGE |
94151-80801 |
from US $0.78 |
