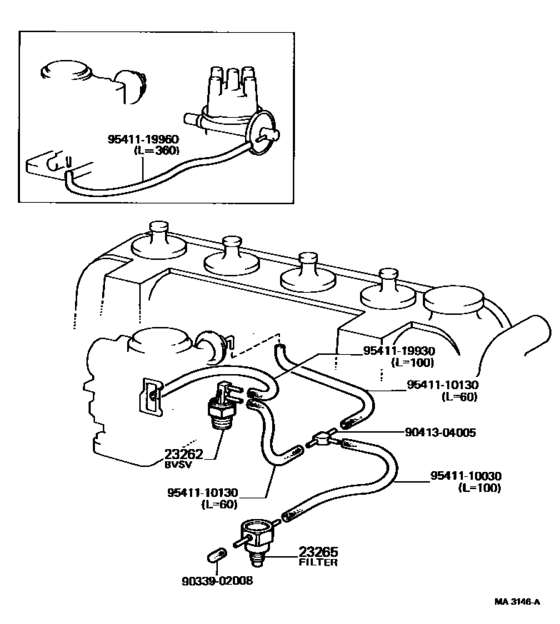

Vacuum Piping ([10.1977 - 08.1979] (7710-7908)2T) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- Europe
- Frame
- TA40
- grade
- LT
- body
- CP
- ENGINE
- 2T
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 4F
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23262
|
23262
90925-05010
Valve, Bimetal Vacuum Switching, No.2
[10.1977 - 08.1979] 2T..TA40 |
90925-05010 |
— | ||
|
23265
|
23265
90917-11015 Filter, Gas, No.1GAS, NO.1 [10.1977 - 08.1979] 2T..TA40 |
90917-11015 |
US $24.02 |
||
|
23265
|
23265
90917-11023 Filter, Gas, No.1[08.1979 - 07.1981] 18R..RA40..3FC..EUG; 2T..TA40..MTM..EUG; 18R..RA40..RHD..3FC..GEN HONG KONG SPEC |
90917-11023 |
from US $23.41 |
||
|
9033902008
|
9033902008
90339-02008 New Genuine Part |
90339-02008 |
US $2.91 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.40 |
||
|
9541110030
|
9541110030
95411-10030
Hose (For Idle Up Device)
|
95411-10030 |
— | ||
| replacement | |||||
|
9541110030
|
9541110030
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110130
|
9541110130
95411-10130
Pipe Or Hose
|
95411-10130 |
— | ||
| replacement | |||||
|
9541110130
|
9541110130
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119960
|
9541119960
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
|
95411-19960 |
— | ||
| replacement | |||||
|
9541119960
|
9541119960
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
