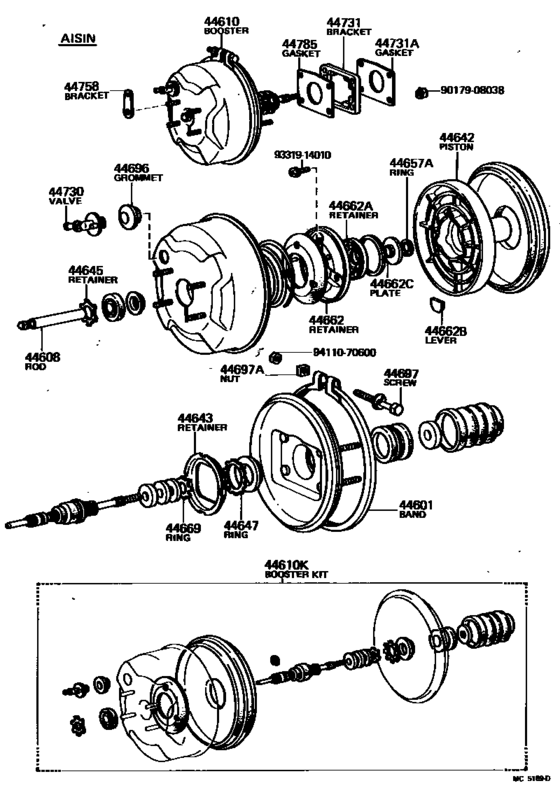

Brake Booster & Vacuum Tube ([08.1977 - ] (7708- )RA40..LHD ; (7708- )TA40..LHD..GT) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- General
- Frame
- TA40
- grade
- GT
- body
- LB
- ENGINE
- 2TG
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44601
|
44601
44605-30030 Band Sub-Assy, Booster BodyBOOSTER BODY [08.1977 - 07.1981] TA40..LHD..GT; RA40..LHD |
44605-30030 |
US $18.35 |
||
|
44608
|
44608
44606-30050
Push Rod Sub-Assy, Booster
[08.1977 - 08.1979] RA40 AISIN; TA40..RHD..GT AISIN; TA40..LHD AISIN |
44606-30050 |
— | ||
| replacement | |||||
|
44608
|
44608
44606-35100 Push Rod Sub-Assy, Booster[08.1977 - 08.1979] RA40 AISIN; TA40..RHD..GT AISIN; TA40..LHD AISIN |
44606-35100 |
US $12.23 |
||
|
44608
|
44608
44608-14040 Push Rod Sub-Assy, Booster[08.1977 - 08.1979] RA40,TA40..LHD JKC; TA40..RHD..(LT,ST) JKC |
44608-14040 |
US $21.99 |
||
|
44610
|
44610
44610-14331
Booster Assy, Brake
[08.1977 - 07.1981] TA40..LHD..GT; RA40..LHD |
44610-14331 |
— | ||
|
44610K
|
44610K
04443-14260
Booster Kit, Brake
[08.1977 - 07.1981] TA40..LHD..GT AISIN; RA40..LHD AISIN |
04443-14260 |
— | ||
|
44610K
|
44610K
04443-14270
Booster Kit, Brake
[08.1977 - 07.1981] TA40..LHD..GT JKC |
04443-14270 |
— | ||
|
44642
|
44642
44642-20140 Piston, Brake Booster[08.1977 - 08.1979] RA40,TA40..GT,XT JKC |
44642-20140 |
US $206.75 |
||
|
44642
|
44642
44642-30030 Piston, Brake BoosterBRAKE BOOSTER [08.1977 - 07.1981] TA40..LHD..GT AISIN; RA40..LHD AISIN |
44642-30030 |
US $136.86 |
||
|
44642
|
44642
44642-35080
Piston, Brake Booster
[08.1977 - 08.1979] TA40..LHD..GT JKC; RA40..LHD JKC |
44642-35080 |
— | ||
|
44643
|
44643
44643-60010 Retainer, Diaphragm[08.1977 - 08.1979] RA40 AISIN; TA40..RHD..GT AISIN; TA40..LHD AISIN |
44643-60010 |
US $8.30 |
||
|
44645
|
44645
44628-60010
Ring, Circular Internal
[08.1977 - 08.1979] RA40 AISIN; TA40..RHD..GT AISIN; TA40..LHD AISIN |
44628-60010 |
— | ||
|
44645
|
44645
44645-22020 Retainer, Booster Push Rod Seal[08.1977 - 08.1979] RA40,TA40..LHD JKC; TA40..RHD..(LT,ST) JKC |
44645-22020 |
US $2.80 |
||
|
44647
|
44647
44629-30090 Ring, Circular Internal[08.1977 - 07.1981] TA40..LHD..GT; RA40..LHD |
44629-30090 |
US $3.93 |
||
|
44657A
|
44657A
96150-01600 Ring, Snap (For Shift & Select Lever Shaft)[08.1977 - 08.1979] RA40 AISIN; TA40..RHD..GT AISIN; TA40..LHD AISIN |
96150-01600 |
US $3.67 |
||
|
44662
|
44662
44663-35060
Retainer, Reaction, No.2
[08.1977 - 07.1981] TA40..LHD..GT; RA40..LHD |
44663-35060 |
— | ||
|
44662A
|
44662A
44662-60010 Retainer, Reaction, No.1REACTION, NO.2 [08.1977 - 08.1979] RA40 AISIN; TA40..GT AISIN |
44662-60010 |
US $13.10 |
||
|
44662B
|
44662B
44661-60010
Lever, Reaction
[08.1977 - 08.1979] RA40 AISIN; TA40..RHD..GT AISIN; TA40..LHD AISIN |
44661-60010 |
— | ||
| replacement | |||||
|
44662B
|
44662B
44661-35100
Lever, Reaction
[08.1977 - 08.1979] RA40 AISIN; TA40..RHD..GT AISIN; TA40..LHD AISIN |
44661-35100 |
— | ||
|
44662C
|
44662C
44653-20150
Plate, Reaction, No.1
[08.1977 - 08.1979] RA40 AISIN; TA40..LHD AISIN |
44653-20150 |
— | ||
|
44669
|
44669
44669-60010 Ring, Circular Internal(For Air Cleaner Element Stopper)[08.1977 - 08.1979] RA40 AISIN; TA40..RHD..GT AISIN; TA40..LHD AISIN |
44669-60010 |
US $3.64 |
||
|
44696
|
44696
90480-24439 Grommet, Check Valve[08.1977 - 08.1979] RA40,TA40..LHD AISIN; RA40..RHD..(ST,XT) AISIN |
90480-24439 |
from US $2.57 |
||
|
44696
|
44696
90480-24517
Grommet, Check Valve
[08.1977 - 07.1981] RA40..ARL JKC; RA40,TA40..LHD..GEN JKC; RA40,TA40..LHD..EUG JKC |
90480-24517 |
— | ||
| replacement | |||||
|
44696
|
44696
90480-24015 Grommet, Check Valve[08.1977 - 07.1981] RA40..ARL JKC; RA40,TA40..LHD..GEN JKC; RA40,TA40..LHD..EUG JKC |
90480-24015 |
from US $2.33 |
||
|
44697
|
44697
44681-30170 Screw, Booster Band Set[08.1977 - 07.1981] TA40..LHD..GT AISIN; RA40..LHD AISIN |
44681-30170 |
US $3.79 |
||
|
44697A
|
44697A
44686-30030 Nut(For Booster Band Set)[08.1977 - 07.1981] TA40..LHD..GT; RA40..LHD |
44686-30030 |
US $3.35 |
||
|
44730
|
44730
44730-20060 Valve Assy, Vacuum Check(For Brake)[08.1977 - 07.1981] RA40,TA40..LHD AISIN |
44730-20060 |
US $36.68 |
||
|
44731
|
44731
44731-14030 Bracket, Brake BoosterBRAKE BOOSTER, FRONT [08.1977 - 08.1979] RA40,TA40..LHD |
44731-14030 |
US $19.36 |
||
| replacement | |||||
|
44731
|
44731
44731-20090
Bracket, Brake Booster
[08.1977 - 08.1979] RA40,TA40..LHD |
44731-20090 |
— | ||
|
44731
|
44731
44731-20090
Bracket, Brake Booster
[08.1979 - 07.1981] RA40,TA40..LHD |
44731-20090 |
— | ||
|
44731A
|
44731A
44785-20030
Gasket, Brake Booster
[12.1978 - 07.1981] RA40,TA40..LHD |
44785-20030 |
— | ||
|
44731A
|
44731A
44785-22010 Gasket, Brake Booster BracketBRAKE BOOSTER BRACKET [08.1977 - 01.1978] RA40,TA40..LHD |
44785-22010 |
US $2.91 |
||
| replacement | |||||
|
44731A
|
44731A
44785-30020 Gasket, Brake Booster Bracket[08.1977 - 01.1978] RA40,TA40..LHD |
44785-30020 |
US $4.48 |
||
|
44731A
|
44731A
44785-30020 Gasket, Brake Booster Bracket[01.1978 - 12.1978] RA40,TA40..LHD |
44785-30020 |
US $4.48 |
||
|
44758
|
44758
44758-22030
Bracket, Vacuum Check Valve
[08.1977 - 07.1981] RA40,TA40..LHD |
44758-22030 |
— | ||
|
44785
|
44785
44785-20030
Gasket, Brake Booster
[12.1978 - 07.1981] RA40,TA40 |
44785-20030 |
— | ||
|
44785
|
44785
44785-22010 Gasket, Brake Booster BracketBRAKE BOOSTER BRACKET [08.1977 - 01.1978] RA40,TA40 |
44785-22010 |
US $2.91 |
||
| replacement | |||||
|
44785
|
44785
44785-30020 Gasket, Brake Booster Bracket[08.1977 - 01.1978] RA40,TA40 |
44785-30020 |
US $4.48 |
||
|
44785
|
44785
44785-30020 Gasket, Brake Booster Bracket[01.1978 - 12.1978] RA40,TA40 |
44785-30020 |
US $4.48 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.80 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
|
9411070600
|
9411070600
94110-70600 New Genuine Part |
94110-70600 |
US $1.75 |
||
| replacement | |||||
|
9411070600
|
9411070600
94130-00602 New Genuine Part |
94130-00602 |
US $0.87 |
||
