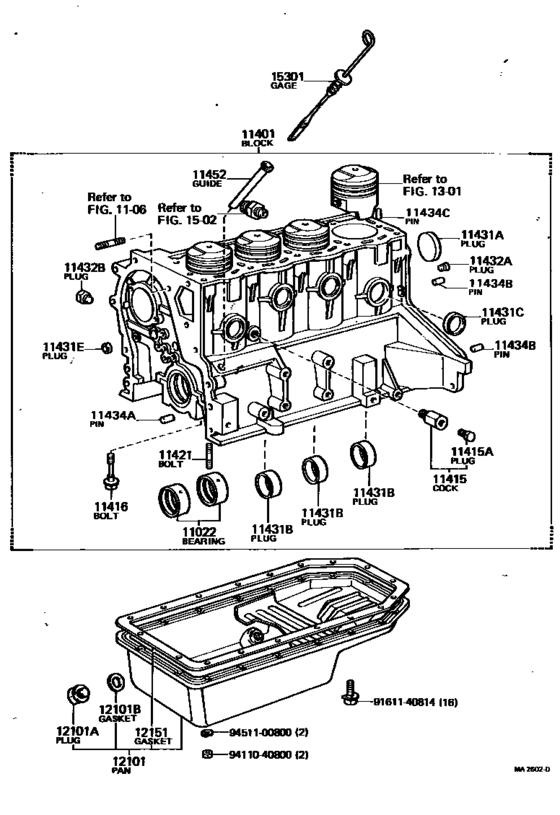

Cylinder Block ([08.1977 - ] (7708- )2TG) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- General
- Frame
- TA40
- grade
- GT
- body
- LB
- ENGINE
- 2TG
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11022
|
11022
11022-27010
Bearing Set, Pump Drive Shaft
[08.1977 - 11.1980] 2TG..TA40 |
11022-27010 |
— | ||
| replacement | |||||
|
11022
|
11022
11022-27011
Bearing Set, Pump Drive Shaft
[08.1977 - 11.1980] 2TG..TA40 |
11022-27011 |
— | ||
|
11022
|
11022
11022-27011
Bearing Set, Pump Drive Shaft
[11.1980 - 07.1981] 2TG..TA40 |
11022-27011 |
— | ||
|
11401
|
11401
11401-29058 Block Sub-Assy, CylinderCYLINDER [08.1977 - 05.1978] 2TG..TA40 |
11401-29058 |
US $2,285.92 |
||
| replacement | |||||
|
11401
|
11401
11401-29445
Block Sub-Assy, Cylinder
[08.1977 - 05.1978] 2TG..TA40 |
11401-29445 |
— | ||
|
11401
|
11401
11401-29059 Block Sub-Assy, CylinderCYLINDER [05.1978 - 07.1981] 2TG..TA40 |
11401-29059 |
US $2,111.20 |
||
| replacement | |||||
|
11401
|
11401
11401-29455
Block Sub-Assy, Cylinder
[05.1978 - 07.1981] 2TG..TA40 |
11401-29455 |
— | ||
|
11415
|
11415
96431-03833
Cock Sub-Assy, Water Drain(For Cylinder Block)
[08.1977 - 02.1980] 18R#..RA40; 2T#..TA40 |
96431-03833 |
— | ||
| replacement | |||||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[08.1977 - 02.1980] 18R#..RA40; 2T#..TA40 |
96431-53828 |
US $8.12 |
||
|
11415A
|
11415A
96431-23814 Plug, Water Drain Cock(For Cylinder Block)[08.1977 - 07.1981] 18R#..RA40; 2T#..TA40 |
96431-23814 |
from US $6.94 |
||
|
11416
|
11416
90910-02032 Bolt(For Crankshaft Bearing Cap Set)[08.1977 - 07.1981] 2T#..TA40 |
90910-02032 |
US $3.99 |
||
|
11421
|
11421
90116-08057 Bolt, Stud(For Timing Gear Cover)[08.1977 - 07.1981] 18RG..RA40 L=29,S=13&13; 2TG..TA40 L=29,S=13&13 |
90116-08057 |
US $2.77 |
||
|
11431A
|
11431A
96411-45000 Plug, Tight, No.1(For Cam Housing)[08.1977 - 07.1981] 2T#..TA40 OD=50 |
96411-45000 |
from US $3.84 |
||
|
11431B
|
11431B
90072-33901 Plug, Tight, No.2(For Cylinder Block)TIGHT, NO.2(FOR CYLINDER BLOCK) [08.1977 - 02.1981] 2TG..TA40 OD=46.00 |
90072-33901 |
US $14.27 |
||
| replacement | |||||
|
11431B
|
11431B
90339-42001 Plug, Tight, No.2(For Cylinder Block)[08.1977 - 02.1981] 2TG..TA40 OD=46.00 |
90339-42001 |
US $15.87 |
||
|
11431B
|
11431B
90072-33902 Plug, Tight, No.2(For Cylinder Block)TIGHT, NO.2(FOR CYLINDER BLOCK) [08.1977 - 02.1981] 2TG..TA40 OD=45.75 |
90072-33902 |
US $14.27 |
||
| replacement | |||||
|
11431B
|
11431B
90339-41001 Plug, Tight, No.2(For Cylinder Block)[08.1977 - 02.1981] 2TG..TA40 OD=45.75 |
90339-41001 |
US $15.87 |
||
|
11431B
|
11431B
90072-33903 Plug, Tight, No.2(For Cylinder Block)TIGHT, NO.2(FOR CYLINDER BLOCK) [08.1977 - 02.1981] 2TG..TA40 OD=45.50 |
90072-33903 |
US $14.27 |
||
| replacement | |||||
|
11431B
|
11431B
90339-41002 Plug, Tight, No.2(For Cylinder Block)[08.1977 - 02.1981] 2TG..TA40 OD=45.50 |
90339-41002 |
US $15.87 |
||
|
11431B
|
11431B
90339-41001 Plug, Tight, No.2(For Cylinder Block)[02.1981 - 07.1981] 2TG..TA40 OD=45.75 |
90339-41001 |
US $15.87 |
||
|
11431B
|
11431B
90339-41002 Plug, Tight, No.2(For Cylinder Block)[02.1981 - 07.1981] 2TG..TA40 OD=45.50 |
90339-41002 |
US $15.87 |
||
|
11431B
|
11431B
90339-42001 Plug, Tight, No.2(For Cylinder Block)[02.1981 - 07.1981] 2TG..TA40 OD=46.00 |
90339-42001 |
US $15.87 |
||
|
11431C
|
11431C
90331-35026
Plug, Tight, No.3(For Cylinder Block)
[08.1977 - 12.1978] 2TG..TA40 OD=35 |
90331-35026 |
— | ||
| replacement | |||||
|
11431C
|
11431C
96411-43500 Plug, Tight, No.1[08.1977 - 12.1978] 2TG..TA40 OD=35 |
96411-43500 |
from US $3.59 |
||
|
11431C
|
11431C
96411-43500 Plug, Tight, No.1[12.1978 - 07.1981] 2T#..TA40 OD=35 |
96411-43500 |
from US $3.59 |
||
|
11431E
|
11431E
96411-01800 Plug, Tight, No.1(For Cylinder Block)[08.1977 - 07.1981] 2T#..TA40 OD=18 |
96411-01800 |
US $3.03 |
||
|
11432A
|
11432A
90344-53011 Plug, W/head Taper Screw, No.1[08.1977 - 07.1981] 2T#..TA40 |
90344-53011 |
US $4.30 |
||
|
11432B
|
11432B
90072-34107
Plug, W/head Taper Screw, No.1
[08.1977 - 07.1981] 18R#..RA40; 2TG..TA40 |
90072-34107 |
— | ||
| replacement | |||||
|
11432B
|
11432B
90345-51006 Plug, W/head Taper Screw, No.2[08.1977 - 07.1981] 18R#..RA40; 2TG..TA40 |
90345-51006 |
from US $0.87 |
||
|
11434B
|
11434B
90250-08120 Pin, Straight, No.1[08.1977 - 07.1981] 2T#..TA40 L=18,OD=8,L=18,OD=8 |
90250-08120 |
from US $1.01 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[08.1977 - 07.1981] 2T#..TA40 L=22,OD=10,L=22,OD=10 |
90250-10113 |
from US $1.17 |
||
|
11434C
|
11434C
90250-08120 Pin, Straight, No.1[08.1977 - 07.1981] 18R#..RA40 L=18,OD=8,L=18,OD=8; 2T#..TA40 L=18,OD=8,L=18,OD=8 |
90250-08120 |
from US $1.01 |
||
|
11452
|
11452
11452-40010 Guide, Oil Level Gage[08.1977 - 08.1979] 18R#..RA40; 2T#..TA40 |
11452-40010 |
US $10.31 |
||
|
12101
|
12101
12101-29075
Pan Sub-Assy, Oil
[08.1977 - 07.1981] 2T#..TA40 |
12101-29075 |
— | ||
| replacement | |||||
|
12101
|
12101
12101-29076
Pan Sub-Assy, Oil
[08.1977 - 07.1981] 2T#..TA40 |
12101-29076 |
— | ||
|
12101A
|
12101A
90341-18089
Plug(For Oil Pan Drain)
[08.1977 - 07.1981] 18R#..RA40; 2T#..TA40 |
90341-18089 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90033-41020 Plug(For Oil Pan Drain)[08.1977 - 07.1981] 18R#..RA40; 2T#..TA40 |
90033-41020 |
from US $2.18 |
||
|
12101B
|
12101B
90430-18244
Gasket(For Oil Pan Drain Plug)
[08.1977 - 07.1981] 18R#..RA40; 2T#..TA40 |
90430-18244 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[08.1977 - 07.1981] 18R#..RA40; 2T#..TA40 |
90430-18023 |
from US $1.03 |
||
|
12151
|
12151
12151-25010 Gasket, Oil Pan[08.1977 - 07.1981] 2T#..TA40 |
12151-25010 |
US $24.36 |
||
|
15301
|
15301
15301-88260
Gage Sub-Assy, Oil Level
[08.1977 - 07.1981] 2TG..TA40 |
15301-88260 |
— | ||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
