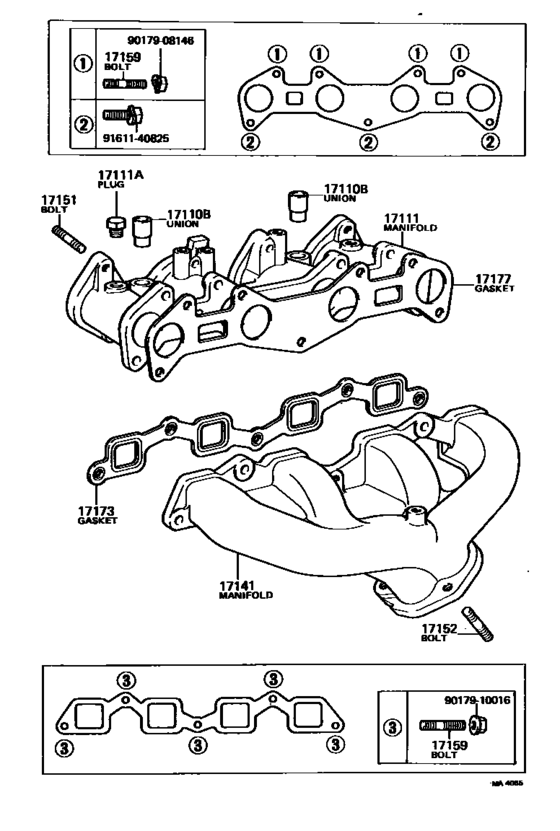

Manifold ([08.1979 - ] (7908- )2TG) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- General
- Frame
- TA40
- grade
- GT
- body
- LB
- ENGINE
- 2TG
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17110B
|
17110B
90072-40606 Union(For Ventilation Hose To Manifold)[08.1977 - 07.1981] 2TG..TA40 |
90072-40606 |
US $2.91 |
||
|
17111
|
17111
17111-88220
Manifold, Intake
[08.1977 - 08.1979] 2TG..TA40 |
17111-88220 |
— | ||
|
17111
|
17111
17111-88222 Manifold, IntakeINTAKE [08.1979 - 07.1981] 2TG..TA40 |
17111-88222 |
US $486.30 |
||
|
17111A
|
17111A
90072-34107
Plug, W/head Taper Screw, No.1
[08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
90072-34107 |
— | ||
| replacement | |||||
|
17111A
|
17111A
90345-51006 Plug, W/head Taper Screw, No.2[08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
90345-51006 |
from US $0.87 |
||
|
17141
|
17141
17141-26011 Manifold, ExhaustEXHAUST [08.1977 - 12.1977] 2T#..TA40 |
17141-26011 |
US $272.27 |
||
| replacement | |||||
|
17141
|
17141
17141-26012 Manifold, ExhaustEXHAUST [08.1977 - 12.1977] 2T#..TA40 |
17141-26012 |
US $281.01 |
||
|
17141
|
17141
17141-26012 Manifold, ExhaustEXHAUST [12.1977 - 07.1981] 2T#..TA40 |
17141-26012 |
US $281.01 |
||
|
17151
|
17151
90116-08110 Bolt, Stud(For Fuel Pump)STUD(FOR MANIFOLD TO CARBURETOR) [08.1977 - 07.1981] 18RG..RA40 L=43,S=12&12; 2TG..TA40 L=43,S=12&12 |
90116-08110 |
US $2.77 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[07.1981 - 07.1981] 18RG..RA40 L=46.5,S=14&20; 2TG..TA40 L=46.5,S=14&20 |
90116-10058 |
from US $2.32 |
||
|
17152
|
17152
92122-41022
Bolt, Stud(For Manifold To Exhaust Pipe)
[08.1977 - 07.1981] 18RG..RA40 L=37,S=15&15; 2TG..TA40 L=37,S=15&15 |
92122-41022 |
— | ||
|
17159
|
17159
90116-08015 Bolt, Stud(For Timing Gear Cover)[01.1979 - 07.1981] 18RG..RA40 L=37,S=13.5&13.5; 2TG..TA40 L=37,S=13.5&13.5 |
90116-08015 |
US $3.76 |
||
|
17159
|
17159
92122-61025 Bolt, Stud(For Manifold To Cylinder Head)[08.1977 - 07.1981] 18RG..RA40 L=40,S=15&15; 2T#..TA40 L=40,S=15&15 |
92122-61025 |
US $4.12 |
||
|
17173
|
17173
17173-25012
Gasket, Exhaust Manifold To Head
[08.1977 - 07.1981] 2T#..TA40 |
17173-25012 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-25013 Gasket, Exhaust Manifold To Head[08.1977 - 07.1981] 2T#..TA40 |
17173-25013 |
US $8.56 |
||
|
17177
|
17177
17177-88220
Gasket, Intake Manifold To Head, No.1
[08.1977 - 07.1981] 2TG..TA40 |
17177-88220 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-88222
Gasket, Intake Manifold To Head, No.1
[08.1977 - 07.1981] 2TG..TA40 |
17177-88222 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9161140825
|
9161140825
91611-40825
Bolt(For Clutch Release Cylinder Setting)
|
91611-40825 |
— | ||
| replacement | |||||
|
9161140825
|
9161140825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
