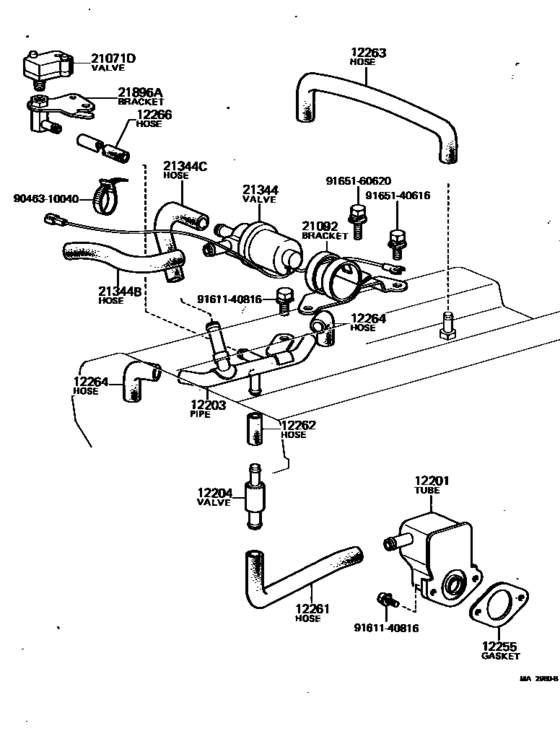

Ventilation Hose ([08.1977 - ] (7708- )2TG) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- General
- Frame
- TA40
- grade
- GT
- body
- LB
- ENGINE
- 2TG
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12201
|
12201
12201-25010
Tube Sub-Assy, Ventilation
[08.1977 - 07.1981] 2TG..TA40 |
12201-25010 |
— | ||
|
12203
|
12203
12203-88225
Pipe Sub-Assy, Ventilation
[08.1977 - 07.1981] 2TG..TA40 |
12203-88225 |
— | ||
|
12204
|
12204
12204-88250
Valve Sub-Assy, Ventilation
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
12204-88250 |
— | ||
|
12204
|
12204
12204-88251
Valve Sub-Assy, Ventilation
[08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
12204-88251 |
— | ||
|
12255
|
12255
12255-25010
Gasket, Ventilation
[08.1977 - 07.1981] 2TG..TA40 |
12255-25010 |
— | ||
|
12261
|
12261
12262-88220
Hose, Ventilation
[08.1977 - 07.1981] 2TG..TA40 |
12262-88220 |
— | ||
|
12262
|
12262
90072-44552
Hose, Ventilation, No.2
[08.1977 - 08.1979] 2TG..TA40 |
90072-44552 |
— | ||
|
12262
|
12262
90445-15004
Hose, Ventilation, No.2
[08.1979 - 07.1981] 2TG..TA40 |
90445-15004 |
— | ||
|
12263
|
12263
12261-88210
Hose, Ventilation, No.3
[08.1977 - 05.1978] 2TG..TA40 |
12261-88210 |
— | ||
| replacement | |||||
|
12263
|
12263
12261-88220
Hose, Ventilation, No.3
[08.1977 - 05.1978] 2TG..TA40 |
12261-88220 |
— | ||
|
12263
|
12263
12261-88220
Hose, Ventilation, No.3
[05.1978 - 07.1981] 2TG..TA40 |
12261-88220 |
— | ||
|
12264
|
12264
12264-88220
Hose, Ventilation, No.4
[08.1977 - 07.1981] 2TG..TA40 |
12264-88220 |
— | ||
|
12266
|
12266
90072-44554
Hose, Ventilation Pipe To Thermostatic Valve
[08.1977 - 07.1981] 2TG..TA40 |
90072-44554 |
— | ||
|
21071D
|
21071D
21071-41010
Valve Sub-Assy, Thermostatic(For Ventilation Hose)
[08.1977 - 08.1979] 2TG..TA40 |
21071-41010 |
— | ||
|
21092
|
21092
21092-88232
Bracket Sub-Assy, Throttle Solenoid Valve
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21092-88232 |
— | ||
|
21344
|
21344
21344-88250
Valve, Throttle Solenoid
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21344-88250 |
— | ||
|
21344B
|
21344B
17921-88220
Hose, No.1(Solenoid Valve To 3 Way)
[08.1977 - 07.1981] 2TG..TA40 |
17921-88220 |
— | ||
|
21344C
|
21344C
17922-88220
Hose, No.2(Solenoid Valve To Ventilation Pipe)
[08.1977 - 07.1981] 2TG..TA40 |
17922-88220 |
— | ||
|
21896A
|
21896A
21896-88220
Bracket, Thermostatic Valve(For Ventilation Hose)
[08.1977 - 08.1979] 2TG..TA40 |
21896-88220 |
— | ||
|
21896A
|
21896A
21896-88250
Bracket, Thermostatic Valve(For Ventilation Hose)
[08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
21896-88250 |
— | ||
|
9046310040
|
9046310040
90463-10040
New Genuine Part
|
90463-10040 |
— | ||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9165160620
|
9165160620
91651-60620 BOLTWWASHER |
91651-60620 |
US $1.43 |
||
