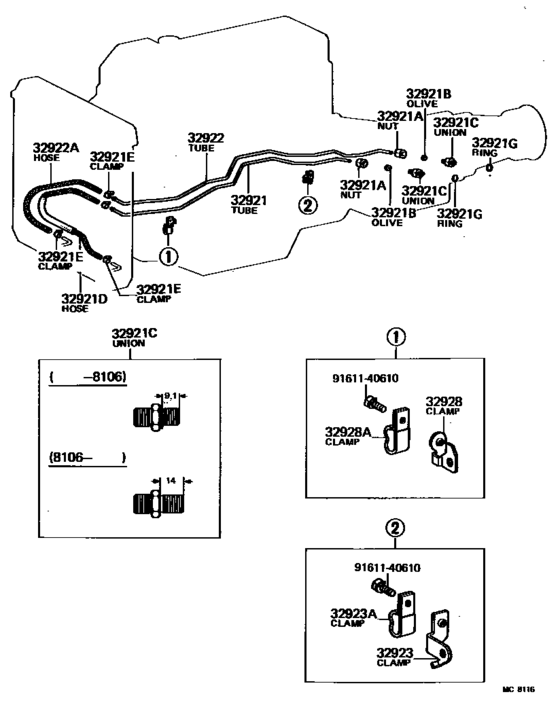

Oil Cooler & Tube (Atm) ([08.1977 - ] (7708- )TA40..3FC) Diagram Toyota CELICA
- Year
- 1977 - 1980
- Sales region
- Europe
- Frame
- TA40
- grade
- LT
- body
- CP
- ENGINE
- 2T
- TRANSMISSION
- ATM
- From
- 08.1977
- To
- 08.1980
- Gear Shift Type
- 3FC
- Driver's Position
- RHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32921
|
32921
32921-12030
Tube, Oil Cooler Inlet, No.1
[08.1977 - 11.1980] TA40..3FC |
32921-12030 |
— | ||
|
32921
|
32921
32921-20140
Tube, Oil Cooler Inlet, No.1
[11.1980 - 07.1981] TA40..3FC |
32921-20140 |
— | ||
|
32921A
|
32921A
90402-13041 Nut, Union(For Fuel Pipe)[08.1977 - 07.1981] RA40,TA40..3FC |
90402-13041 |
US $3.76 |
||
|
32921B
|
32921B
96395-71400 Olive(For Fuel Pipe)[08.1977 - 07.1981] RA40,TA40..3FC |
96395-71400 |
US $3.76 |
||
|
32921C
|
32921C
90404-13003 Union(For Oil Cooler Tube)[06.1981 - 07.1981] RA40,TA40..3FC |
90404-13003 |
US $7.28 |
||
|
32921C
|
32921C
90404-13265 Union(For Oil Cooler Tube)[08.1977 - 06.1981] RA40,TA40..3FC |
90404-13265 |
US $21.84 |
||
|
32921D
|
32921D
32941-14012 Hose(For Oil Cooler Inlet)[08.1977 - 09.1978] TA40..3FC L=790 |
32941-14012 |
US $78.62 |
||
| replacement | |||||
|
32921D
|
32921D
32941-14013 Hose(For Oil Cooler Inlet)[08.1977 - 09.1978] TA40..3FC L=790 |
32941-14013 |
US $78.62 |
||
|
32921D
|
32921D
32941-14013 Hose(For Oil Cooler Inlet)[09.1978 - 07.1981] TA40..3FC L=790 |
32941-14013 |
US $78.62 |
||
|
32921E
|
32921E
90460-01075 Clamp, Hose(For Oil Cooler)HOSE(FOR OIL COOLER) [08.1977 - 03.1978] RA40,TA40..3FC |
90460-01075 |
US $7.28 |
||
| replacement | |||||
|
32921E
|
32921E
90460-20004 Clamp, Hose(For Oil Cooler)[08.1977 - 03.1978] RA40,TA40..3FC |
90460-20004 |
US $3.14 |
||
|
32921E
|
32921E
90460-14085
Clamp, Hose(For Oil Cooler)
[03.1978 - 07.1981] RA40,TA40..3FC |
90460-14085 |
— | ||
| replacement | |||||
|
32921E
|
32921E
90460-20004 Clamp, Hose(For Oil Cooler)[03.1978 - 07.1981] RA40,TA40..3FC |
90460-20004 |
US $3.14 |
||
|
32921G
|
32921G
90301-10189 Ring, O(For Oil Cooler Tube Union)[08.1977 - 07.1981] RA40,TA40..3FC |
90301-10189 |
from US $2.63 |
||
|
32922
|
32922
32922-12030
Tube, Oil Cooler Outlet, No.1
[08.1977 - 11.1980] TA40..3FC |
32922-12030 |
— | ||
|
32922
|
32922
32922-20140 Tube, Oil Cooler Outlet, No.1OIL COOLER OUTLET, NO.1 [11.1980 - 07.1981] TA40..3FC |
32922-20140 |
US $21.26 |
||
|
32922A
|
32922A
32942-14012 Hose(For Oil Cooler Outlet)[08.1977 - 07.1981] TA40..3FC L=590 |
32942-14012 |
US $56.20 |
||
| replacement | |||||
|
32922A
|
32922A
32942-14013 Hose(For Oil Cooler Outlet)[08.1977 - 07.1981] TA40..3FC L=590 |
32942-14013 |
US $50.96 |
||
|
32923
|
32923
90461-08039 Clamp, Automatic Transmission Oil Cooler Tube[08.1977 - 07.1981] TA40..3FC |
90461-08039 |
US $3.35 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.80 |
||
