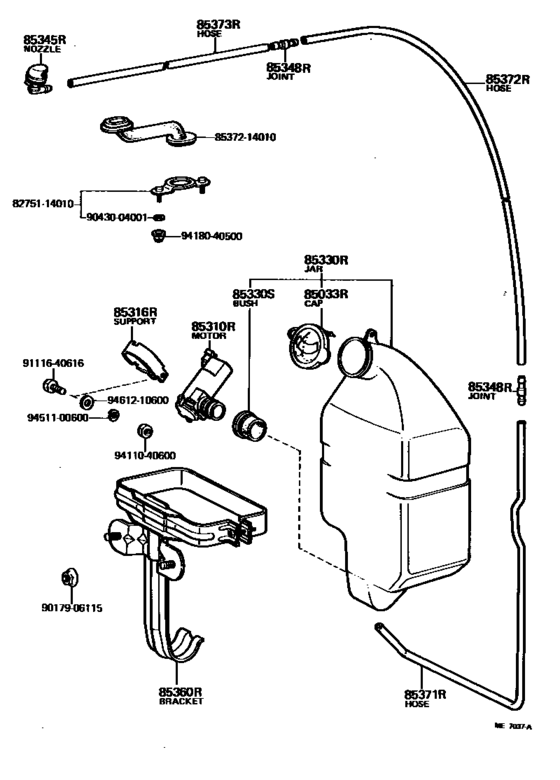

Rear Washer ([08.1977 - ] (7708- )LB) Diagram Toyota CELICA
- Year
- 1977 - 1980
- Sales region
- Europe
- Frame
- TA40
- grade
- GT
- body
- LB
- ENGINE
- 2TG
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 08.1980
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033R
|
85033R
85033-36120 Cap Assy, Windshield Washer[08.1977 - 07.1981] RA40,TA40..LB |
85033-36120 |
US $0.55 |
||
|
85310R
|
85310R
85310-20100
Motor And Pump Assy, Windshield Washer
[08.1977 - 07.1981] RA40,TA40..LB |
85310-20100 |
— | ||
| replacement | |||||
|
85310R
|
85310R
85310-22080 Motor And Pump Assy, Windshield Washer[08.1977 - 07.1981] RA40,TA40..LB |
85310-22080 |
from US $49.97 |
||
|
85316R
|
85316R
85316-23010
Support, Rear Washer Motor
[08.1977 - 07.1981] RA40,TA40..LB |
85316-23010 |
— | ||
|
85330R
|
85330R
85330-23011
Jar Assy, Rear Washer
[08.1977 - 07.1981] RA40,TA40..LB |
85330-23011 |
— | ||
|
85330S
|
85330S
90099-32089 Bush, Headlamp Cleaner Washer Jar[08.1977 - 07.1981] RA40,TA40..LB |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330S
|
85330S
90099320891
Grommet
[08.1977 - 07.1981] RA40,TA40..LB |
90099320891 |
— | ||
|
85330S
|
85330S
90068-32002 Bush, Windshield Washer Jar[08.1977 - 07.1981] RA40,TA40..LB |
90068-32002 |
US $7.46 |
||
|
85345R
|
85345R
85035-14060
Nozzle, Rear Washer
[08.1977 - 07.1981] RA40,TA40..LB |
85035-14060 |
— | ||
|
85348R
|
85348R
85355-87201
Joint, Windshield Washer Hose, No.1
[08.1977 - 07.1981] RA40,TA40..LB 2 WAY TYPE |
85355-87201 |
— | ||
| replacement | |||||
|
85348R
|
85348R
85349-89122 Valve Sub-Assy, Washer[08.1977 - 07.1981] RA40,TA40..LB 2 WAY TYPE |
85349-89122 |
from US $1.25 |
||
|
85360R
|
85360R
85360-14020
Bracket Assy, Rear Washer
[08.1977 - 07.1981] RA40,TA40..LB |
85360-14020 |
— | ||
|
85371R
|
85371R
90446-06236 Hose, Windshield Washer (From Motor To Joint)REAR WASHER (FROM MOTOR TO JOINT) [08.1977 - 07.1981] RA40,TA40..LB *H,L=450 |
90446-06236 |
US $2.33 |
||
| replacement | |||||
|
85371R
|
85371R
90446-06013 Hose, Windshield Washer (From Motor To Joint)[08.1977 - 07.1981] RA40,TA40..LB *H,L=450 |
90446-06013 |
from US $0.70 |
||
|
85372R
|
85372R
90446-06055
Hose, Windshield Washer (From Motor To Joint)
[08.1977 - 07.1981] RA40,TA40..LB L=1300 |
90446-06055 |
— | ||
| replacement | |||||
|
85372R
|
85372R
90446-06006 Hose, Windshield Washer (From Motor To Joint)[08.1977 - 07.1981] RA40,TA40..LB L=1300 |
90446-06006 |
from US $6.36 |
||
|
85373R
|
85373R
90099-33298
Hose, Rear Washer (From Motor To Joint)
[08.1977 - 07.1981] RA40,TA40..LB *H,L=320 |
90099-33298 |
— | ||
|
8275114010
|
8275114010
82751-14010
Block, Driver Side Relay
|
82751-14010 |
— | ||
|
8537214010
|
8537214010
85372-14010
Hose, Windshield Washer (from Joint To Joint), No.1
|
85372-14010 |
— | ||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9043004001
|
9043004001
90430-04001 New Genuine Part |
90430-04001 |
US $2.48 |
||
|
9111640616
|
9111640616
91116-40616 New Genuine Part |
91116-40616 |
US $2.18 |
||
| replacement | |||||
|
9111640616
|
9111640616
91116-50616 New Genuine Part |
91116-50616 |
US $1.60 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
|
9418040500
|
9418040500
94180-40500 Nut, Tilt Roof Housing |
94180-40500 |
US $1.43 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
|
9461210600
|
9461210600
94612-10600 New Genuine Part |
94612-10600 |
US $4.30 |
||
