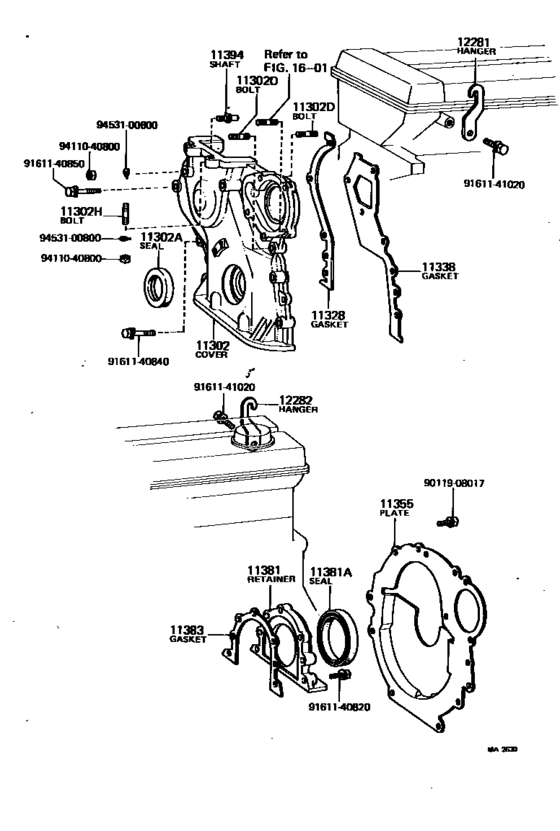

Timing Gear Cover & Rear End Plate ([08.1977 - 08.1979] (7708-7908)2TG) Diagram Toyota CELICA
- Year
- 1977 - 1980
- Sales region
- Europe
- Frame
- TA40
- grade
- GT
- body
- LB
- ENGINE
- 2TG
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 08.1980
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11302
|
11302
11321-88220
Cover Sub-Assy, Timing Chain Or Belt
[08.1977 - 04.1980] 2TG..TA40 |
11321-88220 |
— | ||
| replacements | |||||
|
11302
|
11302
91611-60835 Bolt(For Clutch Release Cylinder Setting)[08.1977 - 04.1980] 2TG..TA40 |
91611-60835 |
from US $1.61 |
||
|
11302
|
11302
11321-88221
Cover Sub-Assy, Timing Chain Or Belt
[08.1977 - 04.1980] 2TG..TA40 |
11321-88221 |
— | ||
|
11302
|
11302
11321-88221
Cover Sub-Assy, Timing Chain Or Belt
[04.1980 - 07.1981] 2TG..TA40 |
11321-88221 |
— | ||
|
11302A
|
11302A
90311-38013 Seal, Oil(For Camshaft Housing)[08.1979 - 07.1981] 2T#..TA40 HTC 38.5 58 11 |
90311-38013 |
US $7.35 |
||
|
11302A
|
11302A
90311-38111
Seal, Oil(For Timing Chain Or Belt Cover)
[08.1977 - 08.1979] 2TG..TA40 HTC3 38.5 58 11 |
90311-38111 |
— | ||
| replacement | |||||
|
11302A
|
11302A
90311-38013 Seal, Oil(For Camshaft Housing)[08.1977 - 08.1979] 2TG..TA40 HTC3 38.5 58 11 |
90311-38013 |
US $7.35 |
||
|
11302D
|
11302D
90116-08015 Bolt, Stud(For Timing Gear Cover)[08.1977 - 07.1981] 2TG..TA40 L=37,S=13.5&13.5 |
90116-08015 |
US $3.76 |
||
|
11302D
|
11302D
90116-08057 Bolt, Stud(For Timing Gear Cover)[08.1977 - 01.1979] 2T#..TA40 L=28,S=13&13 |
90116-08057 |
US $2.77 |
||
|
11302H
|
11302H
90072-11618 Bolt, Stud(For Timing Gear Cover)[08.1977 - 07.1981] 2TG..TA40 L=88,S=10&10 |
90072-11618 |
US $3.06 |
||
|
11328
|
11328
11328-88220
Gasket, Timing Gear Or Chain Cover
[08.1977 - 07.1981] 2TG..TA40 |
11328-88220 |
— | ||
| replacement | |||||
|
11328
|
11328
11328-88221
Gasket, Timing Gear Or Chain Cover
[08.1977 - 07.1981] 2TG..TA40 |
11328-88221 |
— | ||
|
11338
|
11338
11338-88220
Gasket, Timing Chain Cover, No.2
[08.1977 - 07.1981] 2TG..TA40 |
11338-88220 |
— | ||
| replacement | |||||
|
11338
|
11338
11338-88221
Gasket, Timing Chain Cover, No.2
[08.1977 - 07.1981] 2TG..TA40 |
11338-88221 |
— | ||
|
11355
|
11355
11355-25011 Plate, Rear EndREAR END [08.1977 - 08.1980] 2T#..TA40..MTM |
11355-25011 |
US $51.25 |
||
| replacement | |||||
|
11355
|
11355
11355-25012
Plate, Rear End
[08.1977 - 08.1980] 2T#..TA40..MTM |
11355-25012 |
— | ||
|
11355
|
11355
11355-25012
Plate, Rear End
[08.1980 - 07.1981] 2T#..TA40..MTM |
11355-25012 |
— | ||
|
11381
|
11381
11381-25010
Retainer, Engine Rear Oil Seal
[08.1977 - 07.1981] 2T#..TA40 |
11381-25010 |
— | ||
|
11381A
|
11381A
90311-75113
Seal, Engine Rear Oil
[08.1977 - 07.1981] 2T#..TA40 HTC75 100 13 |
90311-75113 |
— | ||
| replacement | |||||
|
11381A
|
11381A
90311-75009 Seal, Engine Rear Oil[08.1977 - 07.1981] 2T#..TA40 HTC75 100 13 |
90311-75009 |
from US $21.34 |
||
|
11383
|
11383
11383-25010
Gasket, Engine Rear Oil Seal Retainer
[08.1977 - 07.1981] 2T#..TA40 |
11383-25010 |
— | ||
|
11394
|
11394
11394-34010
Shaft, Chain Tenshioner
[08.1977 - 07.1981] 18R#..RA40; 2TG..TA40 |
11394-34010 |
— | ||
|
12281
|
12281
12281-88220 Hanger, Engine, No.1ENGINE, NO.1 [08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
12281-88220 |
US $12.52 |
||
|
12282
|
12282
12281-88220 Hanger, Engine, No.1ENGINE, NO.1 [08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
12281-88220 |
US $12.52 |
||
|
9011908017
|
9011908017
90119-08017 Bolt, W/Washer |
90119-08017 |
US $1.40 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161140840
|
9161140840
91611-40840
New Genuine Part
|
91611-40840 |
— | ||
| replacement | |||||
|
9161140840
|
9161140840
91611-60840 BOLT |
91611-60840 |
US $2.33 |
||
|
9161140850
|
9161140850
91611-40850
Bolt(For Rocker Support Set)
|
91611-40850 |
— | ||
| replacement | |||||
|
9161140850
|
9161140850
91611-60850 Bolt(For Rocker Support Set) |
91611-60850 |
US $2.15 |
||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.86 |
||
