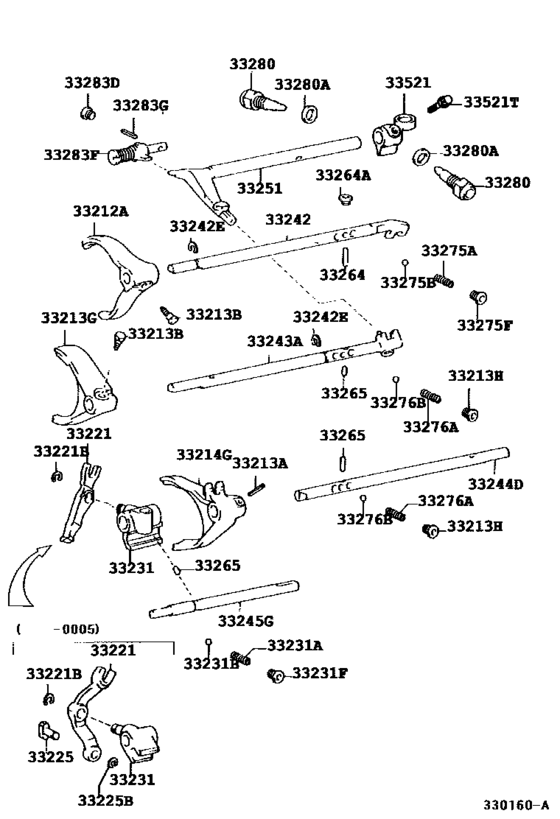

Gear Shift Fork & Lever Shaft (Mtm) ([09.1996 - ] W55,W57 (9609- )GX100..5F) Diagram Toyota CHASER
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- GX100
- grade
- TOU
- ENGINE
- 1GFE
- TRANSMISSION
- MTM
- From
- 08.1998
- To
- 06.2001
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33212A
|
33212A
33212-30050 Fork, Gear Shift, No.1[09.1996 -] GX100..5F |
33212-30050 |
US $35.47 |
||
|
33213A
|
33213A
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[09.1996 -] GX100,JZX100..5F |
90254-05016 |
from US $1.95 |
||
|
33213B
|
33213B
90105-06143 Bolt(For Shift Fork Set)[09.1996 -] GX100..5F |
90105-06143 |
US $1.10 |
||
|
33213G
|
33213G
33213-30060 Fork, Gear Shift, No.2[09.1996 -] GX100..5F |
33213-30060 |
from US $35.90 |
||
|
33213H
|
33213H
90341-12018 Plug, W/head Straight Screw, No.2[08.1998 -] GX100..5F |
90341-12018 |
US $2.48 |
||
|
33214G
|
33214G
33230-30011 Fork, Gear Shift, No.3[09.1996 -] GX100..5F |
33230-30011 |
US $45.72 |
||
|
33221
|
33221
33221-22020
Arm, Reverse Shift
[09.1996 - 10.2000] GX100..5F |
33221-22020 |
— | ||
|
33221
|
33221
33221-22021 Arm, Reverse Shift[10.2000 -] GX100..5F |
33221-22021 |
US $7.28 |
||
|
33221B
|
33221B
96160-00800 Ring, E(For Counter Weight)[09.1996 -] GX100..5F |
96160-00800 |
from US $0.88 |
||
|
33225
|
33225
33225-22020
Shoe, Shift Arm
[09.1996 - 10.2000] GX100..5F |
33225-22020 |
— | ||
|
33225B
|
33225B
96160-00600 Ring, E(For Clutch Pedal Pawl)[09.1996 - 10.2000] GX100..5F |
96160-00600 |
from US $0.84 |
||
|
33231
|
33231
33231-22040 Head, Reverse Shift[09.1996 - 10.2000] GX100..5F |
33231-22040 |
US $20.24 |
||
|
33231
|
33231
33231-22041 Head, Reverse Shift[10.2000 -] GX100..5F |
33231-22041 |
from US $38 |
||
|
33231A
|
33231A
90501-10052 Spring, Reverse Shift Restrict[09.1996 -] GX100..5F |
90501-10052 |
US $1.16 |
||
|
33231B
|
33231B
90360-08009 Ball, Reverse Shift Restrict[09.1996 -] GX100..5F |
90360-08009 |
US $1.40 |
||
|
33231F
|
33231F
90341-10016 Plug, W/head Straight Screw, No.2[09.1996 -] GX100..5F |
90341-10016 |
US $1.31 |
||
|
33242
|
33242
33242-30070 Shaft, Gear Shift Fork, No.1[09.1996 - 06.2001] GX100..5F |
33242-30070 |
US $57.08 |
||
|
33242E
|
33242E
90520-12003 Ring(For Reverse Shift Head)[09.1996 -] GX100..5F |
90520-12003 |
from US $0.92 |
||
|
33243A
|
33243A
33243-30130
Shaft Assy, Gear Shift Fork, No.2
[09.1996 - 06.2001] GX100..5F |
33243-30130 |
— | ||
|
33244D
|
33244D
33244-30050
Shaft, Reverse Shift Fork
[09.1996 - 06.2001] GX100..5F |
33244-30050 |
— | ||
|
33245G
|
33245G
33245-22011 Shaft, Gear Shift Fork, No.4[09.1996 -] GX100..5F |
33245-22011 |
US $25.33 |
||
|
33251
|
33251
33251-22070
Lever, Shift & Select
[09.1996 -] GX100..5F |
33251-22070 |
— | ||
| replacements | |||||
|
33251
|
33251
33251-22071 Lever, Shift & Select[09.1996 -] GX100..5F |
33251-22071 |
US $48.92 |
||
|
33251
|
33251
90109-08305 Pin Or Bolt (For Shift Lever Housing)[09.1996 -] GX100..5F |
90109-08305 |
US $1.43 |
||
|
33264
|
33264
33264-22010 Pin, Or Ball, Shift Inter Lock, No.1[09.1996 -] GX100..5F |
33264-22010 |
US $2.18 |
||
|
33264A
|
33264A
90341-10065 Plug, Straight, No.1[09.1996 -] GX100..5F 長さ＝７．５，外径＝１５ |
90341-10065 |
US $3.94 |
||
|
33265
|
33265
33265-22010 Pin, Shift Inter Lock, No.2[09.1996 -] GX100..5F 長さ＝１１．２，外径＝４ |
33265-22010 |
US $1.89 |
||
|
33265
|
33265
33266-22010 Pin, Shift Inter Lock, No.2[09.1996 -] GX100..5F 長さ＝１３．６，外径＝６ |
33266-22010 |
US $2.04 |
||
|
33265
|
33265
90250-06007 Pin, Shift Inter Lock, No.2[09.1996 -] GX100..5F 長さ＝８．６，外径＝６ |
90250-06007 |
from US $1.11 |
||
|
33275A
|
33275A
90501-14123 Spring, Compression (For Shift Detent Ball Low Side)[09.1996 - 06.2001] GX100..5F 長さ＝２０．２ |
90501-14123 |
US $0.73 |
||
|
33275B
|
33275B
90360-10003 Ball(For Transmission Oil Pump Cover)[09.1996 -] GX100..5F |
90360-10003 |
from US $1.19 |
||
|
33275F
|
33275F
90341-12014 Plug, W/head Straight Screw, No.1(For Cylinder Block)[09.1996 -] GX100..5F |
90341-12014 |
from US $1.97 |
||
|
33276A
|
33276A
90501-14123 Spring, Compression (For Shift Detent Ball Low Side)[09.1996 - 06.2001] GX100..5F |
90501-14123 |
US $0.73 |
||
|
33276B
|
33276B
90360-10003 Ball(For Transmission Oil Pump Cover)[09.1996 -] GX100..5F |
90360-10003 |
from US $1.19 |
||
|
33280
|
33280
33280-30041 Pin Assy, Reverse Restrict[09.1996 -] GX100..5F 右側 |
33280-30041 |
US $12.08 |
||
|
33280
|
33280
33280-30051 Pin Assy, Reverse Restrict[09.1996 -] GX100,JZX100..5F 左側 |
33280-30051 |
US $20.16 |
||
|
33280A
|
33280A
90430-18008 Gasket[09.1996 -] GX100..5F |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33280A
|
33280A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[09.1996 -] GX100..5F |
90430-T0021 |
US $1.01 |
||
|
33283D
|
33283D
90341-10065 Plug, Straight, No.1[09.1996 -] GX100..5F |
90341-10065 |
US $3.94 |
||
|
33283F
|
33283F
33280-30061
Pin Assy, Reverse Restrict
[09.1996 -] GX100..5F |
33280-30061 |
— | ||
|
33283G
|
33283G
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[09.1996 -] GX100..5F |
90254-05016 |
from US $1.95 |
||
|
33521
|
33521
33521-22210
Housing, Shift Lever
[09.1996 -] GX100..5F |
33521-22210 |
— | ||
|
33521T
|
33521T
90105-08079 Bolt(For 5Th Shift Arm)[09.1996 -] GX100..5F |
90105-08079 |
from US $0.82 |
||
