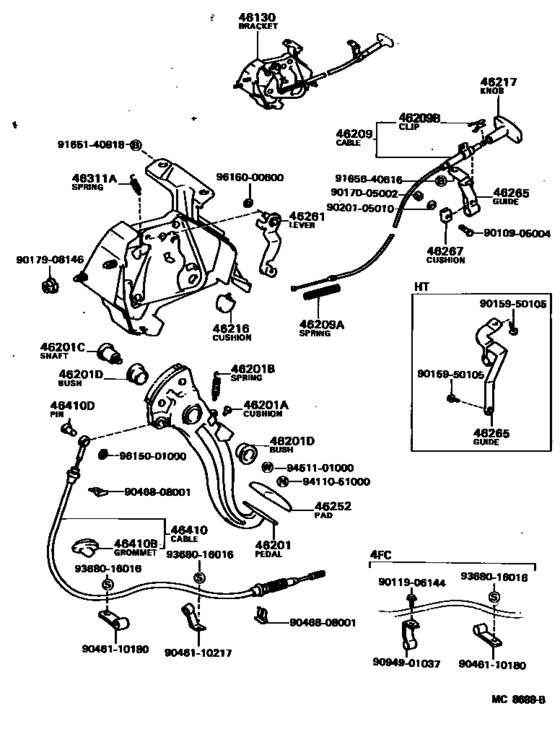

Parking Brake & Cable ([08.1982 - ] (8208- )4FC) Diagram Toyota CHASER
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- GX61
- grade
- SXL
- body
- SED
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 08.1982
- To
- 07.1984
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46130
|
46130
46130-22010 Bracket Assy, Parking Brake Pedal[08.1982 - 09.1982] GX61,LX6#,MX61,SX60..SED..4FC |
46130-22010 |
US $165.98 |
||
| replacements | |||||
|
46130
|
46130
46130-22011 Bracket Assy, Parking Brake Pedal[08.1982 - 09.1982] GX61,LX6#,MX61,SX60..SED..4FC |
46130-22011 |
US $165.98 |
||
|
46130
|
46130
46217-22021 Knob, Parking Brake Release Rod[08.1982 - 09.1982] GX61,LX6#,MX61,SX60..SED..4FC |
46217-22021 |
US $20.82 |
||
|
46130
|
46130
46130-22011 Bracket Assy, Parking Brake Pedal[09.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED..4FC |
46130-22011 |
US $165.98 |
||
|
46201
|
46201
46201-22130 Pedal Sub-Assy, Parking BrakePARKING BRAKE [08.1982 - 07.1984] GX61,LX6#,MX61,SX60..4FC |
46201-22130 |
US $132.50 |
||
|
46201A
|
46201A
90541-01001 Cushion(For Parking Brake Pedal)[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..4FC |
90541-01001 |
US $3.35 |
||
|
46201B
|
46201B
90507-14010 Spring, Tension[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..4FC |
90507-14010 |
US $4.66 |
||
|
46201C
|
46201C
90109-10033 Shaft, Pedal[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..4FC |
90109-10033 |
US $4.95 |
||
|
46201D
|
46201D
90386-16022 Bush, Control Link[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..4FC |
90386-16022 |
US $2.33 |
||
|
46209
|
46209
46209-22020
Cable Sub-Assy, Parking Brake Release
[08.1982 - 09.1982] GX61,LX6#,MX61,SX60..4FC |
46209-22020 |
— | ||
| replacements | |||||
|
46209
|
46209
46209-22021 Cable Sub-Assy, Parking Brake Release[08.1982 - 09.1982] GX61,LX6#,MX61,SX60..4FC |
46209-22021 |
US $32.76 |
||
|
46209
|
46209
46217-22021 Knob, Parking Brake Release Rod[08.1982 - 09.1982] GX61,LX6#,MX61,SX60..4FC |
46217-22021 |
US $20.82 |
||
|
46209
|
46209
46209-22021 Cable Sub-Assy, Parking Brake Release[09.1982 - 07.1984] GX61,LX6#,MX61,SX60..4FC |
46209-22021 |
US $32.76 |
||
|
46209A
|
46209A
90501-08030 Spring, Compression(For Parking Brake Release Cable)[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..4FC |
90501-08030 |
US $2.77 |
||
|
46209B
|
46209B
90468-03013 Clip(For Parking Brake Release Cable)[08.1982 - 09.1982] GX61,LX6#,MX61,SX60..4FC |
90468-03013 |
US $1.89 |
||
|
46209B
|
46209B
90468-05053 Clip(For Parking Brake Release Cable)[09.1982 - 07.1984] GX61,LX6#,MX61,SX60..4FC |
90468-05053 |
US $3.64 |
||
|
46216
|
46216
90541-07008 Cushion, Parking Pedal[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..4FC |
90541-07008 |
US $4.66 |
||
|
46217
|
46217
46217-10020-16 Knob, Parking Brake Release RodPARKING BRAKE RELEASE ROD [09.1980 - 08.1982] GX61,MX61 BROWN,BROWN,TRIM4# |
46217-10020-16 |
US $3.35 |
||
| replacement | |||||
|
46217
|
46217
46217-10020-11 Knob, Parking Brake Release Rod (Black)[09.1980 - 08.1982] GX61,MX61 BROWN,BROWN,TRIM4# |
46217-10020-11 |
from US $4.48 |
||
|
46217
|
46217
46217-22020 Knob, Parking Brake Release Rod[08.1982 - 09.1982] GX61,LX6#,MX61,SX60..4FC |
46217-22020 |
US $20.82 |
||
| replacement | |||||
|
46217
|
46217
46217-22H00
Knob, Parking Brake Release Rod
[08.1982 - 09.1982] GX61,LX6#,MX61,SX60..4FC |
46217-22H00 |
— | ||
|
46217
|
46217
46217-22021 Knob, Parking Brake Release Rod[09.1982 - 07.1984] GX61,LX6#,MX61,SX60..4FC |
46217-22021 |
US $20.82 |
||
|
46252
|
46252
46252-20010 Pad, Parking Pedal[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..4FC |
46252-20010 |
from US $6.49 |
||
|
46261
|
46261
46261-30020 Lever, Parking Brake Release Intermediate[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..4FC |
46261-30020 |
US $10.48 |
||
|
46265
|
46265
46265-22010 Guide, Parking Brake Release RodPARKING BRAKE RELEASE ROD [08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED..4FC |
46265-22010 |
US $9.46 |
||
|
46267
|
46267
46266-30010 Cushion, Release Rod Guide Intermediate[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..4FC |
46266-30010 |
US $3.20 |
||
|
46311A
|
46311A
90506-07007 Spring(For Parking Brake Release Intermediate Lever)[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..4FC |
90506-07007 |
US $2.77 |
||
|
46410
|
46410
46410-22170 Cable Assy, Parking Brake, No.1PARKING BRAKE, NO.1 [08.1982 - 07.1984] GX61,LX6#,MX61,SX60..4FC |
46410-22170 |
US $64.50 |
||
|
46410B
|
46410B
90480-01022 Grommet(For Parking Brake Front Cable)[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..4FC |
90480-01022 |
US $7.13 |
||
|
46410D
|
46410D
90249-10012 Pin(For Parking Brake Front Cable)[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..4FC |
90249-10012 |
US $3.06 |
||
|
9010905004
|
9010905004
90109-05004 New Genuine Part |
90109-05004 |
US $4.95 |
||
|
9011906144
|
9011906144
90119-06144 Bolt, Hexagon (For Shift Lever Plate) |
90119-06144 |
US $0.61 |
||
|
9015950105
|
9015950105
90159-50105 SCREW |
90159-50105 |
from US $0.68 |
||
|
9017005002
|
9017005002
90170-05002 New Genuine Part |
90170-05002 |
US $0.87 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9020105010
|
9020105010
90201-05010 New Genuine Part |
90201-05010 |
US $1.60 |
||
|
9046110180
|
9046110180
90461-10180 New Genuine Part |
90461-10180 |
US $2.77 |
||
|
9046110217
|
9046110217
90461-10217 New Genuine Part |
90461-10217 |
US $2.91 |
||
|
9046808001
|
9046808001
90468-08001 CLIP |
90468-08001 |
US $3.76 |
||
|
9094901037
|
9094901037
90949-01037 New Genuine Part |
90949-01037 |
US $7.72 |
||
|
9165140818
|
9165140818
91651-40818 BOLT, W-WASHER |
91651-40818 |
from US $1.19 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9368016016
|
9368016016
93680-16016 New Genuine Part |
93680-16016 |
US $1.60 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $0.76 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
|
9615001000
|
9615001000
96150-01000 Ring, Snap(For Over Center Adjusting Rod) |
96150-01000 |
US $1.79 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.84 |
||
