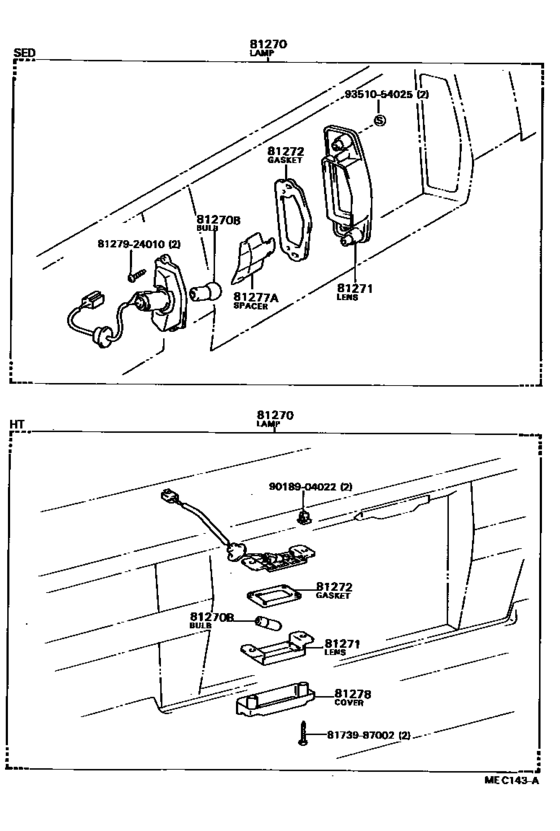

Rear License Plate Lamp ([08.1982 - ] (8208- )) Diagram Toyota CHASER
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- GX61
- grade
- SXL
- body
- SED
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 08.1982
- To
- 07.1984
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81270
|
81270
81270-20210 Lamp Assy, License Plate[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81270-20210 |
US $45.86 |
||
|
81270
|
81270
81270-29535 Lamp Assy, License PlateLICENSE PLATE [09.1980 - 08.1982] GX6#,LX60,MX61,RX6#,TX60 |
81270-29535 |
US $42.08 |
||
|
81270B
|
81270B
99132-11100 Bulb, Room Lamp, No.1[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED １２Ｖ １０Ｗ,12V 10W |
99132-11100 |
from US $2.69 |
||
|
81270B
|
81270B
99132-12050 Bulb (12V 5W)[09.1980 - 08.1982] GX6#,LX60,MX61,RX6#,TX60 １２Ｖ ５Ｗ,12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81270B
|
81270B
90080-81053 Bulb(For Clearance Lamp)[09.1980 - 08.1982] GX6#,LX60,MX61,RX6#,TX60 １２Ｖ ５Ｗ,12V 5W |
90080-81053 |
US $1.01 |
||
|
81271
|
81271
81271-20210
Lens, License Plate Lamp
[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81271-20210 |
— | ||
|
81271
|
81271
81271-22110
Lens, License Plate Lamp
[09.1980 - 08.1982] GX6#,LX60,MX61,RX6#,TX60 |
81271-22110 |
— | ||
|
81272
|
81272
81272-20210
Gasket, License Plate Lamp Lens
[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81272-20210 |
— | ||
|
81272
|
81272
81272-22110 Gasket, License Plate Lamp Lens[09.1980 - 08.1982] GX6#,LX60,MX61,RX6#,TX60 |
81272-22110 |
US $3.79 |
||
|
81277A
|
81277A
81277-20210
Spacer, License Plate Lamp Rim And Lens
[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81277-20210 |
— | ||
|
81278
|
81278
81276-22110
Cover, License Plate Lamp
[09.1980 - 08.1982] GX6#,LX60,MX61,RX6#,TX60 |
81276-22110 |
— | ||
|
8127924010
|
8127924010
81279-24010 Screw, Side Turn Signal Lamp |
81279-24010 |
US $1.79 |
||
|
8173987002
|
8173987002
81739-87002
New Genuine Part
|
81739-87002 |
— | ||
|
9018904022
|
9018904022
90189-04022 CLIP |
90189-04022 |
from US $1.25 |
||
|
9351054025
|
9351054025
93510-54025 New Genuine Part |
93510-54025 |
US $1.60 |
||
