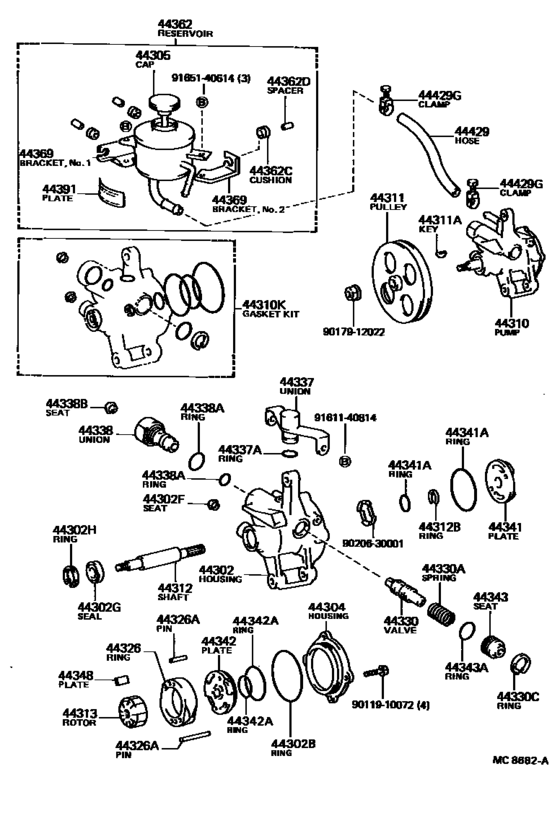

Vane Pump & Reservoir (Power Steering) ([08.1982 - ] (8208- )TWC) Diagram Toyota CHASER
- Year
- 1983 - 1984
- Sales region
- Japan
- Frame
- GX61
- grade
- AVT
- body
- SED
- ENGINE
- 1GGEU
- TRANSMISSION
- ATM
- From
- 02.1983
- To
- 07.1984
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44302
|
44302
44302-22030 Housing Sub-Assy, Vane Pump, Front[08.1982 - 07.1984] GX61..TWC |
44302-22030 |
US $387.30 |
||
| replacement | |||||
|
44302
|
44302
44302-22031 Housing Sub-Assy, Vane Pump, Front[08.1982 - 07.1984] GX61..TWC |
44302-22031 |
US $384.38 |
||
|
44302B
|
44302B
90301-63002 Ring, O, No.1(For Vane Pump Housing)[08.1982 - 07.1984] GX61..TWC |
90301-63002 |
US $4.95 |
||
|
44302F
|
44302F
90410-05035 Seat, Union(For Valve Body Housing)[09.1980 - 07.1984] GX6# |
90410-05035 |
US $2.89 |
||
|
44302G
|
44302G
90311-18003 Seal, Oil, No.2(For Vane Pump Housing)[08.1982 - 05.1983] GX61..TWC |
90311-18003 |
US $7.86 |
||
| replacement | |||||
|
44302G
|
44302G
90311-18008 Seal, Oil, No.2(For Vane Pump Housing)[08.1982 - 05.1983] GX61..TWC |
90311-18008 |
US $9.68 |
||
|
44302G
|
44302G
90311-18008 Seal, Oil, No.2(For Vane Pump Housing)[05.1983 - 07.1984] GX61..TWC |
90311-18008 |
US $9.68 |
||
|
44302H
|
44302H
90521-32001 Ring, Snap, No.1(For Vane Pump Housing)[08.1982 - 07.1984] GX61..TWC |
90521-32001 |
US $7.28 |
||
|
44304
|
44304
44324-22030 Housing Sub-Assy, Vane Pump, Rear[12.1983 - 07.1984] GX61..TWC |
44324-22030 |
US $208.21 |
||
| replacement | |||||
|
44304
|
44304
44324-22031 Housing Sub-Assy, Vane Pump, Rear[12.1983 - 07.1984] GX61..TWC |
44324-22031 |
US $205.30 |
||
|
44304
|
44304
44324-32010 Housing Sub-Assy, Vane Pump, Rear[08.1982 - 12.1983] GX61..TWC |
44324-32010 |
US $196.56 |
||
| replacement | |||||
|
44304
|
44304
44324-22031 Housing Sub-Assy, Vane Pump, Rear[08.1982 - 12.1983] GX61..TWC |
44324-22031 |
US $205.30 |
||
|
44305
|
44305
44305-30020
Cap Sub-Assy, Vane Pump Oil Reservoir
[08.1982 - 07.1984] GX61,LX6#;SX60..STD,XG,XL |
44305-30020 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-22061 Cap Sub-Assy, Vane Pump Oil Reservoir[08.1982 - 07.1984] GX61,LX6#;SX60..STD,XG,XL |
44305-22061 |
from US $15.88 |
||
|
44310
|
44310
44320-14140 Pump Assy, Vane[08.1982 - 05.1983] GX61..TWC |
44320-14140 |
US $1,113.84 |
||
| replacement | |||||
|
44310
|
44310
44320-14141 Pump Assy, Vane[08.1982 - 05.1983] GX61..TWC |
44320-14141 |
US $1,112.38 |
||
|
44310
|
44310
44320-14141 Pump Assy, Vane[05.1983 - 07.1984] GX61..TWC |
44320-14141 |
US $1,112.38 |
||
|
44310K
|
44310K
04446-16010 Gasket Kit, Power Steering Pump[08.1982 - 12.1983] GX61..TWC |
04446-16010 |
US $75.71 |
||
| replacement | |||||
|
44310K
|
44310K
04446-16011
Gasket Kit, Power Steering Pump
[08.1982 - 12.1983] GX61..TWC |
04446-16011 |
— | ||
|
44310K
|
44310K
04446-16011
Gasket Kit, Power Steering Pump
[12.1983 - 07.1984] GX61..TWC |
04446-16011 |
— | ||
|
44311
|
44311
44311-22041 Pulley, Vane Pump[09.1982 - 07.1984] GX61..TWC |
44311-22041 |
US $101.92 |
||
|
44311A
|
44311A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[08.1982 - 07.1984] GX61,LX6#,MX61;SX60..STD,XG,XL |
90280-05008 |
US $3.94 |
||
|
44312
|
44312
44312-12020 Shaft, Vane Pump[08.1982 - 07.1984] GX61..TWC |
44312-12020 |
US $39.60 |
||
|
44312B
|
44312B
90520-10003 Ring, Snap, No.1(For Vane Pump Shaft)[08.1982 - 07.1984] GX61..TWC |
90520-10003 |
US $1.22 |
||
|
44313
|
44313
44313-12010
Rotor, Vane Pump
[08.1982 - 07.1984] GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL マーク無し |
44313-12010 |
— | ||
| replacement | |||||
|
44313
|
44313
44313-22040 Rotor, Vane Pump[08.1982 - 07.1984] GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL マーク無し |
44313-22040 |
US $103.38 |
||
|
44313
|
44313
44313-12020
Rotor, Vane Pump
[08.1982 - 07.1984] GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL マーク １,MARK 1 |
44313-12020 |
— | ||
| replacement | |||||
|
44313
|
44313
44313-22050 Rotor, Vane Pump[08.1982 - 07.1984] GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL マーク １,MARK 1 |
44313-22050 |
US $101.34 |
||
|
44313
|
44313
44313-12030 Rotor, Vane Pump[08.1982 - 07.1984] GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL マーク ２,MARK 2 |
44313-12030 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22060 Rotor, Vane Pump[08.1982 - 07.1984] GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL マーク ２,MARK 2 |
44313-22060 |
US $103.38 |
||
|
44313
|
44313
44313-12040 Rotor, Vane Pump[08.1982 - 07.1984] GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL マーク ３,MARK 3 |
44313-12040 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22070 Rotor, Vane Pump[08.1982 - 07.1984] GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL マーク ３,MARK 3 |
44313-22070 |
US $103.38 |
||
|
44313
|
44313
44313-12050 Rotor, Vane Pump[08.1982 - 07.1984] GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL マーク ４,MARK 4 |
44313-12050 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22080 Rotor, Vane Pump[08.1982 - 07.1984] GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL マーク ４,MARK 4 |
44313-22080 |
US $103.38 |
||
|
44326
|
44326
44325-12010 Ring, Cam(For Vane Pump)[08.1982 - 07.1984] GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL マーク無し |
44325-12010 |
US $109.78 |
||
|
44326
|
44326
44325-12020 Ring, Cam(For Vane Pump)[08.1982 - 07.1984] GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL マーク １,MARK 1 |
44325-12020 |
US $113.57 |
||
|
44326
|
44326
44325-12030 Ring, Cam(For Vane Pump)[08.1982 - 07.1984] GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL マーク ２,MARK 2 |
44325-12030 |
US $116.48 |
||
|
44326
|
44326
44325-12040 Ring, Cam(For Vane Pump)[08.1982 - 07.1984] GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL マーク ３,MARK 3 |
44325-12040 |
US $116.48 |
||
|
44326
|
44326
44325-12050 Ring, Cam(For Vane Pump)[08.1982 - 07.1984] GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL マーク ４,MARK 4 |
44325-12050 |
US $116.48 |
||
|
44326A
|
44326A
90250-05008 Pin, Straight(For Vane Pump Cam Ring)[08.1982 - 07.1984] GX61..TWC 長さ＝２５，外径＝５．０ |
90250-05008 |
US $3.20 |
||
|
44326A
|
44326A
90250-05017 Pin, Straight(For Vane Pump Cam Ring)[08.1982 - 07.1984] GX61..TWC 長さ＝４３．５，外径＝５．０,L=43.5 |
90250-05017 |
US $4.66 |
||
|
44330
|
44330
44330-12130
Valve Assy, Flow Control
[08.1982 - 07.1984] GX61,SX60..AVT,STD,SXL,XG,XL マーク Ａ,MARK A |
44330-12130 |
— | ||
| replacement | |||||
|
44330
|
44330
44330-32670
Valve Assy, Flow Control
[08.1982 - 07.1984] GX61,SX60..AVT,STD,SXL,XG,XL マーク Ａ,MARK A |
44330-32670 |
— | ||
|
44330
|
44330
44330-12140 Valve Assy, Flow Control[08.1982 - 07.1984] GX61,SX60..AVT,STD,SXL,XG,XL マーク Ｂ,MARK B |
44330-12140 |
US $109.20 |
||
| replacement | |||||
|
44330
|
44330
44330-32680 Valve Assy, Flow Control[08.1982 - 07.1984] GX61,SX60..AVT,STD,SXL,XG,XL マーク Ｂ,MARK B |
44330-32680 |
US $115.02 |
||
|
44330
|
44330
44330-12150 Valve Assy, Flow Control[08.1982 - 07.1984] GX61,SX60..AVT,STD,SXL,XG,XL マーク Ｃ,MARK C |
44330-12150 |
US $109.20 |
||
| replacement | |||||
|
44330
|
44330
44330-32690 Valve Assy, Flow Control[08.1982 - 07.1984] GX61,SX60..AVT,STD,SXL,XG,XL マーク Ｃ,MARK C |
44330-32690 |
US $115.02 |
||
|
44330
|
44330
44330-12160 Valve Assy, Flow Control[08.1982 - 07.1984] GX61,SX60..AVT,STD,SXL,XG,XL マーク Ｄ,MARK D |
44330-12160 |
US $109.20 |
||
| replacement | |||||
|
44330
|
44330
44330-32700 Valve Assy, Flow Control[08.1982 - 07.1984] GX61,SX60..AVT,STD,SXL,XG,XL マーク Ｄ,MARK D |
44330-32700 |
US $115.02 |
||
|
44330
|
44330
44330-12170 Valve Assy, Flow Control[08.1982 - 07.1984] GX61,SX60..AVT,STD,SXL,XG,XL マーク Ｅ,MARK E |
44330-12170 |
US $109.20 |
||
| replacement | |||||
|
44330
|
44330
44330-32710 Valve Assy, Flow Control[08.1982 - 07.1984] GX61,SX60..AVT,STD,SXL,XG,XL マーク Ｅ,MARK E |
44330-32710 |
US $115.02 |
||
|
44330
|
44330
44330-12180 Valve Assy, Flow Control[08.1982 - 07.1984] GX61,SX60..AVT,STD,SXL,XG,XL マーク Ｆ,MARK F |
44330-12180 |
US $109.20 |
||
| replacement | |||||
|
44330
|
44330
44330-32720 Valve Assy, Flow Control[08.1982 - 07.1984] GX61,SX60..AVT,STD,SXL,XG,XL マーク Ｆ,MARK F |
44330-32720 |
US $115.02 |
||
|
44330A
|
44330A
90501-12447
Spring, Compression(For Flow Control Valve)
[08.1982 - 07.1984] GX61,LX6#,MX61;SX60..STD,XG,XL |
90501-12447 |
— | ||
|
44330C
|
44330C
96151-02200 Ring(For Clutch Master Cylinder Reservoir)[08.1982 - 07.1984] GX61..TWC |
96151-02200 |
US $2.97 |
||
|
44337
|
44337
44337-22030 Union, Power Steering Suction Port[08.1982 - 07.1984] GX61..TWC |
44337-22030 |
US $36.11 |
||
|
44337A
|
44337A
96711-19013 Ring, O(For Power Steering Suction Port)[08.1982 - 07.1984] SX60..STD,XG,XL; GX61,LX6#..DSL,TDE,TWC |
96711-19013 |
from US $2.63 |
||
|
44338
|
44338
44308-14040 Union, Pressure Port[08.1982 - 07.1984] GX61..TWC |
44308-14040 |
US $123.76 |
||
| replacement | |||||
|
44338
|
44338
44308-14041 Union Sub-Assy, Pressure Port[08.1982 - 07.1984] GX61..TWC |
44308-14041 |
US $122.30 |
||
|
44338A
|
44338A
90301-22001 Ring, O(For Pressure Port Union)[09.1980 - 07.1984] GX6#,MX61,RX60,SX60..AVT,SGT,STD,SXL,XG,XL 外径＝２５．５，内径＝２２．５,ID=22.5,OD=25.5 |
90301-22001 |
US $10.57 |
||
|
44341
|
44341
44341-12020 Plate, Vane Pump Side, Front[08.1982 - 07.1984] GX61..TWC |
44341-12020 |
US $39.31 |
||
| replacement | |||||
|
44341
|
44341
44341-30030 Plate, Vane Pump Side, Front[08.1982 - 07.1984] GX61..TWC |
44341-30030 |
US $39.17 |
||
|
44341A
|
44341A
90301-21001
Ring, O(For Vane Pump Front Side Plate)
[08.1982 - 07.1984] GX61..TWC INNER |
90301-21001 |
— | ||
|
44341A
|
44341A
90301-56002
Ring, O(For Vane Pump Front Side Plate)
[08.1982 - 07.1984] GX61..TWC OUTER |
90301-56002 |
— | ||
|
44342
|
44342
44342-12010 Plate, Vane Pump Side, Rear[08.1982 - 12.1983] GX61..TWC |
44342-12010 |
US $87.36 |
||
|
44342
|
44342
44342-22010 Plate, Vane Pump Side, Rear[12.1983 - 07.1984] GX61..TWC |
44342-22010 |
US $39.31 |
||
| replacement | |||||
|
44342
|
44342
44342-30020
Plate, Vane Pump Side, Rear
[12.1983 - 07.1984] GX61..TWC |
44342-30020 |
— | ||
|
44342A
|
44342A
90301-13004
Ring, O(For Vane Pump Side Plate Rear)
[12.1983 - 07.1984] GX61..TWC ID=13.4 |
90301-13004 |
— | ||
|
44342A
|
44342A
90301-30004
Ring, O(For Vane Pump Side Plate Rear)
[12.1983 - 07.1984] GX61..TWC ID=30 |
90301-30004 |
— | ||
|
44342A
|
44342A
90301-37002 Ring, O(For Vane Pump Side Plate Rear)[08.1982 - 12.1983] GX61..TWC ID=37.5 |
90301-37002 |
US $4.80 |
||
|
44343
|
44343
44343-12030 Seat, Flow Control Spring[08.1982 - 07.1984] GX61..TWC |
44343-12030 |
US $16.02 |
||
|
44343A
|
44343A
96711-19019 Ring, O(For Vane Pump Union)[08.1982 - 07.1984] GX61..TWC |
96711-19019 |
from US $2.22 |
||
|
44348
|
44348
44345-12010 Plate, Vane Pump[08.1982 - 07.1984] GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL 長さ＝１４．９９７,L=14.996-14.998,ROTOR NO MARK |
44345-12010 |
US $11.83 |
||
|
44348
|
44348
44345-12020 Plate, Vane Pump[08.1982 - 07.1984] GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL 長さ＝１４．９９５,L=14.994-14.996,ROTOR MARK 1 |
44345-12020 |
US $6.12 |
||
|
44348
|
44348
44345-12030 Plate, Vane Pump[08.1982 - 07.1984] GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL 長さ＝１４．９９３,L=14.992-14.994,ROTOR MARK 2 |
44345-12030 |
US $6.12 |
||
|
44348
|
44348
44345-12040 Plate, Vane Pump[08.1982 - 07.1984] GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL 長さ＝１４．９９１,L=14.990-14.992,ROTOR MARK 3 |
44345-12040 |
US $6.12 |
||
|
44348
|
44348
44345-12050 Plate, Vane Pump[08.1982 - 07.1984] GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL 長さ＝１４．９８９,L=14.988-14.990,ROTOR MARK 4 |
44345-12050 |
US $6.12 |
||
|
44362
|
44362
44360-22060 Reservoir, Oil(For Vane Pump)OIL(FOR VANE PUMP) [08.1982 - 07.1984] GX61..TWC; SX60..STD,XG,XL |
44360-22060 |
US $147.06 |
||
|
44362C
|
44362C
90540-09004 Cushion(For Vane Pump Oil Reservoir)[08.1982 - 07.1984] SX60..STD,XG,XL; GX61,LX6#..DSL,TDE,TWC |
90540-09004 |
US $2.87 |
||
|
44362D
|
44362D
90560-06014 Spacer(For Vane Pump Oil Reservoir)[08.1982 - 07.1984] SX60..STD,XG,XL; GX61,LX6#..DSL,TDE,TWC |
90560-06014 |
US $6.27 |
||
|
44369
|
44369
44369-22030
Bracket, Oil Reservoir, No.1
[08.1982 - 07.1984] GX61..TWC NO.1; SX60..STD,XG,XL NO.1 |
44369-22030 |
— | ||
|
44369
|
44369
44379-22030
Bracket, Oil Reservoir, No.1
[08.1982 - 07.1984] GX61..TWC NO.2; SX60..STD,XG,XL NO.2 |
44379-22030 |
— | ||
|
44391
|
44391
44391-30020
Plate, Power Steering Oil Reservoir Caution
[08.1982 - 07.1984] GX61,LX6#,MX61;SX60..STD,XG,XL |
44391-30020 |
— | ||
|
44429
|
44429
44348-22070 Hose, Reservoir To Oil PumpRESERVOIR TO OIL PUMP [08.1982 - 07.1984] GX61..TWC |
44348-22070 |
US $103.38 |
||
|
44429G
|
44429G
90460-26001 Clamp(For Oil Reservoir To Pump Hose)[08.1982 - 07.1984] GX61..TWC; LX6#;SX60..STD,XG,XL |
90460-26001 |
US $10.57 |
||
|
9011910072
|
9011910072
90119-10072 New Genuine Part |
90119-10072 |
US $2.87 |
||
|
9017912022
|
9017912022
90179-12022 Nut(For Vane Pump Pulley) |
90179-12022 |
US $6.63 |
||
|
9020630001
|
9020630001
90206-30001 New Genuine Part |
90206-30001 |
US $4.22 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
