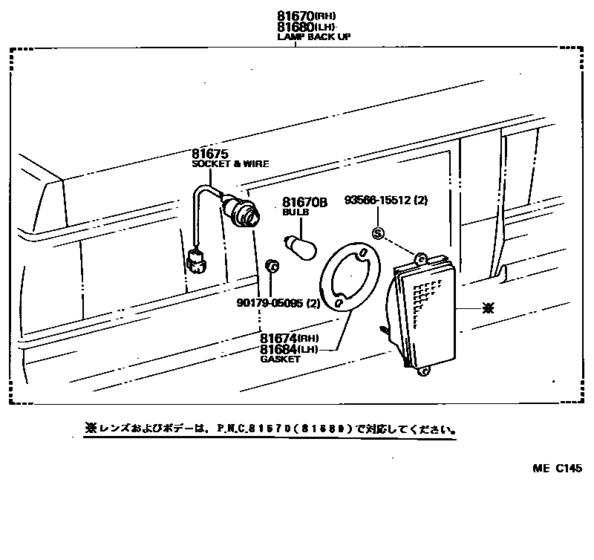

Back Up Lamp ([08.1982 - ] (8208- )HT) Diagram Toyota CHASER
- Year
- 1980 - 1984
- Sales region
- Japan
- Frame
- GX61
- grade
- AVT
- body
- HT
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 09.1980
- To
- 07.1984
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81670
|
81670
81670-29105 Lamp Assy, Back-Up, RhBACK-UP, RH [08.1982 - 07.1984] GX61,MX61,SX60..HT |
81670-29105 |
US $71.20 |
||
|
81670B
|
81670B
99132-11230 Bulb, Fog Lamp[08.1982 - 07.1984] GX61,MX61,SX60..HT １２Ｖ ２３Ｗ,12V 23W |
99132-11230 |
US $3.05 |
||
|
81674
|
81674
81557-95809 Protector, Rear Combination Lamp, RhBACK-UP LAMP BODY, RH [08.1982 - 07.1984] GX61,MX61,SX60..HT |
81557-95809 |
US $8.74 |
||
|
81675
|
81675
81556-95809 Socket & Wire Sub-Assy, Rear Combination Lamp, RhBACK-UP LAMP [08.1982 - 07.1984] GX61,MX61,SX60..HT |
81556-95809 |
US $15.87 |
||
|
81680
|
81680
81680-29055 Lamp Assy, Back Up, LhBACK UP, LH [08.1982 - 07.1984] GX61,MX61,SX60..HT |
81680-29055 |
US $71.20 |
||
|
81684
|
81684
81557-95809 Protector, Rear Combination Lamp, RhBACK-UP LAMP BODY, RH [08.1982 - 07.1984] GX61,MX61,SX60..HT |
81557-95809 |
US $8.74 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.33 |
||
|
9356615512
|
9356615512
93566-15512
New Genuine Part
|
93566-15512 |
— | ||
| replacement | |||||
|
9356615512
|
9356615512
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
