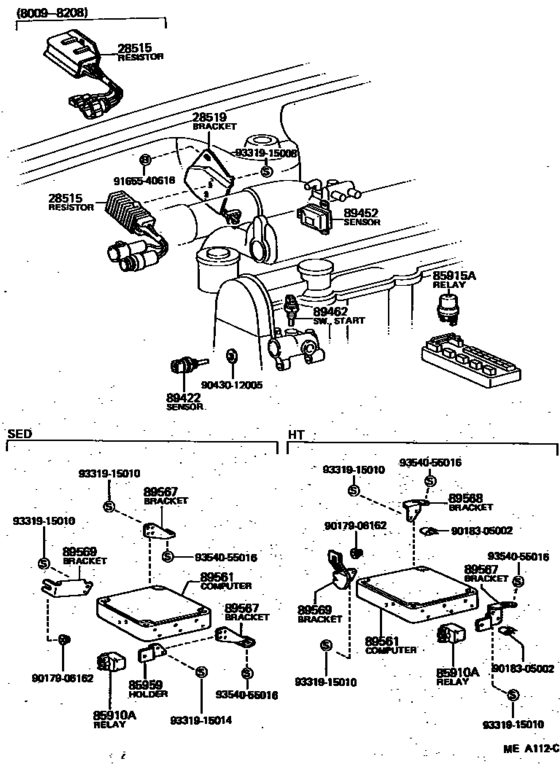

Electronic Fuel Injection System ([09.1980 - ] (8009- )GX6#..EFI) Diagram Toyota CHASER
- Year
- 1980 - 1984
- Sales region
- Japan
- Frame
- GX61
- grade
- AVT
- body
- HT
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 09.1980
- To
- 07.1984
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28515
|
28515
28515-41010 Resistor, SolenoidSOLENOID [09.1980 - 08.1982] 1GEU..GX6# |
28515-41010 |
US $161.62 |
||
| replacement | |||||
|
28515
|
28515
28515-41020 Resistor, Solenoid[09.1980 - 08.1982] 1GEU..GX6# |
28515-41020 |
US $177.63 |
||
|
28515
|
28515
28515-43010
Resistor, Solenoid
[08.1982 - 07.1984] 1G#,MTEU..GX61,MX61 |
28515-43010 |
— | ||
|
28519
|
28519
28519-22050
Bracket, Solenoid Resistor
[08.1982 - 07.1984] 1GEU..GX61 |
28519-22050 |
— | ||
|
28519
|
28519
28519-70010
Bracket, Solenoid Resistor
[09.1980 - 08.1982] 18RGEU,1GEU..GX6#,RX63 |
28519-70010 |
— | ||
|
85910A
|
85910A
85910-30050 Relay Assy, Circuit Opening (For Efi)[09.1980 - 08.1982] GX6#,MX61,RX63 |
85910-30050 |
US $93.48 |
||
|
85915A
|
85915A
90987-02004 Relay Assy, Starter[09.1980 - 07.1984] GX6#,MX61,RX63 |
90987-02004 |
from US $28.10 |
||
| replacement | |||||
|
85915A
|
85915A
909870200483 [09.1980 - 07.1984] GX6#,MX61,RX63 |
909870200483 |
US $53.75 |
||
|
89422
|
89422
89422-30020
Sensor, Water Temperature (For E.f.i.)
[09.1980 - 07.1984] GX6#,MX61,RX63 |
89422-30020 |
— | ||
| replacement | |||||
|
89422
|
89422
89422-12010 Sensor, Water Temperature (For E.f.i.)[09.1980 - 07.1984] GX6#,MX61,RX63 |
89422-12010 |
US $67.54 |
||
|
89452
|
89452
89452-22010
Sensor, Throttle Position (For E.f.i.)
[09.1980 - 08.1982] GX6#,MX61 |
89452-22010 |
— | ||
|
89462
|
89462
89462-40010
Switch, Start Injector Time
[09.1980 - 07.1984] GX6# |
89462-40010 |
— | ||
|
89561
|
89561
89561-22030 Computer Set, Fuel InjectionFUEL INJECTION [09.1980 - 08.1982] GX6# |
89561-22030 |
US $1,032.30 |
||
|
89561
|
89561
89561-22070 Computer Set, Fuel InjectionFUEL INJECTION [08.1982 - 07.1984] GX61..EFI |
89561-22070 |
US $1,106.56 |
||
|
89567
|
89567
89567-22070
Bracket, Fuel Injection Computer
[09.1980 - 08.1983] GX6#,MX61,RX63..HT..(EFI,TBO) |
89567-22070 |
— | ||
|
89568
|
89568
89568-22070
Bracket, Fuel Injection Computer
[09.1980 - 08.1983] GX6#,MX61,RX63..HT..(EFI,TBO) |
89568-22070 |
— | ||
|
89569
|
89569
89569-22070
Bracket, Fuel Injection Computer
[09.1980 - 08.1983] GX6#,MX61,RX63..HT..(EFI,TBO) |
89569-22070 |
— | ||
|
9017906162
|
9017906162
90179-06162
New Genuine Part
|
90179-06162 |
— | ||
| replacement | |||||
|
9017906162
|
9017906162
90179-06308 NUT |
90179-06308 |
from US $0.92 |
||
|
9018305002
|
9018305002
90183-05002
New Genuine Part
|
90183-05002 |
— | ||
| replacement | |||||
|
9018305002
|
9018305002
90183-05001
New Genuine Part
|
90183-05001 |
— | ||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.68 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
|
9331915014
|
9331915014
93319-15014 Screw, Cover Set, No.1 |
93319-15014 |
US $2.51 |
||
|
9354055016
|
9354055016
93540-55016 SCREW |
93540-55016 |
US $1.25 |
||
