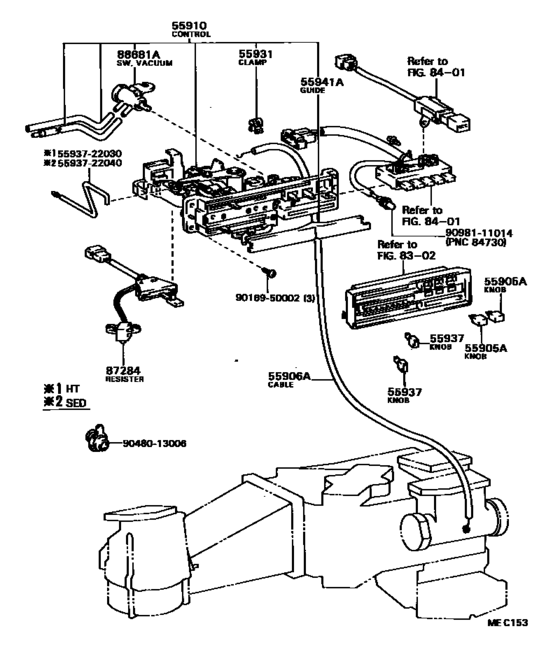

Heating & Air Conditioning - Control & Air Duct ([08.1982 - ] (8208- )AVT) Diagram Toyota CHASER
- Year
- 1980 - 1984
- Sales region
- Japan
- Frame
- GX61
- grade
- AVT
- body
- HT
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 09.1980
- To
- 07.1984
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55905A
|
55905A
55905-22080 Knob, Heater ControlHEATER CONTROL [08.1982 - 07.1984] GX61,MX61..AVT |
55905-22080 |
US $9.46 |
||
|
55906A
|
55906A
55906-22050 Cable Sub-Assy, Defroster Damper ControlDEFROSTER DAMPER CONTROL [09.1980 - 07.1984] GX6#,MX61,RX6#,SX60,TX60..HT L=380 |
55906-22050 |
US $10.19 |
||
|
55910
|
55910
55910-22180
Control Assy, Heater Or Boost Ventilator
[09.1980 - 08.1982] GX61,MX61..HT..AVT W/AUTOMATIC AIR CONDITIONER |
55910-22180 |
— | ||
|
55910
|
55910
55910-22260 Control Assy, Heater Or Boost VentilatorHEATER OR BOOST VENTILATOR [08.1982 - 07.1984] GX61,MX61..HT..AVT W/AUTOMATIC AIR CONDITIONER |
55910-22260 |
US $164.53 |
||
|
55931
|
55931
55933-24010 Clamp, Heater Control Wire[08.1982 - 07.1984] GX61,MX61..AVT |
55933-24010 |
US $2.62 |
||
|
55937
|
55937
55905-22070
Knob, Heater Control
[09.1980 - 07.1984] GX6#,LX6#,MX61,RX6#,SX60,TX60 |
55905-22070 |
— | ||
|
55941A
|
55941A
55941-22020
Guide, Heater Control
[09.1980 - 08.1982] GX6#,MX61,RX6#,TX60..HT |
55941-22020 |
— | ||
|
55941A
|
55941A
55941-22040
Guide, Heater Control
[08.1982 - 07.1984] GX61,MX61..HT..AVT |
55941-22040 |
— | ||
|
87284
|
87284
88032-22030
Resistor Sub-Assy, Variable
[09.1980 - 07.1984] GX6#,LX65,MX61 |
88032-22030 |
— | ||
|
88681A
|
88681A
88681-22010
Switch, Heater Control Vacuum, No.1
[08.1982 - 07.1984] GX61,MX61..AVT |
88681-22010 |
— | ||
|
5593722030
|
5593722030
55937-22030
Knob, Heater Control Lever
|
55937-22030 |
— | ||
|
5593722040
|
5593722040
55937-22040
Knob, Heater Control Lever
|
55937-22040 |
— | ||
|
9016950002
|
9016950002
90169-50002
New Genuine Part
|
90169-50002 |
— | ||
|
9048013006
|
9048013006
90480-13006
Grommet(For Hood Lock Control Cable)
|
90480-13006 |
— | ||
|
9098111014
|
9098111014
90981-11014 Bulb, Position Indicator Lamp |
90981-11014 |
from US $2.15 |
