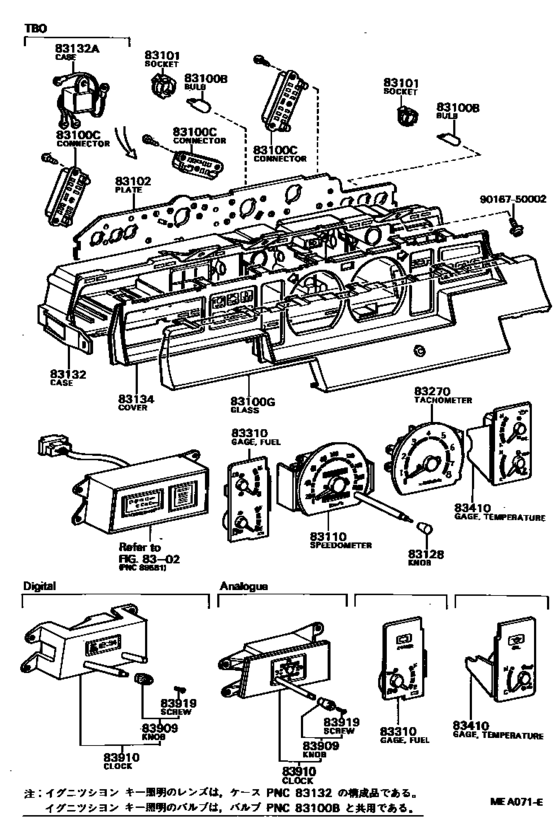

Meter ([09.1980 - 08.1982] (8009-8208)HT) Diagram Toyota CHASER
- Year
- 1980 - 1984
- Sales region
- Japan
- Frame
- GX61
- grade
- AVT
- body
- HT
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 09.1980
- To
- 07.1984
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[09.1980 - 07.1984] GX6#,LX6#,MX61,RX6#,SX60,TX60 １２Ｖ １．２Ｗ ソケット無し,12V 1.4W |
90981-11018 |
from US $2.09 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[09.1980 - 07.1984] GX6#,LX6#,MX61,RX6#,SX60,TX60..CBR,DSL,EFI,LPG,TBO,TDE １２Ｖ ３．４Ｗ,12V 3.4W |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[09.1980 - 07.1984] GX6#,LX6#,MX61,RX6#,SX60,TX60..CBR,DSL,EFI,LPG,TBO,TDE １２Ｖ ３．４Ｗ,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100C
|
83100C
90980-08208 Connector, Combination Meter[09.1980 - 07.1984] GX6#,LX6#,MX61,RX6#,SX60,TX60 7-POLE |
90980-08208 |
US $4.37 |
||
|
83100C
|
83100C
90980-08209
Connector, Combination Meter
[09.1980 - 07.1984] GX6#,LX6#,MX61,RX6#,SX60,TX60 13-POLE |
90980-08209 |
— | ||
|
83100G
|
83100G
83133-22270
Glass, Combination Meter
[08.1982 - 07.1984] GX61..HT..AVT W/*DS |
83133-22270 |
— | ||
|
83100G
|
83100G
83133-22290
Glass, Combination Meter
[08.1982 - 07.1984] GX61..HT..AVT W/*DS & *CC |
83133-22290 |
— | ||
|
83100G
|
83100G
83138-22230
Glass, Combination Meter
[09.1980 - 08.1982] GX6#,MX61,RX6#..HT..(AVT,GT,SGT,SXL,XG) |
83138-22230 |
— | ||
|
83100G
|
83100G
83138-22250
Glass, Combination Meter
[09.1980 - 08.1982] GX61,MX61..HT..AVT W/*CC |
83138-22250 |
— | ||
|
83100G
|
83100G
83138-22330
Glass, Combination Meter
[08.1982 - 07.1984] GX61..HT..EFI W/*AS; MX61,SX60..HT..(AVT,SGT,XG) W/DIGITAL CLOCK,*AS |
83138-22330 |
— | ||
|
83101
|
83101
83101-12020
Socket Sub-Assy, Combination Meter Bulb
[08.1982 - 07.1984] GX61..HT..AVT 12V 3.4W,LONG |
83101-12020 |
— | ||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[09.1980 - 08.1982] GX6#,MX61,RX6#,TX60..HT 12V 3.4W; GX61,MX61,RX63..SED 12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[09.1980 - 07.1984] GX6#,LX6#,MX61,RX6#,SX60,TX60 12V 1.4W |
83101-14040 |
US $2.44 |
||
|
83101
|
83101
83101-14050
Socket Sub-Assy, Combination Meter Bulb
[08.1982 - 07.1984] GX61..SED..EFI 12V3.4W,DENSO,W/GREEN CAP BULB; MX61;GX61,SX60..HT 12V 3.4W,W/GREEN CAP BULB,*AS |
83101-14050 |
— | ||
|
83101
|
83101
83101-32010
Socket Sub-Assy, Combination Meter Bulb
[08.1982 - 07.1984] GX61..AVT 12V 1.4W,LONG |
83101-32010 |
— | ||
|
83102
|
83102
83247-22350
Plate Sub-Assy, Combination Meter Circuit, No.1
[09.1980 - 08.1982] GX61,RX63..HT |
83247-22350 |
— | ||
|
83102
|
83102
83247-22530
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1982 - 07.1984] GX61..HT..AVT..EFI W/*AS |
83247-22530 |
— | ||
|
83102
|
83102
83247-22550
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1982 - 07.1984] GX61..HT..AVT W/*DS |
83247-22550 |
— | ||
|
83110
|
83110
83110-22570 Speedometer Assy[09.1980 - 08.1982] GX6#,RX6#,TX60..HT |
83110-22570 |
US $432.43 |
||
| replacement | |||||
|
83110
|
83110
83110-22610
Speedometer Assy
[09.1980 - 08.1982] GX6#,RX6#,TX60..HT |
83110-22610 |
— | ||
|
83110
|
83110
83110-22610
Speedometer Assy
[09.1980 - 12.1980] GX61..HT W/*AD |
83110-22610 |
— | ||
|
83110
|
83110
83110-22760 Speedometer Assy[08.1982 - 07.1984] GX61..HT..AVT..EFI W/*AS |
83110-22760 |
US $451.36 |
||
| replacement | |||||
|
83110
|
83110
83110-22750 Speedometer Assy[08.1982 - 07.1984] GX61..HT..AVT..EFI W/*AS |
83110-22750 |
US $451.36 |
||
|
83110
|
83110
83110-22880 Speedometer Assy[08.1982 - 07.1984] GX61..AVT W/*DS |
83110-22880 |
US $1,279.82 |
||
|
83128
|
83128
83128-10260
Knob, Trip Counter
[09.1980 - 08.1982] GX6#,MX61,RX6#,TX60..HT; GX61,MX61,RX63..SED |
83128-10260 |
— | ||
|
83128
|
83128
83128-32030
Knob, Trip Counter
[08.1982 - 07.1984] GX61..AVT W/*DS |
83128-32030 |
— | ||
|
83132
|
83132
83132-22090
Case, Combination Meter
[09.1980 - 08.1982] GX61,MX61,RX63..HT |
83132-22090 |
— | ||
|
83132
|
83132
83132-22210
Case, Combination Meter
[08.1982 - 07.1984] GX61,MX61..HT..(EFI,TBO) W/*AS |
83132-22210 |
— | ||
| replacement | |||||
|
83132
|
83132
83132-22190
Case, Combination Meter
[08.1982 - 07.1984] GX61,MX61..HT..(EFI,TBO) W/*AS |
83132-22190 |
— | ||
|
83132
|
83132
83132-22230
Case, Combination Meter
[08.1982 - 07.1984] GX61..HT..AVT..EFI W/*DS |
83132-22230 |
— | ||
|
83134
|
83134
83133-22090
Cover, Combination Meter, No.1
[09.1980 - 08.1982] GX61,MX61,RX63..HT |
83133-22090 |
— | ||
|
83134
|
83134
83133-22250
Cover, Combination Meter, No.1
[08.1982 - 07.1984] GX61..HT..EFI W/*AS |
83133-22250 |
— | ||
|
83134
|
83134
83133-22310
Cover, Combination Meter, No.1
[08.1982 - 07.1984] GX61..HT..AVT W/*DS |
83133-22310 |
— | ||
|
83270
|
83270
83242-22230
Tachometer Assy, Engine
[09.1980 - 08.1982] GX6#,MX61..HT |
83242-22230 |
— | ||
|
83270
|
83270
83242-22330 Tachometer Assy, EngineENGINE [08.1982 - 07.1984] GX61..HT..EFI W/*AS |
83242-22330 |
US $532.90 |
||
|
83270
|
83270
83270-24010
Tachometer Assy, Engine
[08.1982 - 07.1984] GX61..AVT..EFI W/*DS |
83270-24010 |
— | ||
|
83310
|
83310
83243-22230 Gage Assy, Fuel ReceiverFUEL RECEIVER [09.1980 - 08.1982] GX61,RX63..HT |
83243-22230 |
US $182 |
||
|
83310
|
83310
83243-22310 Gage Assy, Fuel ReceiverFUEL RECEIVER [08.1982 - 07.1984] GX61,MX61..HT..(EFI,TBO) W/*AS |
83243-22310 |
US $208.21 |
||
|
83310
|
83310
83310-22050 Gage Assy, Fuel Receiver[08.1982 - 04.1984] GX61..AVT W/*DS |
83310-22050 |
US $1,234.69 |
||
|
83310
|
83310
83310-22051 Gage Assy, Fuel ReceiverFUEL RECEIVER [04.1984 - 07.1984] MX61..AVT W/*DS; GX61..AVT W/*DS |
83310-22051 |
US $1,359.90 |
||
|
83410
|
83410
83244-22150 Gage Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [09.1980 - 10.1980] GX61,RX63..HT |
83244-22150 |
US $104.83 |
||
|
83410
|
83410
83244-22210 Gage Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [10.1980 - 08.1982] GX61..HT |
83244-22210 |
US $104.83 |
||
|
83410
|
83410
83244-22290 Gage Assy, Water Temperature Receiver[08.1982 - 09.1983] GX61..HT..EFI W/*AS |
83244-22290 |
US $109.20 |
||
| replacement | |||||
|
83410
|
83410
83244-22370 Gage Assy, Water Temperature Receiver[08.1982 - 09.1983] GX61..HT..EFI W/*AS |
83244-22370 |
US $107.74 |
||
|
83410
|
83410
83244-22370 Gage Assy, Water Temperature Receiver[09.1983 - 07.1984] GX61,MX61..HT..(EFI,TBO) W/*AS |
83244-22370 |
US $107.74 |
||
|
83909
|
83909
83909-22180 Knob, Clock[09.1980 - 07.1984] GX6#,LX65,MX61,RX6#,SX60..AVT,GT,SGT,SXL,XG DIGITAL |
83909-22180 |
US $2.62 |
||
|
83910
|
83910
83910-22200
Clock Assy
[09.1980 - 08.1982] GX6#,MX61,RX6#..HT..(AVT,GT,SGT,SXL,XG) DIGITAL |
83910-22200 |
— | ||
|
83910
|
83910
83910-22201 Clock Assy[08.1982 - 07.1984] MX61,SX60..HT..(AVT,SGT,XG) DIGITAL; GX61..HT..EFI W/ANALOGUE METER,DIGITAL |
83910-22201 |
US $449.90 |
||
|
83910
|
83910
83910-22250
Clock Assy
[08.1982 - 07.1984] GX61..HT..AVT W/*DS,DIGITAL |
83910-22250 |
— | ||
|
83919
|
83919
83919-12230 Screw, Clock[09.1980 - 07.1984] GX6#,LX65,MX61,RX6#,SX60..AVT,GT,SGT,SXL,XG DIGITAL |
83919-12230 |
US $1.86 |
||
|
9016750002
|
9016750002
90167-50002
Direct
|
90167-50002 |
— | ||
| replacement | |||||
|
9016750002
|
9016750002
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
