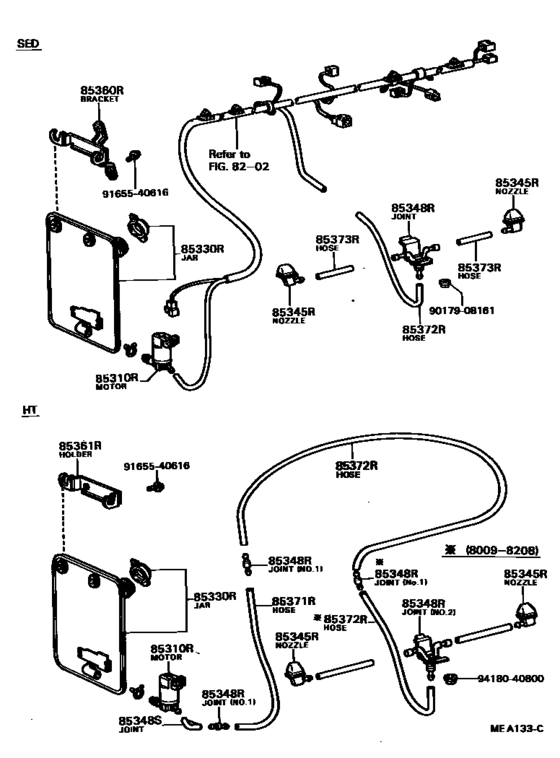

Rear Washer ([08.1982 - ] (8009-8208)GX61,RX63 ; (8110-8208)MX61..SED..SGT ; (8110- )MX61..HT..SGT ; (8208 - )GX61..HT..A VT ; (8308- )MX61..HT..AVT) Diagram Toyota CHASER
- Year
- 1980 - 1984
- Sales region
- Japan
- Frame
- GX61
- grade
- AVT
- body
- HT
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 09.1980
- To
- 07.1984
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85310R
|
85310R
85310-20100
Motor And Pump Assy, Windshield Washer
[09.1980 - 08.1982] GX61,RX63 |
85310-20100 |
— | ||
| replacement | |||||
|
85310R
|
85310R
85310-22080 Motor And Pump Assy, Windshield Washer[09.1980 - 08.1982] GX61,RX63 |
85310-22080 |
from US $49.97 |
||
|
85330R
|
85330R
85330-22110
Jar Assy, Rear Washer
[09.1980 - 08.1982] GX61,RX63 |
85330-22110 |
— | ||
|
85345R
|
85345R
85341-22150
Nozzle, Rear Washer
[09.1980 - 08.1982] GX61,RX63 RH |
85341-22150 |
— | ||
|
85345R
|
85345R
85341-22160
Nozzle, Rear Washer
[09.1980 - 08.1982] GX61,RX63 LH |
85341-22160 |
— | ||
|
85348R
|
85348R
85355-87201
Joint, Windshield Washer Hose, No.1
[08.1982 - 07.1984] MX61..HT..SGT NO.1; GX61..HT..AVT NO.1 |
85355-87201 |
— | ||
| replacement | |||||
|
85348R
|
85348R
85349-89122 Valve Sub-Assy, Washer[08.1982 - 07.1984] MX61..HT..SGT NO.1; GX61..HT..AVT NO.1 |
85349-89122 |
from US $1.25 |
||
|
85348R
|
85348R
85355-95800
Joint, Rear Washer Hose, No.1
[09.1980 - 08.1982] GX61,RX63..HT NO.2 |
85355-95800 |
— | ||
|
85348S
|
85348S
85355-20070
Joint, Windshield Washer Motor
[09.1980 - 08.1982] GX61,RX63..HT |
85355-20070 |
— | ||
| replacement | |||||
|
85348S
|
85348S
85355-14481 Joint, Windshield Washer Elbow, No.1[09.1980 - 08.1982] GX61,RX63..HT |
85355-14481 |
US $0.98 |
||
|
85361R
|
85361R
85361-95801
Holder, Rear Washer
[09.1980 - 08.1982] GX61,RX63..HT |
85361-95801 |
— | ||
|
85371R
|
85371R
90099-33299 Joint, Windshield Washer Elbow, No.2[09.1980 - 08.1982] GX61,RX63..HT ＊Ｈ，Ｌ＝２４０ |
90099-33299 |
from US $4.37 |
||
|
85372R
|
85372R
90099-33299 Joint, Windshield Washer Elbow, No.2[09.1980 - 08.1982] GX61,RX63..SED ＊Ｈ，Ｌ＝１１０; GX61,RX63..HT ＊Ｈ，Ｌ＝２４０ |
90099-33299 |
from US $4.37 |
||
|
85372R
|
85372R
90446-07001 Hose, Windshield Washer (From Motor To Joint)[09.1980 - 08.1982] GX61,RX63..HT ＊Ｈ，Ｌ＝１３００ |
90446-07001 |
from US $1.75 |
||
|
9017908161
|
9017908161
90179-08161 New Genuine Part |
90179-08161 |
US $3.93 |
||
| replacement | |||||
|
9017908161
|
9017908161
90179-08017 NUT |
90179-08017 |
from US $0.78 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.56 |
||
