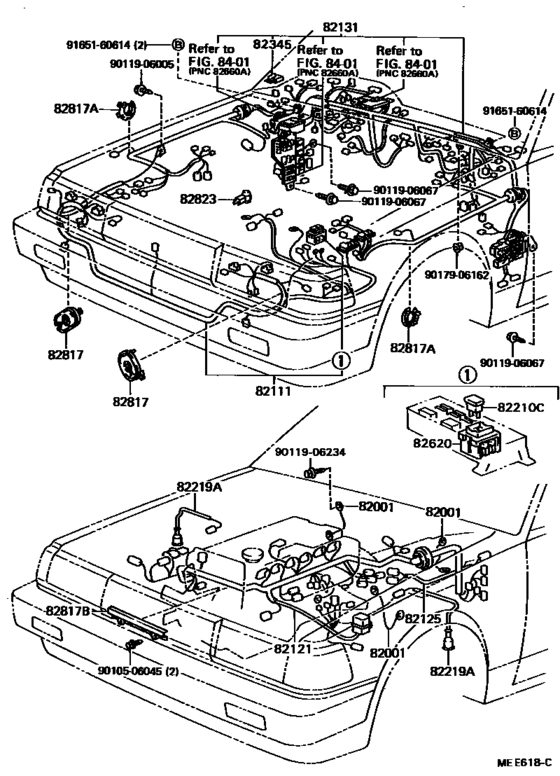

Wiring & Clamp ([08.1984 - ] (8408- )GX71) Diagram Toyota CHASER
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- GX71
- grade
- SXL
- body
- HT
- ENGINE
- 1GEU
- TRANSMISSION
- MTM
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 5F
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07109 Cable, Bond, No.1[08.1984 - 05.1988] GX71..EFI,TWT ENGINE-COWL |
90980-07109 |
US $7.51 |
||
|
82001
|
82001
90980-07119 Cable, Bond, No.1[08.1984 - 08.1986] GX71,MX71,SX70,YX70 CLUTCH-MEMBER |
90980-07119 |
US $9.03 |
||
|
82001
|
82001
90980-07252 Cable, Bond, No.1[08.1984 - 08.1986] GX71,MX71,SX70,YX70 MISSION-MEMBER |
90980-07252 |
US $9.03 |
||
|
82001
|
82001
90980-07309 Cable, Bond, No.1[05.1988 - 08.1988] GX71..EFI,TWT ENGINE-COWL |
90980-07309 |
US $12.38 |
||
|
82111
|
82111
82111-22420 Wire, Engine Room Main[08.1984 - 12.1985] GX71..EFI |
82111-22420 |
US $471.74 |
||
| replacement | |||||
|
82111
|
82111
82111-22421 Wire, Engine Room Main[08.1984 - 12.1985] GX71..EFI |
82111-22421 |
US $471.74 |
||
|
82111
|
82111
82111-22421 Wire, Engine Room Main[12.1985 - 08.1986] GX71..EFI |
82111-22421 |
US $471.74 |
||
|
82111
|
82111
82111-22422 Wire, Engine Room Main[08.1986 - 11.1986] GX71..EFI |
82111-22422 |
US $548.91 |
||
|
82111
|
82111
82111-22423 Wire, Engine Room Main[11.1986 - 08.1988] GX71..EFI |
82111-22423 |
US $550.37 |
||
|
82121
|
82121
82121-22241 Wire, Engine[08.1986 - 08.1988] GX71..EFI |
82121-22241 |
US $848.85 |
||
|
82121
|
82121
82121-22330
Wire, Engine
[08.1984 - 08.1986] GX71..5F..EFI |
82121-22330 |
— | ||
|
82125
|
82125
82125-22030 Wire, Transmission[08.1986 - 08.1988] GX71,LX70,SX70..5F |
82125-22030 |
US $31.16 |
||
|
82131
|
82131
82131-22570
Wire, Cowl
[08.1984 - 09.1985] GX71..SXL W/*PW OR FENDER,*RCM |
82131-22570 |
— | ||
|
82131
|
82131
82131-22571
Wire, Cowl
[09.1985 - 08.1986] GX71..SXL |
82131-22571 |
— | ||
|
82131
|
82131
82131-22572 Wire, Cowl[08.1986 - 09.1987] GX71..SXL |
82131-22572 |
US $2,052.96 |
||
|
82131
|
82131
82131-22573 Wire, Cowl[09.1987 - 08.1988] GX71..SXL |
82131-22573 |
US $2,052.96 |
||
|
82131
|
82131
82131-22580 Wire, Cowl[08.1984 - 09.1985] GX71..SXL |
82131-22580 |
US $1,805.44 |
||
| replacement | |||||
|
82131
|
82131
82131-22570
Wire, Cowl
[08.1984 - 09.1985] GX71..SXL |
82131-22570 |
— | ||
|
82210C
|
82210C
90982-08188 Fusible Link[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# ３０Ａ，メス端子,30A,AM2 |
90982-08188 |
from US $4.17 |
||
|
82210C
|
82210C
90982-08189 Fusible Link[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# ４０Ａ，メス端子,40A |
90982-08189 |
US $7.88 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[08.1984 - 08.1986] GX71,LX70,MX71,SX70,YX70 ８０Ａ，オス端子,80A |
90982-08203 |
from US $7.23 |
||
|
82210C
|
82210C
90982-08245 Fusible Link[12.1985 - 08.1988] GX71..EFI WIRE TYPE |
90982-08245 |
US $17.04 |
||
|
82210C
|
82210C
90982-08246 Fusible Link[08.1986 - 08.1988] GX71..EFI １００Ａ，オス端子,100A |
90982-08246 |
from US $7.29 |
||
|
82620
|
82620
82602-22150 Block Assy, Fusible Link[08.1984 - 12.1985] GX71..EFI |
82602-22150 |
US $26.94 |
||
|
82817
|
82817
82817-22420 Protector, Wiring Harness, No.1[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# |
82817-22420 |
US $2.77 |
||
|
82817A
|
82817A
82817-32010
Protector, Wiring Harness, No.1
[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# |
82817-32010 |
— | ||
|
82823
|
82823
82823-20040 Cap, Terminal, No.1[08.1984 - 10.1985] GX71,SX70 ALTERNATOR(B)TERMINAL |
82823-20040 |
US $6.99 |
||
|
82823
|
82823
82823-22060 Cap, Terminal, No.1[08.1986 - 08.1988] GX71 ALTERNATOR(B)TERMINAL |
82823-22060 |
US $16.31 |
||
|
9010506045
|
9010506045
90105-06045 BOLT |
90105-06045 |
US $3.94 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.97 |
||
|
9011906234
|
9011906234
90119-06234 New Genuine Part |
90119-06234 |
US $1.75 |
||
|
9017906162
|
9017906162
90179-06162
New Genuine Part
|
90179-06162 |
— | ||
| replacement | |||||
|
9017906162
|
9017906162
90179-06308 NUT |
90179-06308 |
from US $0.92 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
