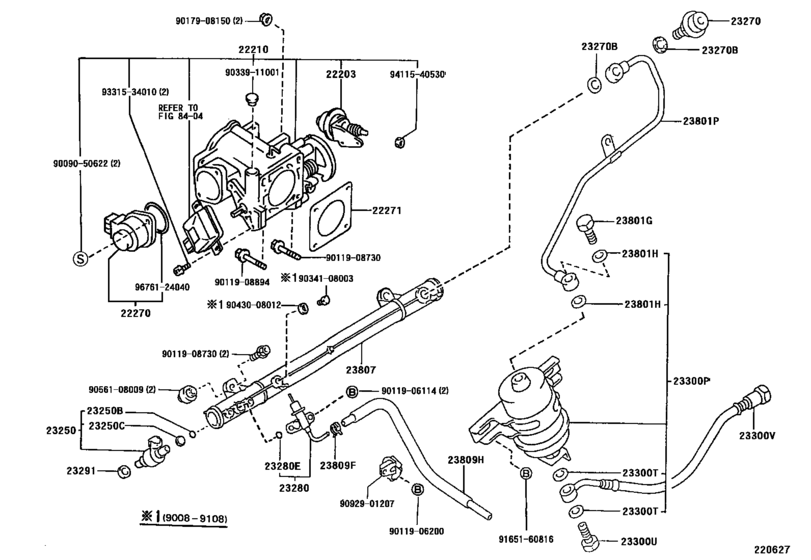

Fuel Injection System ([08.1990 - ] (9008- )1GFE) Diagram Toyota CHASER
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- GX81
- grade
- AVT
- body
- HT
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- From
- 08.1988
- To
- 10.1992
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22203
|
22203
22203-70080
Dash Pot Sub-Assy(For Throttle Body)
[08.1988 - 10.1992] 1GFE..GX81 |
22203-70080 |
— | ||
|
22210
|
22210
22210-70270
Body Assy, Throttle
[08.1988 - 08.1990] 1GFE..GX81..4FC |
22210-70270 |
— | ||
|
22210
|
22210
22210-70320 Body Assy, Throttle[08.1990 - 10.1992] 1GFE..GX81 |
22210-70320 |
US $1,616.16 |
||
|
22270
|
22270
17630-70030
Valve Assy, Idle Speed Control(For Thlottle Body)
[08.1988 - 08.1990] 1GFE..GX81 |
17630-70030 |
— | ||
|
22270
|
22270
22270-70120 Valve Assy, Idle Speed Control(For Thlottle Body)[08.1990 - 10.1992] 1GFE..GX81 |
22270-70120 |
US $1,126.94 |
||
|
22271
|
22271
22271-70020
Gasket, Throttle Body
[08.1988 - 07.1990] 1GFE..GX81 |
22271-70020 |
— | ||
| replacement | |||||
|
22271
|
22271
22271-70021 Gasket, Throttle Body[08.1988 - 07.1990] 1GFE..GX81 |
22271-70021 |
from US $2.81 |
||
|
22271
|
22271
22271-70021 Gasket, Throttle Body[07.1990 - 10.1992] 1GFE..GX81 |
22271-70021 |
from US $2.81 |
||
|
23250
|
23250
23209-70070 Injector Assy, Fuel[08.1988 - 08.1990] 1GFE..GX81 |
23209-70070 |
US $291.78 |
||
|
23250
|
23250
23209-70100 Injector Assy, Fuel[08.1990 - 10.1992] 1GFE..GX81 |
23209-70100 |
US $275.18 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[08.1988 - 10.1992] 1JZGE..JZX81; 7MGE..MX83; 1GFE,1GG#..GX81 |
90301-07001 |
from US $2.81 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[08.1988 - 10.1992] 1JZGE..JZX81; 7MGE..MX83; 1GFE,1GG#..GX81 |
90480-13005 |
from US $2.34 |
||
|
23270
|
23270
23270-28030 Damper Assy, Fuel Pressure Pulsation[08.1988 - 10.1992] 1GFE,1GGTE..GX81 |
23270-28030 |
US $91.73 |
||
| replacement | |||||
|
23270
|
23270
23207-46010
Damper Assy, Fuel Pressure Pulsation
[08.1988 - 10.1992] 1GFE,1GGTE..GX81 |
23207-46010 |
— | ||
|
23270B
|
23270B
23232-28010
Gasket(For Fuel Pump Hose)
[08.1988 - 02.1990] 1GFE,1GG#..GX81 DAMPER SIDE |
23232-28010 |
— | ||
| replacement | |||||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[08.1988 - 02.1990] 1GFE,1GG#..GX81 DAMPER SIDE |
23232-41081 |
from US $1.40 |
||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[02.1990 - 10.1992] 1JZGTE..JZX81 DAMPER SIDE,*53 & (9008-9210)*54; 1GFE,1GGE,1GGZE..GX81 DAMPER SIDE,*53 & (9008-9210)*54 |
23232-41081 |
from US $1.40 |
||
|
23270B
|
23270B
90430-12005 Gasket(For Water Hole)[08.1988 - 11.1988] 1GGE..GX81 DELIVERY PIPE SIDE; 1GFE,1GG#..GX81 DERIVERY PIPE SIDE |
90430-12005 |
from US $0.68 |
||
|
23270B
|
23270B
90430-12026 Gasket[02.1990 - 10.1992] 1JZGE..JZX81 DELIVERY PIPE SIDE; 1JZGTE..JZX81 FILTER SIDE; 1GFE,1GGE,1GGZE..GX81 DELIVERY PIPE SIDE |
90430-12026 |
from US $0.82 |
||
|
23280
|
23280
23280-70070
Regulator Assy, Fuel Pressure
[08.1988 - 10.1992] 1GFE..GX81 |
23280-70070 |
— | ||
|
23280E
|
23280E
90301-07001 Ring, O(For Fuel Injector)[08.1988 - 10.1992] 1GFE..GX81; 4SFI..SX80 |
90301-07001 |
from US $2.81 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[08.1988 - 10.1992] 1JZGE..JZX81; 7MGE..MX83; 1GFE,1GG#..GX81 |
23291-41010 |
from US $2.65 |
||
|
23300P
|
23300P
23300-79145 Filter, Fuel(For Efi)[08.1988 - 08.1990] 1GFE..GX81 |
23300-79145 |
US $106.29 |
||
| replacement | |||||
|
23300P
|
23300P
23300-79146
Filter, Fuel(For Efi)
[08.1988 - 08.1990] 1GFE..GX81 |
23300-79146 |
— | ||
|
23300P
|
23300P
23300-79146
Filter, Fuel(For Efi)
[08.1990 - 10.1992] 1GFE..GX81 |
23300-79146 |
— | ||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[08.1988 - 07.1991] 4SF#..SX80; 1GFE,1GG#..GX81; 1JZ#..JZX81 |
90430-12005 |
from US $0.68 |
||
|
23300T
|
23300T
90430-12026 Gasket[07.1991 - 08.1991] 1JZ#..JZX81; 1G#..GX81 |
90430-12026 |
from US $0.82 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1988 - 10.1992] 1JZGTE..JZX81; 4SF#..SX80; 1GFE,1GG#..GX81 |
90401-12097 |
from US $2.94 |
||
|
23300V
|
23300V
90923-01328
Hose, Fuel(For Fuel Inlet)
[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
90923-01328 |
— | ||
|
23801G
|
23801G
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1988 - 01.1989] 1GFE,1GG#..GX81 |
90401-12097 |
from US $2.94 |
||
|
23801H
|
23801H
90430-12005 Gasket(For Water Hole)[08.1988 - 02.1990] 7MGE..MX83; 4SFI..SX80; 1GFE,1GG#..GX81 |
90430-12005 |
from US $0.68 |
||
|
23801H
|
23801H
90430-12026 Gasket[02.1990 - 07.1990] 1GFE,1GGE,1GGZE..GX81 *53 |
90430-12026 |
from US $0.82 |
||
|
23801P
|
23801P
23801-70060 Pipe Sub-Assy, Fuel, No.1[08.1988 - 10.1992] 1GFE..GX81 |
23801-70060 |
US $58.82 |
||
|
23807
|
23807
23807-70040 Pipe Sub-Assy, Fuel Delivery[08.1988 - 08.1991] 1GFE..GX81 |
23807-70040 |
US $246.06 |
||
|
23807
|
23807
23807-70060 Pipe Sub-Assy, Fuel Delivery[08.1991 - 10.1992] 1GFE..GX81 |
23807-70060 |
US $243.15 |
||
|
23809F
|
23809F
90467-13051 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
90467-13051 |
US $3.49 |
||
| replacement | |||||
|
23809F
|
23809F
96135-51300 Clamp, Hose[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
96135-51300 |
from US $2.13 |
||
|
23809H
|
23809H
90447-15025 Hose, Fuel Pipe Support To Regulator[08.1988 - 10.1992] 1GFE..GX81 |
90447-15025 |
US $5.24 |
||
|
9009050622
|
9009050622
90090-50622
New Genuine Part
|
90090-50622 |
— | ||
|
9011906114
|
9011906114
90119-06114
New Genuine Part
|
90119-06114 |
— | ||
| replacement | |||||
|
9011906114
|
9011906114
90119-06206 New Genuine Part |
90119-06206 |
US $2.51 |
||
|
9011906200
|
9011906200
90119-06200 New Genuine Part |
90119-06200 |
from US $2.91 |
||
|
9011908730
|
9011908730
90119-08730 New Genuine Part |
90119-08730 |
US $1.89 |
||
|
9011908894
|
9011908894
90119-08894 New Genuine Part |
90119-08894 |
US $3.49 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
|
9033911001
|
9033911001
90339-11001
New Genuine Part
|
90339-11001 |
— | ||
|
9034108003
|
9034108003
90341-08003 New Genuine Part |
90341-08003 |
US $2.48 |
||
|
9043008012
|
9043008012
90430-08012 Gasket |
90430-08012 |
US $2.15 |
||
|
9056108009
|
9056108009
90561-08009 Spacer, No.1(For Delivery Pipe) |
90561-08009 |
US $3.58 |
||
|
9092901207
|
9092901207
90929-01207 New Genuine Part |
90929-01207 |
US $4.37 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9331534010
|
9331534010
93315-34010
New Genuine Part
|
93315-34010 |
— | ||
|
9411540530
|
9411540530
94115-40530 New Genuine Part |
94115-40530 |
US $1.46 |
||
|
9676124040
|
9676124040
96761-24040 Ring, O(For Water Pump) |
96761-24040 |
from US $2.75 |
||
