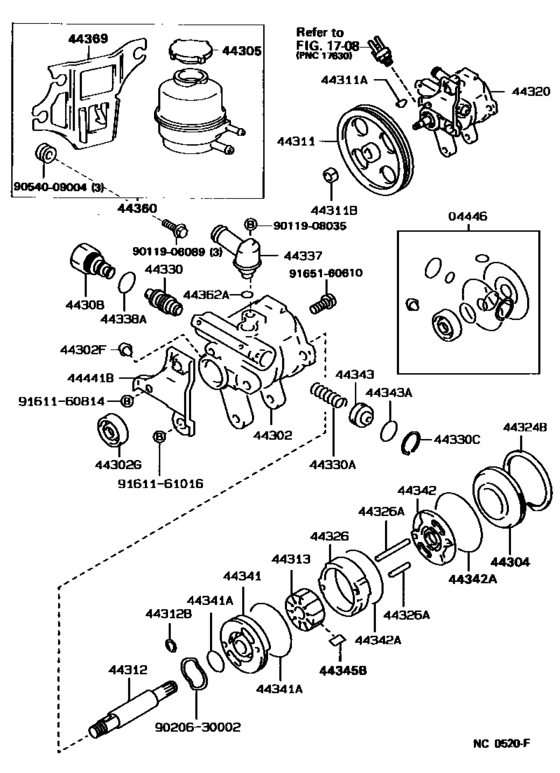

Vane Pump & Reservoir (Power Steering) ([08.1988 - ] (8808- )GX81..HTWC) Diagram Toyota CHASER
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- GX81
- grade
- AVT
- body
- HT
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- From
- 08.1988
- To
- 10.1992
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-20030
Gasket Kit, Power Steering Pump
[08.1988 - 10.1992] GX81..HTWC |
04446-20030 |
— | ||
| replacement | |||||
|
04446
|
04446
04446-20031 Gasket Kit, Power Steering Pump[08.1988 - 10.1992] GX81..HTWC |
04446-20031 |
from US $38.92 |
||
|
44302
|
44302
44302-22050
Housing Sub-Assy, Vane Pump, Front
[08.1988 - 10.1992] GX81..HTWC |
44302-22050 |
— | ||
| replacement | |||||
|
44302
|
44302
44302-22070
Housing Sub-Assy, Vane Pump, Front
[08.1988 - 10.1992] GX81..HTWC |
44302-22070 |
— | ||
|
44302F
|
44302F
90410-05035 Seat, Union(For Valve Body Housing)[08.1988 - 10.1992] GX81,MX83,YX80 |
90410-05035 |
US $2.89 |
||
|
44302G
|
44302G
90311-18007 Seal, Oil, No.2(For Vane Pump Housing)[08.1988 - 10.1992] GX81..HTWC |
90311-18007 |
from US $4.30 |
||
|
44304
|
44304
44324-12031 Housing Sub-Assy, Vane Pump, Rear[08.1988 - 10.1992] GX81..HTWC |
44324-12031 |
US $81.54 |
||
|
44305
|
44305
44305-22030
Cap Sub-Assy, Vane Pump Oil Reservoir
[08.1988 - 12.1990] GX81,LX80,SX80..CI,DSL,HTWC,TD,TWC,TWT |
44305-22030 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-22050 Cap Sub-Assy, Vane Pump Oil ReservoirVANE PUMP OIL RESERVOIR [08.1988 - 12.1990] GX81,LX80,SX80..CI,DSL,HTWC,TD,TWC,TWT |
44305-22050 |
from US $17.88 |
||
|
44305
|
44305
44305-32030 Cap Sub-Assy, Vane Pump Oil Reservoir[12.1990 - 10.1992] JZX81..TWT;GX81,LX80,SX80 |
44305-32030 |
US $24.61 |
||
| replacement | |||||
|
44305
|
44305
44305-28051 Cap Sub-Assy, Vane Pump Oil Reservoir[12.1990 - 10.1992] JZX81..TWT;GX81,LX80,SX80 |
44305-28051 |
from US $15.97 |
||
|
44308
|
44308
44308-22050 Union Sub-Assy, Pressure Port[08.1988 - 10.1992] GX81..HTWC |
44308-22050 |
US $41.58 |
||
|
44311
|
44311
44311-22050 Pulley, Vane Pump[08.1988 - 10.1992] GX81..HTWC |
44311-22050 |
US $101.34 |
||
|
44311A
|
44311A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[08.1988 - 12.1990] GX81,LX80,MX83,SX80,YX80 |
90280-05008 |
US $3.94 |
||
|
44311B
|
44311B
90179-12022 Nut(For Vane Pump Pulley)[08.1988 - 12.1990] GX81,JZX81,MX83 |
90179-12022 |
US $6.63 |
||
|
44312
|
44312
44312-12030 Shaft, Vane Pump[08.1988 - 10.1992] GX81..HTWC |
44312-12030 |
from US $16.11 |
||
|
44312B
|
44312B
90520-10003 Ring, Snap, No.1(For Vane Pump Shaft)[08.1988 - 10.1992] GX81,MX83 |
90520-10003 |
US $1.22 |
||
|
44313
|
44313
44313-22040 Rotor, Vane Pump[08.1988 - 10.1988] GX81..HTWC マーク無し |
44313-22040 |
US $103.38 |
||
|
44313
|
44313
44313-22050 Rotor, Vane Pump[08.1988 - 10.1988] GX81..HTWC マーク １ |
44313-22050 |
US $101.34 |
||
|
44313
|
44313
44313-22060 Rotor, Vane Pump[08.1988 - 10.1988] GX81..HTWC マーク ２ |
44313-22060 |
US $103.38 |
||
|
44313
|
44313
44313-22070 Rotor, Vane Pump[08.1988 - 10.1988] GX81..HTWC マーク ３ |
44313-22070 |
US $103.38 |
||
|
44313
|
44313
44313-22080 Rotor, Vane Pump[08.1988 - 10.1988] GX81..HTWC マーク ４ |
44313-22080 |
US $103.38 |
||
|
44320
|
44320
44320-22340 Pump Assy, Vane[08.1988 - 10.1992] GX81..HTWC |
44320-22340 |
US $1,108.02 |
||
| replacement | |||||
|
44320
|
44320
44320-22480 Pump Assy, Vane[08.1988 - 10.1992] GX81..HTWC |
44320-22480 |
US $1,100.74 |
||
|
44324B
|
44324B
90521-62002 Ring, Snap, No.1(For Vane Pump Housing)[08.1988 - 10.1992] GX81..HTWC |
90521-62002 |
US $3.14 |
||
|
44326
|
44326
44325-30100 Ring, Cam(For Vane Pump)[08.1988 - 10.1992] GX81..HTWC マーク無し |
44325-30100 |
US $113.57 |
||
|
44326
|
44326
44325-30110 Ring, Cam(For Vane Pump)[08.1988 - 10.1992] GX81..HTWC マーク １ |
44325-30110 |
US $116.48 |
||
|
44326
|
44326
44325-30120 Ring, Cam(For Vane Pump)[08.1988 - 10.1992] GX81..HTWC マーク ２ |
44325-30120 |
US $116.48 |
||
|
44326
|
44326
44325-30130 Ring, Cam(For Vane Pump)[08.1988 - 10.1992] GX81..HTWC マーク ３ |
44325-30130 |
US $116.48 |
||
|
44326
|
44326
44325-30140 Ring, Cam(For Vane Pump)[08.1988 - 10.1992] GX81..HTWC マーク ４ |
44325-30140 |
US $116.48 |
||
|
44326A
|
44326A
90250-04047 Pin, Straight(For Vane Pump Cam Ring)[08.1988 - 10.1992] GX81..HTWC 長さ＝２８，外径＝４．０ |
90250-04047 |
US $1.05 |
||
|
44326A
|
44326A
90250-04049 Pin, Straight(For Vane Pump Cam Ring)[08.1988 - 10.1992] GX81..HTWC 長さ＝４３，外径＝４．０ |
90250-04049 |
US $2.62 |
||
|
44330
|
44330
44330-14010
Valve Assy, Flow Control
[08.1988 - 06.1989] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ａ |
44330-14010 |
— | ||
| replacement | |||||
|
44330
|
44330
44330-35191 Valve Assy, Flow Control[08.1988 - 06.1989] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ａ |
44330-35191 |
US $116.48 |
||
|
44330
|
44330
44330-14020 Valve Assy, Flow Control[08.1988 - 06.1989] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ｂ |
44330-14020 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-35201 Valve Assy, Flow Control[08.1988 - 06.1989] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ｂ |
44330-35201 |
US $116.48 |
||
|
44330
|
44330
44330-14030 Valve Assy, Flow Control[08.1988 - 06.1989] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ｃ |
44330-14030 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-35211 Valve Assy, Flow Control[08.1988 - 06.1989] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ｃ |
44330-35211 |
US $116.48 |
||
|
44330
|
44330
44330-14040 Valve Assy, Flow Control[08.1988 - 06.1989] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ｄ |
44330-14040 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-35221 Valve Assy, Flow Control[08.1988 - 06.1989] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ｄ |
44330-35221 |
US $116.48 |
||
|
44330
|
44330
44330-14050 Valve Assy, Flow Control[08.1988 - 06.1989] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ｅ |
44330-14050 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-35231 Valve Assy, Flow Control[08.1988 - 06.1989] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ｅ |
44330-35231 |
US $116.48 |
||
|
44330
|
44330
44330-14060 Valve Assy, Flow Control[08.1988 - 06.1989] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ｆ |
44330-14060 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-35241 Valve Assy, Flow Control[08.1988 - 06.1989] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ｆ |
44330-35241 |
US $116.48 |
||
|
44330
|
44330
44330-20010 Valve Assy, Flow Control[06.1989 - 10.1992] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ａ |
44330-20010 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-35191 Valve Assy, Flow Control[06.1989 - 10.1992] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ａ |
44330-35191 |
US $116.48 |
||
|
44330
|
44330
44330-20020 Valve Assy, Flow Control[06.1989 - 10.1992] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ｂ |
44330-20020 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-35201 Valve Assy, Flow Control[06.1989 - 10.1992] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ｂ |
44330-35201 |
US $116.48 |
||
|
44330
|
44330
44330-20030 Valve Assy, Flow Control[06.1989 - 10.1992] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ｃ |
44330-20030 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-35211 Valve Assy, Flow Control[06.1989 - 10.1992] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ｃ |
44330-35211 |
US $116.48 |
||
|
44330
|
44330
44330-20040 Valve Assy, Flow Control[06.1989 - 10.1992] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ｄ |
44330-20040 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-35221 Valve Assy, Flow Control[06.1989 - 10.1992] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ｄ |
44330-35221 |
US $116.48 |
||
|
44330
|
44330
44330-20050 Valve Assy, Flow Control[06.1989 - 10.1992] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ｅ |
44330-20050 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-35231 Valve Assy, Flow Control[06.1989 - 10.1992] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ｅ |
44330-35231 |
US $116.48 |
||
|
44330
|
44330
44330-20060 Valve Assy, Flow Control[06.1989 - 10.1992] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ｆ |
44330-20060 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-35241 Valve Assy, Flow Control[06.1989 - 10.1992] GX81,LX80,YX80..DSL,HTWC,LPG,TD マーク Ｆ |
44330-35241 |
US $116.48 |
||
|
44330A
|
44330A
90501-12103 Spring, Compression(For Flow Control Valve)[08.1988 - 10.1992] GX81,LX80,MX83,SX80,YX80 |
90501-12103 |
US $2.87 |
||
|
44330C
|
44330C
96151-01700 Ring, Snap(For Flow Control Valve)[08.1988 - 10.1992] GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD |
96151-01700 |
US $3.30 |
||
|
44337
|
44337
44337-22060
Union, Power Steering Suction Port
[08.1988 - 10.1992] GX81..HTWC |
44337-22060 |
— | ||
|
44338A
|
44338A
90301-19003
Ring, O(For Pressure Port Union)
[08.1988 - 10.1992] JZX81;GX81..HTWC 内径＝１９．５，外径＝２２．５ |
90301-19003 |
— | ||
| replacement | |||||
|
44338A
|
44338A
90301-19018 Ring, O(For Pressure Port Union)[08.1988 - 10.1992] JZX81;GX81..HTWC 内径＝１９．５，外径＝２２．５ |
90301-19018 |
from US $2.18 |
||
|
44341
|
44341
44341-32010 Plate, Vane Pump Side, Front[08.1988 - 10.1992] GX81..HTWC |
44341-32010 |
US $39.17 |
||
|
44341A
|
44341A
90301-25001
Ring, O(For Vane Pump Front Side Plate)
[08.1988 - 10.1992] GX81..HTWC 内側 |
90301-25001 |
— | ||
| replacement | |||||
|
44341A
|
44341A
90301-25008 Ring, O(For Vane Pump Front Side Plate)[08.1988 - 10.1992] GX81..HTWC 内側 |
90301-25008 |
US $3.72 |
||
|
44341A
|
44341A
90301-52001 Ring, O(For Pump Housing Rear)[08.1988 - 10.1992] GX81..HTWC 外側 |
90301-52001 |
from US $2.87 |
||
|
44342
|
44342
44342-32010 Plate, Vane Pump Side, Rear[08.1988 - 10.1992] GX81..HTWC |
44342-32010 |
US $55.91 |
||
|
44342A
|
44342A
90301-52001 Ring, O(For Pump Housing Rear)[08.1988 - 10.1992] GX81..HTWC |
90301-52001 |
from US $2.87 |
||
|
44343
|
44343
44343-12040 Seat, Flow Control Spring[08.1988 - 10.1992] GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD |
44343-12040 |
US $9.43 |
||
|
44343A
|
44343A
96711-19014 O-Ring[08.1988 - 10.1992] GX81,LX80,SX80,YX80..DSL,HTWC,LPG,TD |
96711-19014 |
from US $2.24 |
||
|
44345B
|
44345B
44345-12010 Plate, Vane Pump[08.1988 - 10.1992] GX81,LX80,MX83,SX80,YX80 長さ＝１４．９９７ |
44345-12010 |
US $11.83 |
||
|
44345B
|
44345B
44345-12020 Plate, Vane Pump[08.1988 - 10.1992] GX81,LX80,MX83,SX80,YX80 長さ＝１４．９９５ |
44345-12020 |
US $6.12 |
||
|
44345B
|
44345B
44345-12030 Plate, Vane Pump[08.1988 - 10.1992] GX81,LX80,MX83,SX80,YX80 長さ＝１４．９９３ |
44345-12030 |
US $6.12 |
||
|
44345B
|
44345B
44345-12040 Plate, Vane Pump[08.1988 - 10.1992] GX81,LX80,MX83,SX80,YX80 長さ＝１４．９９１ |
44345-12040 |
US $6.12 |
||
|
44345B
|
44345B
44345-12050 Plate, Vane Pump[08.1988 - 10.1992] GX81,LX80,MX83,SX80,YX80 長さ＝１４．９８９ |
44345-12050 |
US $6.12 |
||
|
44360
|
44360
44360-22140 Reservoir Assy, Vane Pump Oil[08.1988 - 10.1992] GX81,SX80..CI,HTWC,TWC,TWT |
44360-22140 |
US $126.72 |
||
|
44362A
|
44362A
90301-12003
Ring, O(For Power Steering Suction Port)
[08.1988 - 10.1992] GX81..HTWC |
90301-12003 |
— | ||
| replacement | |||||
|
44362A
|
44362A
90301-11016 Ring, O(For Power Steering Suction Port)[08.1988 - 10.1992] GX81..HTWC |
90301-11016 |
from US $1.48 |
||
|
44369
|
44369
44369-22100 Bracket, Oil Reservoir, No.1[08.1988 - 10.1992] GX81,SX80..CI,HTWC,TWC,TWT |
44369-22100 |
US $20.68 |
||
|
44441B
|
44441B
44441-22030 Bracket, Pump, Front[08.1988 - 10.1992] GX81..HTWC |
44441-22030 |
US $29.27 |
||
|
9011906089
|
9011906089
90119-06089 New Genuine Part |
90119-06089 |
US $2.87 |
||
|
9011908035
|
9011908035
90119-08035 New Genuine Part |
90119-08035 |
US $1.38 |
||
|
9020630002
|
9020630002
90206-30002 New Genuine Part |
90206-30002 |
US $4.37 |
||
|
9054009004
|
9054009004
90540-09004 Cushion(For Vane Pump Oil Reservoir) |
90540-09004 |
US $2.87 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161161016
|
9161161016
91611-61016
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-61016 |
— | ||
| replacement | |||||
|
9161161016
|
9161161016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.51 |
||
|
9165160610
|
9165160610
91651-60610
BOLT
|
91651-60610 |
— | ||
| replacement | |||||
|
9165160610
|
9165160610
91651-B0610 BOLTWWASHER |
91651-B0610 |
US $2.15 |
||
