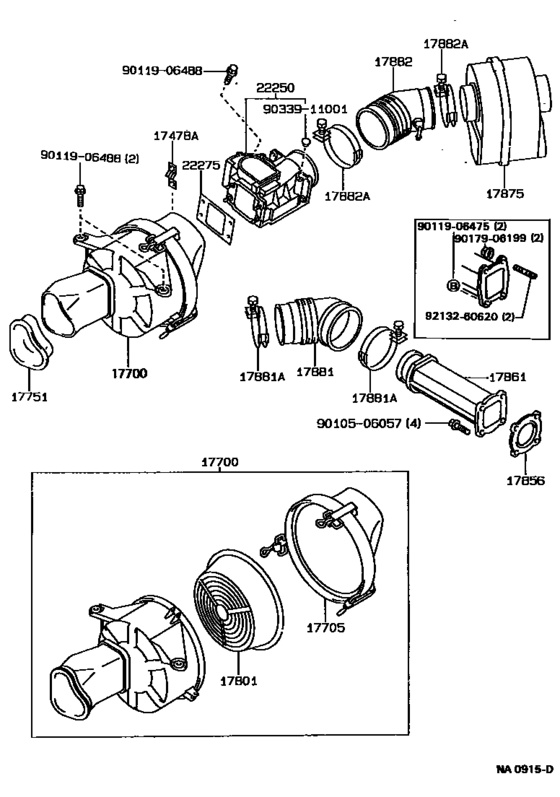

Air Cleaner ([08.1988 - 08.1990] (8808-9008)1GGZE) Diagram Toyota CHASER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- GX81
- grade
- AVTG
- body
- HT
- ENGINE
- 1GGZE
- TRANSMISSION
- ATM
- From
- 08.1988
- To
- 08.1990
- Gear Shift Type
- 4FC
- Fuel Induction
- SPC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17478A
|
17478A
17478-43010
Plate, Lock
[08.1988 - 08.1990] 1GGTE,1GGZE..GX81 |
17478-43010 |
— | ||
|
17700
|
17700
17700-70130
Cleaner Assy, Air
[08.1988 - 08.1990] 1GGTE,1GGZE..GX81 |
17700-70130 |
— | ||
|
17705
|
17705
17705-70070
Cap Sub-Assy, Air Cleaner
[08.1988 - 08.1990] 1GGTE,1GGZE..GX81 |
17705-70070 |
— | ||
|
17751
|
17751
17751-70020
Inlet, Air Cleaner, No.1
[08.1988 - 10.1992] 7MGE..MX83; 4SF#..SX80; 1GFE,1GG#..GX81; 1JZ#..JZX81 |
17751-70020 |
— | ||
|
17801
|
17801
17801-70020 Element Sub-Assy, Air Cleaner Filter[08.1988 - 10.1992] 7MGE..MX83; 4SF#..SX80; 1GFE,1GG#..GX81 |
17801-70020 |
from US $46.14 |
||
|
17856
|
17856
17856-70030 Gasket, Air Intake Flange[08.1989 - 08.1990] 1GGZE..GX81 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
17856-70030 |
US $6.84 |
||
|
17856
|
17856
17856-88300 Gasket, Air Intake Flange[08.1988 - 08.1989] 1GGE,1GGZE..GX81 |
17856-88300 |
US $15.95 |
||
|
17861
|
17861
17861-70010 Connector, Intake Air[08.1988 - 08.1989] 1GGZE..GX81 |
17861-70010 |
US $96.10 |
||
|
17861
|
17861
17861-70040 Connector, Intake Air[08.1989 - 08.1990] 1GGZE..GX81 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
17861-70040 |
US $155.79 |
||
|
17875
|
17875
17875-70130 Pipe, Intake Air Connector[08.1988 - 08.1990] 1GGZE..GX81 |
17875-70130 |
US $115.02 |
||
|
17881
|
17881
17881-70220 Hose, Air Cleaner, No.1[08.1988 - 10.1992] 1GGE,1GGZE..GX81 |
17881-70220 |
US $49.94 |
||
|
17881A
|
17881A
96111-10830 Clamp, Hose(For Air Connector)[08.1988 - 08.1990] 1GGE,1GGZE..GX81 PIPE SIDE |
96111-10830 |
from US $3.23 |
||
|
17881A
|
17881A
96111-10950 Clamp(For Air Cleaner Hose, No.1)[08.1988 - 10.1992] 1GGE,1GGZE..GX81 エンジン側 |
96111-10950 |
from US $2.79 |
||
|
17882
|
17882
17882-70130
Hose, Air Cleaner, No.2
[08.1988 - 10.1992] 1GFE,1GGE,1GGZE..GX81 |
17882-70130 |
— | ||
|
17882A
|
17882A
96111-10830 Clamp, Hose(For Air Connector)[08.1988 - 08.1990] 1GGE,1GGZE..GX81 PIPE SIDE; 7MGE..MX83 PIPE SIDE |
96111-10830 |
from US $3.23 |
||
|
17882A
|
17882A
96111-10900 Clamp, Hose[08.1988 - 10.1992] 1GGE,1GGZE..GX81 AIR CLEANER SIDE |
96111-10900 |
from US $1.19 |
||
|
22250
|
22250
22250-70240
Meter Assy, Intake Air Flow
[08.1988 - 08.1990] 1GGZE..GX81 |
22250-70240 |
— | ||
|
22275
|
22275
22275-43010 Gasket, Air Flow Meter[08.1988 - 08.1990] 1GGTE,1GGZE..GX81 |
22275-43010 |
from US $15.95 |
||
|
9010506057
|
9010506057
90105-06057
New Genuine Part
|
90105-06057 |
— | ||
| replacement | |||||
|
9010506057
|
9010506057
90105-06133 Bolt |
90105-06133 |
US $2.15 |
||
|
9011906475
|
9011906475
90119-06475 Bolt, W/washer (For Transmission Oil Pump Cover) |
90119-06475 |
US $1.60 |
||
| replacement | |||||
|
9011906475
|
9011906475
91611-60622 Bolt, W/washer (For Transmission Oil Pump Cover) |
91611-60622 |
US $2.62 |
||
|
9011906488
|
9011906488
90119-06488 New Genuine Part |
90119-06488 |
US $1.22 |
||
|
9017906199
|
9017906199
90179-06199 NUT |
90179-06199 |
US $1.25 |
||
|
9033911001
|
9033911001
90339-11001
New Genuine Part
|
90339-11001 |
— | ||
|
9213260620
|
9213260620
92132-60620 New Genuine Part |
92132-60620 |
US $1.16 |
||
