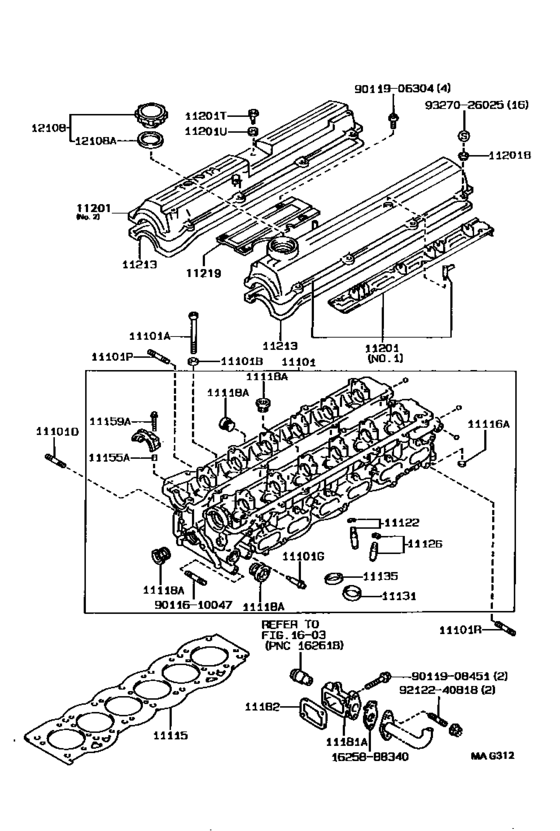

Cylinder Head ([08.1988 - 08.1990] (8808-9008)1GGZE) Diagram Toyota CHASER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- GX81
- grade
- AVTG
- body
- HT
- ENGINE
- 1GGZE
- TRANSMISSION
- ATM
- From
- 08.1988
- To
- 08.1990
- Gear Shift Type
- 4FC
- Fuel Induction
- SPC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-70023 Head Sub-Assy, Cylinder[08.1988 - 08.1989] 1GGE,1GGZE..GX81 *53 |
11101-70023 |
US $2,416.96 |
||
| replacement | |||||
|
11101
|
11101
11101-70025 Head Sub-Assy, Cylinder[08.1988 - 08.1989] 1GGE,1GGZE..GX81 *53 |
11101-70025 |
US $2,373.28 |
||
|
11101
|
11101
11101-70024 Head Sub-Assy, Cylinder[08.1989 - 03.1990] 1GGE,1GGZE..GX81 *53 |
11101-70024 |
US $2,431.52 |
||
| replacement | |||||
|
11101
|
11101
11101-70025 Head Sub-Assy, Cylinder[08.1989 - 03.1990] 1GGE,1GGZE..GX81 *53 |
11101-70025 |
US $2,373.28 |
||
|
11101
|
11101
11101-70025 Head Sub-Assy, Cylinder[03.1990 - 10.1992] 1GGE,1GGZE..GX81 *53 |
11101-70025 |
US $2,373.28 |
||
|
11101A
|
11101A
90110-10003 Bolt(For Cylinder Head Set)[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
90110-10003 |
from US $3.84 |
||
|
11101B
|
11101B
90201-10050 Washer, Plate(For Cylinder Head Set)[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
90201-10050 |
US $3.05 |
||
|
11101D
|
11101D
90116-10130 Bolt, Stud(For Water Outlet)[08.1988 - 08.1990] 1GGZE..GX81 |
90116-10130 |
US $5.68 |
||
|
11101G
|
11101G
90072-40625
Union(For Cylinder Head)
[08.1988 - 08.1989] 1GGE,1GGZE..GX81 *53 |
90072-40625 |
— | ||
|
11101G
|
11101G
90406-08011 Union(For Cylinder Head)[08.1989 - 08.1990] 1GGE,1GGZE..GX81 *53 |
90406-08011 |
from US $1.05 |
||
|
11101P
|
11101P
90116-08115 Bolt, Stud(For Distributor)[08.1988 - 10.1992] 1GG#..GX81 |
90116-08115 |
US $1.31 |
||
|
11101R
|
11101R
90116-06063 Bolt, Stud(For Fuel Pipe)[08.1988 - 10.1992] 1GGE,1GGZE..GX81 *53 |
90116-06063 |
US $2.15 |
||
|
11115
|
11115
11115-70031
Gasket, Cylinder Head
[08.1988 - 07.1989] 1GGZE..GX81 |
11115-70031 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-70032
Gasket, Cylinder Head
[08.1988 - 07.1989] 1GGZE..GX81 |
11115-70032 |
— | ||
|
11115
|
11115
11115-70032
Gasket, Cylinder Head
[07.1989 - 08.1990] 1GGZE..GX81 |
11115-70032 |
— | ||
|
11116A
|
11116A
96411-41800 Plug, Tight, No.1[08.1988 - 10.1992] 1GG#..GX81 |
96411-41800 |
from US $1.66 |
||
|
11118A
|
11118A
90341-27003 Plug, W/head Taper Screw, No.1[08.1988 - 10.1992] 1GG#..GX81 |
90341-27003 |
US $5.78 |
||
|
11122
|
11122
11122-16020 Bush, Intake Valve Guide[08.1988 - 10.1992] 1GGE,1GGZE..GX81 ＳＴＤ,*53 |
11122-16020 |
from US $10.26 |
||
|
11122
|
11122
11123-16020 Bush, Intake Valve Guide[08.1988 - 10.1992] 1GGE,1GGZE..GX81 Ｏ／Ｓ ０．０５,*53 |
11123-16020 |
US $11.18 |
||
|
11126
|
11126
11122-16020 Bush, Intake Valve Guide[08.1988 - 10.1992] 1GGE,1GGZE..GX81 ＳＴＤ,*53; 7MGE..MX83 ＳＴＤ,*53 |
11122-16020 |
from US $10.26 |
||
|
11126
|
11126
11123-16020 Bush, Intake Valve Guide[08.1988 - 10.1992] 1GGE,1GGZE..GX81 Ｏ／Ｓ ０．０５,*53; 7MGE..MX83 Ｏ／Ｓ ０．０５,*53 |
11123-16020 |
US $11.18 |
||
|
11131
|
11131
11131-70010 Seat, Intake Valve[08.1988 - 10.1992] 1GG#..GX81 ＳＴＤ |
11131-70010 |
US $15.87 |
||
|
11131
|
11131
11132-70010 Seat, Intake Valve[08.1988 - 10.1992] 1GG#..GX81 Ｏ／Ｓ ０．０３ |
11132-70010 |
US $16.89 |
||
|
11135
|
11135
11135-70021 Seat, Exhaust Valve[08.1988 - 10.1992] 1GFE,1GG#..GX81 ＳＴＤ |
11135-70021 |
US $18.05 |
||
|
11135
|
11135
11136-70021 Seat, Exhaust Valve[08.1988 - 10.1992] 1GFE,1GG#..GX81 Ｏ／Ｓ ０．０３ |
11136-70021 |
US $18.78 |
||
|
11155A
|
11155A
90253-10004 Pin, Ring W/head[08.1988 - 03.1990] 1GG#..GX81 |
90253-10004 |
US $2.15 |
||
|
11155A
|
11155A
90253-10006 Pin, Ring(For Camshaft Bearing Cap Setting)[03.1990 - 10.1992] 1GFE,1GGE,1GGZE..GX81 *53 |
90253-10006 |
US $0.79 |
||
|
11159A
|
11159A
90119-07002 Bolt(For Head To Camshaft Bearing Cap)[08.1988 - 10.1992] 1GG#..GX81 |
90119-07002 |
US $3.58 |
||
|
11181A
|
11181A
11181-88341 Cover, Cylinder Head, Rear[08.1988 - 08.1990] 1GGTE,1GGZE..GX81 |
11181-88341 |
US $46.59 |
||
|
11182
|
11182
11182-88300
Gasket, Cylinder Head Rear Plate
[08.1988 - 10.1992] 1GG#..GX81 |
11182-88300 |
— | ||
| replacement | |||||
|
11182
|
11182
11182-70030 Gasket, Cylinder Head Rear Plate[08.1988 - 10.1992] 1GG#..GX81 |
11182-70030 |
US $5.56 |
||
|
11201
|
11201
11201-70040 Cover Sub-Assy, Cylinder Head[08.1988 - 08.1990] 1GGZE..GX81 ＮＯ．１ |
11201-70040 |
US $297.02 |
||
|
11201
|
11201
11212-70030 Cover Sub-Assy, Cylinder Head[08.1988 - 08.1990] 1GGZE..GX81 ＮＯ．２ |
11212-70030 |
US $292.66 |
||
| replacement | |||||
|
11201
|
11201
11212-70040 Cover Sub-Assy, Cylinder Head[08.1988 - 08.1990] 1GGZE..GX81 ＮＯ．２ |
11212-70040 |
US $294.11 |
||
|
11201B
|
11201B
90210-07001 Washer, Seal(For Cylinder Head Cover)[08.1988 - 02.1990] 1GGE,1GGZE..GX81 *53 |
90210-07001 |
from US $2.09 |
||
|
11201B
|
11201B
90210-07004
Washer, Seal(For Cylinder Head Cover)
[02.1990 - 11.1990] 1GGE,1GGZE..GX81 *53 |
90210-07004 |
— | ||
| replacement | |||||
|
11201B
|
11201B
90210-07001 Washer, Seal(For Cylinder Head Cover)[02.1990 - 11.1990] 1GGE,1GGZE..GX81 *53 |
90210-07001 |
from US $2.09 |
||
|
11201T
|
11201T
90249-08089 Pin(For Cylinder Head Cover)[08.1988 - 08.1990] 1GGZE..GX81 |
90249-08089 |
US $7.86 |
||
|
11201U
|
11201U
90385-07001 Bush(For Cylinder Head Cover)[08.1988 - 10.1992] 1GGE,1GGZE..GX81 |
90385-07001 |
US $9.46 |
||
|
11213
|
11213
11213-88341 Gasket, Cylinder Head Cover[08.1988 - 08.1990] 1GGTE,1GGZE..GX81 |
11213-88341 |
US $37.97 |
||
|
11219
|
11219
11219-70020 Cover, Cylinder Head, No.3[08.1988 - 08.1990] 1GGZE..GX81 |
11219-70020 |
US $48.34 |
||
|
12108
|
12108
12180-13030
Cap Sub-Assy, Oil Filler
[08.1988 - 10.1992] 7MGE..MX83; 4SF#..SX80; 1GFE,1GGTE,1GGZE..GX81 |
12180-13030 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[08.1988 - 10.1992] 7MGE..MX83; 4SF#..SX80; 1GFE,1GGTE,1GGZE..GX81 |
12180-55010 |
from US $11.29 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[08.1988 - 10.1992] 7MGE..MX83; 4SF#..SX80; 1GFE,1GGTE,1GGZE..GX81 |
90430-37140 |
from US $1.17 |
||
|
1625888340
|
1625888340
16258-88340
Gasket(for Heater Return)
|
16258-88340 |
— | ||
|
9011610047
|
9011610047
90116-10047 Bolt, Stud(For Alternator Bracket) |
90116-10047 |
US $3.35 |
||
|
9011906304
|
9011906304
90119-06304 New Genuine Part |
90119-06304 |
US $1.60 |
||
|
9011908451
|
9011908451
90119-08451 New Genuine Part |
90119-08451 |
US $1.89 |
||
|
9212240818
|
9212240818
92122-40818 Bolt, Stud(For Oil Pan) |
92122-40818 |
US $2.18 |
||
|
9327026025
|
9327026025
93270-26025 SCREW |
93270-26025 |
US $2.15 |
||
