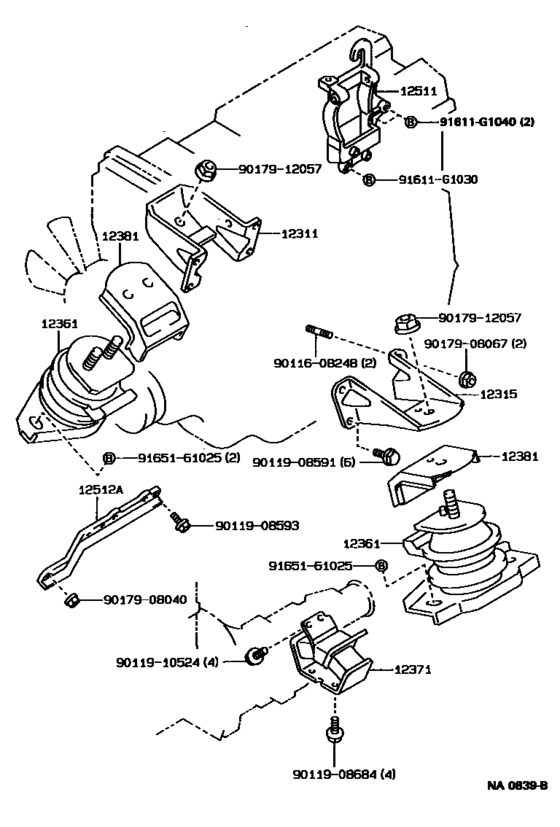

Mounting ([08.1988 - 08.1990] (8808-9008)1GGZE) Diagram Toyota CHASER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- GX81
- grade
- AVTG
- body
- HT
- ENGINE
- 1GGZE
- TRANSMISSION
- ATM
- From
- 08.1988
- To
- 08.1990
- Gear Shift Type
- 4FC
- Fuel Induction
- SPC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-70090 Bracket, Engine Mounting, Front No.1 Rh[08.1988 - 10.1992] 1GFE,1GGE,1GGZE..GX81 |
12311-70090 |
US $51.25 |
||
|
12315
|
12315
12315-70060 Bracket, Engine Mounting, Front No.1 Lh[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
12315-70060 |
US $61.30 |
||
| replacement | |||||
|
12315
|
12315
12315-70061 Bracket, Engine Mounting, Front No.1 Lh[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
12315-70061 |
US $61.44 |
||
|
12361
|
12361
12361-42040
Insulator, Engine Mounting, Front
[08.1988 - 10.1988] 1GGZE..GX81 |
12361-42040 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-70151
Insulator, Engine Mounting, Front
[08.1988 - 10.1988] 1GGZE..GX81 |
12361-70151 |
— | ||
|
12361
|
12361
12361-70151
Insulator, Engine Mounting, Front
[06.1989 - 02.1990] 1GGZE..GX81; 7MGE..MX83 |
12361-70151 |
— | ||
|
12361
|
12361
12361-70160 Insulator, Engine Mounting, Front[10.1988 - 06.1989] 1GGZE..GX81 |
12361-70160 |
US $173.26 |
||
| replacement | |||||
|
12361
|
12361
12361-70151
Insulator, Engine Mounting, Front
[10.1988 - 06.1989] 1GGZE..GX81 |
12361-70151 |
— | ||
|
12371
|
12371
12371-42020 Insulator, Engine Mounting, Rear No.1[08.1988 - 10.1992] 1GGTE,1GGZE..GX81; 7MGE..MX83; 1JZ#..JZX81 |
12371-42020 |
US $100.04 |
||
|
12381
|
12381
12381-42020 Stabilizer, Engine Mounting[08.1988 - 02.1990] 1GGZE..GX81; 7MGE..MX83 |
12381-42020 |
US $22.42 |
||
|
12511
|
12511
12501-70011 Bracket, Alternator, No.1[08.1988 - 06.1989] 1GGZE..GX81 |
12501-70011 |
US $116.48 |
||
|
12512A
|
12512A
12512-70010 Bracket, Alternator, No.2[08.1988 - 06.1989] 1GGZE..GX81 |
12512-70010 |
US $21.11 |
||
|
91611G1030
|
91611G1030
91611-G1030 New Genuine Part |
91611-G1030 |
US $2.62 |
||
|
91611G1040
|
91611G1040
91611-G1040
New Genuine Part
|
91611-G1040 |
— | ||
| replacement | |||||
|
91611G1040
|
91611G1040
91612-G1040
New Genuine Part
|
91612-G1040 |
— | ||
|
9011608248
|
9011608248
90116-08248 Bolt(For Intake Manifold To Exhaust Manifold) |
90116-08248 |
US $0.79 |
||
|
9011908591
|
9011908591
90119-08591 New Genuine Part |
90119-08591 |
US $1.89 |
||
| replacement | |||||
|
9011908591
|
9011908591
90119-08209 New Genuine Part |
90119-08209 |
US $3.20 |
||
|
9011908593
|
9011908593
90119-08593 New Genuine Part |
90119-08593 |
US $2.33 |
||
|
9011908684
|
9011908684
90119-08684 New Genuine Part |
90119-08684 |
US $2.15 |
||
|
9011910524
|
9011910524
90119-10524 New Genuine Part |
90119-10524 |
US $2.87 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9017908067
|
9017908067
90179-08067 New Genuine Part |
90179-08067 |
US $1.75 |
||
|
9017912057
|
9017912057
90179-12057
New Genuine Part
|
90179-12057 |
— | ||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.52 |
||
