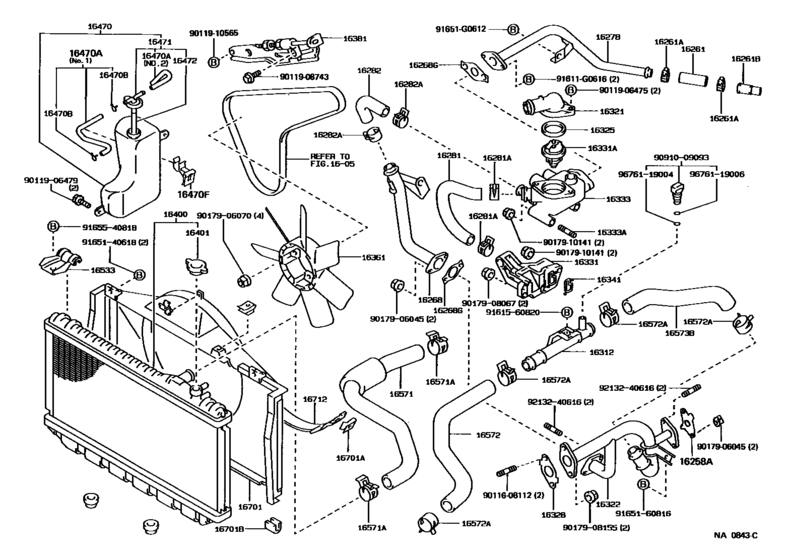

Radiator & Water Outlet ([08.1988 - ] (8808- )1GGZE) Diagram Toyota CHASER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- GX81
- grade
- AVTG
- body
- HT
- ENGINE
- 1GGZE
- TRANSMISSION
- ATM
- From
- 08.1988
- To
- 08.1990
- Gear Shift Type
- 4FC
- Fuel Induction
- SPC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16258A
|
16258A
16258-15011 Gasket(For Heater Return)[08.1988 - 11.1988] 1GGZE..GX81 |
16258-15011 |
US $8.96 |
||
|
16258A
|
16258A
16258-70010 Gasket(For Heater Return)[11.1988 - 08.1990] 1GGZE..GX81 |
16258-70010 |
US $6.70 |
||
| replacement | |||||
|
16258A
|
16258A
16258-70020 Gasket(For Heater Return)[11.1988 - 08.1990] 1GGZE..GX81 |
16258-70020 |
from US $2.77 |
||
|
16261
|
16261
16261-88300
Hose, Water By-Pass
[08.1988 - 10.1992] 1GG#..GX81 |
16261-88300 |
— | ||
|
16261A
|
16261A
90467-26003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[08.1988 - 10.1992] 1GG#..GX81 |
90467-26003 |
— | ||
| replacement | |||||
|
16261A
|
16261A
90467-26007 Clip(For Ventilation Hose No.2)[08.1988 - 10.1992] 1GG#..GX81 |
90467-26007 |
US $4.84 |
||
|
16261B
|
16261B
90406-22001 Union(For Water By-Pass Hose)[08.1988 - 10.1992] 1GG#..GX81 |
90406-22001 |
US $8.30 |
||
|
16268
|
16268
16268-70040 Pipe, Water By-Pass, No.1[08.1988 - 08.1990] 1GGZE..GX81 |
16268-70040 |
US $61.15 |
||
| replacement | |||||
|
16268
|
16268
16268-70041 Pipe, Water By-Pass, No.1[08.1988 - 08.1990] 1GGZE..GX81 |
16268-70041 |
US $61.15 |
||
|
16268G
|
16268G
16347-88300
Gasket(For Water By-Pass Pipe)
[08.1988 - 08.1990] 1GGZE..GX81 |
16347-88300 |
— | ||
| replacement | |||||
|
16268G
|
16268G
16347-70011 Gasket(For Water By-Pass Pipe)[08.1988 - 08.1990] 1GGZE..GX81 |
16347-70011 |
US $6.27 |
||
|
16278
|
16278
16278-70050 Pipe, Water By-Pass, No.2[08.1988 - 08.1990] 1GGZE..GX81 |
16278-70050 |
US $81.54 |
||
|
16281
|
16281
16281-70030 Hose, Water By-Pass, No.4[08.1988 - 08.1990] 1GGZE..GX81 |
16281-70030 |
US $10.66 |
||
|
16281A
|
16281A
90467-26003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[08.1988 - 08.1990] 1GGZE..GX81 |
90467-26003 |
— | ||
| replacement | |||||
|
16281A
|
16281A
90467-26007 Clip(For Ventilation Hose No.2)[08.1988 - 08.1990] 1GGZE..GX81 |
90467-26007 |
US $4.84 |
||
|
16282
|
16282
16282-70020
Hose, Water By-Pass, No.5
[08.1988 - 08.1990] 1GGZE..GX81 |
16282-70020 |
— | ||
|
16282A
|
16282A
90467-26003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[08.1988 - 08.1990] 1GGZE..GX81 |
90467-26003 |
— | ||
| replacement | |||||
|
16282A
|
16282A
90467-26007 Clip(For Ventilation Hose No.2)[08.1988 - 08.1990] 1GGZE..GX81 |
90467-26007 |
US $4.84 |
||
|
16312
|
16312
16312-70010 Pipe, Water Inlet, No.2[10.1988 - 08.1990] 1GGZE..GX81 |
16312-70010 |
US $60.72 |
||
|
16312
|
16312
16312-70020 Pipe, Water Inlet, No.2[08.1988 - 10.1988] 1GGZE..GX81 |
16312-70020 |
US $84.45 |
||
| replacement | |||||
|
16312
|
16312
16312-70010 Pipe, Water Inlet, No.2[08.1988 - 10.1988] 1GGZE..GX81 |
16312-70010 |
US $60.72 |
||
|
16321
|
16321
16321-70011 Inlet, Water[08.1988 - 08.1990] 1GGZE..GX81 |
16321-70011 |
US $42.81 |
||
|
16322
|
16322
16302-70020 Pipe, Water Inlet[08.1988 - 08.1990] 1GGZE..GX81 |
16302-70020 |
US $158.70 |
||
|
16325
|
16325
16325-63010
Gasket, Water Inlet Housing, No.1
[08.1988 - 10.1992] 4SF#..SX80; 3YP..YX80; 1GG#..GX81 |
16325-63010 |
— | ||
| replacement | |||||
|
16325
|
16325
16325-63011 Gasket, Water Inlet Housing, No.1[08.1988 - 10.1992] 4SF#..SX80; 3YP..YX80; 1GG#..GX81 |
16325-63011 |
from US $3.92 |
||
|
16328
|
16328
16328-70010
Gasket, Water Inlet Pipe
[08.1988 - 08.1990] 1GGZE..GX81 |
16328-70010 |
— | ||
|
16331
|
16331
16304-70011 Outlet, Water[08.1988 - 08.1990] 1GGZE..GX81 |
16304-70011 |
US $117.94 |
||
|
16331A
|
16331A
90916-03063 Thermostat[08.1988 - 10.1992] 1GG#..GX81 ＊ＷＡＸ ８８−１００ |
90916-03063 |
from US $29.90 |
||
|
16333
|
16333
16303-70010
Housing, Water Outlet
[08.1988 - 07.1989] 1GGZE..GX81 |
16303-70010 |
— | ||
| replacement | |||||
|
16333
|
16333
16303-70020
Housing, Water Outlet
[08.1988 - 07.1989] 1GGZE..GX81 |
16303-70020 |
— | ||
|
16333
|
16333
16303-70020
Housing, Water Outlet
[07.1989 - 08.1990] 1GGZE..GX81 |
16303-70020 |
— | ||
|
16333A
|
16333A
90116-10126 Bolt, Stud(For Water Outlet Housing)[08.1988 - 08.1990] 1GGZE..GX81 |
90116-10126 |
US $4.22 |
||
|
16341
|
16341
16341-70020
Gasket, Water Outlet
[08.1988 - 08.1990] 1GGZE..GX81 |
16341-70020 |
— | ||
|
16361
|
16361
16361-70050 Fan[08.1988 - 08.1990] 1GGZE..GX81 |
16361-70050 |
US $109.20 |
||
|
16381
|
16381
16381-70042 Bar, Fan Belt Adjusting[08.1988 - 08.1990] 1GGZE..GX81 |
16381-70042 |
US $37.13 |
||
|
16400
|
16400
16400-70341 Radiator Assy[08.1988 - 08.1990] 1GGTE,1GGZE..GX81..4FC |
16400-70341 |
US $575.12 |
||
|
16401
|
16401
16401-63010 Cap Sub-Assy,[08.1988 - 10.1992] 2L#..LX80; 4SF#..SX80; 3YP..YX80; 1GFE,1GG#..GX81 |
16401-63010 |
from US $19.66 |
||
|
16470
|
16470
16470-70110 Tank Assy, Radiator Reserve[08.1988 - 08.1990] 2L#..LX80; 7MGE..MX83; 4SFI..SX80; 1GFE,1GG#..GX81 |
16470-70110 |
US $60.72 |
||
| replacement | |||||
|
16470
|
16470
16470-54320 Tank Assy, Radiator Reserve[08.1988 - 08.1990] 2L#..LX80; 7MGE..MX83; 4SFI..SX80; 1GFE,1GG#..GX81 |
16470-54320 |
US $61.66 |
||
|
16470A
|
16470A
16567-70020 Hose Or Pipe(For Radiator Reserve Tank)[08.1988 - 08.1990] 1GFE,1GG#..GX81 ＮＯ．１ |
16567-70020 |
US $13.40 |
||
|
16470A
|
16470A
85338-95A01
Hose Or Pipe(For Radiator Reserve Tank)
[08.1988 - 08.1990] 1GFE,1GG#..GX81 ＮＯ．２ |
85338-95A01 |
— | ||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[08.1988 - 10.1992] 7MGE..MX83; 4SF#..SX80; 3YP..YX80; 1GFE,1GG#..GX81 |
90467-11085 |
from US $0.72 |
||
|
16470F
|
16470F
90929-01233 Clamp, Radiator Reserve Tank Hose[08.1988 - 10.1992] 7MGE..MX83; 1GFE,1GG#..GX81 |
90929-01233 |
US $2.77 |
||
|
16471
|
16471
16405-70080
Cap Sub-Assy, Reserve Tank
[08.1988 - 08.1990] 2L#..LX80; 7MGE..MX83; 4SFI..SX80; 1GFE,1GG#..GX81 |
16405-70080 |
— | ||
|
16472
|
16472
90445-12078 Hose(For Radiator Breather)[08.1988 - 10.1992] 1GFE,1GG#..GX81 長さ＝６００ |
90445-12078 |
from US $6.75 |
||
|
16533
|
16533
16505-70020
Support, Radiator, Upper
[08.1988 - 10.1992] 2L#..LX80; 7MGE..MX83; 4SF#..SX80; 3YP..YX80; 1GFE,1GG#..GX81 |
16505-70020 |
— | ||
|
16571
|
16571
16571-70220 Hose, Radiator, Inlet[08.1988 - 08.1990] 1GGZE..GX81 |
16571-70220 |
US $38.29 |
||
|
16571A
|
16571A
90467-37002
Clip(For Water Inlet Hose)
[08.1988 - 07.1991] 2L#..LX80; 7MGE..MX83; 1GFE,1GG#..GX81 |
90467-37002 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-37005 Clip(For Water Inlet Hose)[08.1988 - 07.1991] 2L#..LX80; 7MGE..MX83; 1GFE,1GG#..GX81 |
90467-37005 |
from US $3.98 |
||
|
16572
|
16572
16572-70180 Hose, Radiator, Outlet[08.1988 - 08.1990] 1GGZE..GX81 |
16572-70180 |
US $26.50 |
||
|
16572A
|
16572A
90467-37002
Clip(For Water Inlet Hose)
[08.1988 - 08.1990] 1GGZE..GX81 |
90467-37002 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90467-37005 Clip(For Water Inlet Hose)[08.1988 - 08.1990] 1GGZE..GX81 |
90467-37005 |
from US $3.98 |
||
|
16573B
|
16573B
16573-70020
Hose, Radiator, No.3
[08.1988 - 08.1990] 1GGZE..GX81 |
16573-70020 |
— | ||
|
16701
|
16701
16711-70110 Shroud Sub-Assy, Fan[08.1988 - 10.1992] 1GFE,1GGE,1GGZE..GX81..4FC |
16711-70110 |
US $96.10 |
||
|
16701A
|
16701A
90468-06070 Clip(For Fan Shroud)[08.1988 - 10.1992] 1GFE,1GGE,1GGZE..GX81..4FC |
90468-06070 |
US $4.12 |
||
|
16701B
|
16701B
90541-11002 Cushion, Fan Shroud[08.1988 - 10.1992] 1JZGE..JZX81; 2L#..LX80 ＮＯ．１; 7MGE..MX83; 3YP..YX80; 1GFE,1GG#..GX81 |
90541-11002 |
US $4.12 |
||
|
16712
|
16712
16712-70080 Shroud, Fan, No.2[08.1988 - 10.1992] 1GFE,1GGE,1GGZE..GX81..4FC |
16712-70080 |
US $27.69 |
||
|
91611G0616
|
91611G0616
91611-G0616 New Genuine Part |
91611-G0616 |
US $0.87 |
||
|
91651G0612
|
91651G0612
91651-G0612 New Genuine Part |
91651-G0612 |
US $1.24 |
||
|
9011608112
|
9011608112
90116-08112 Bolt, Stud(For Water Pump Coupling) |
90116-08112 |
from US $0.84 |
||
|
9011906475
|
9011906475
90119-06475 Bolt, W/washer (For Transmission Oil Pump Cover) |
90119-06475 |
US $1.60 |
||
| replacement | |||||
|
9011906475
|
9011906475
91611-60622 Bolt, W/washer (For Transmission Oil Pump Cover) |
91611-60622 |
US $2.62 |
||
|
9011906479
|
9011906479
90119-06479
New Genuine Part
|
90119-06479 |
— | ||
| replacement | |||||
|
9011906479
|
9011906479
90119-06341 BOLT |
90119-06341 |
US $2.15 |
||
|
9011908743
|
9011908743
90119-08743 New Genuine Part |
90119-08743 |
US $1.61 |
||
|
9011910565
|
9011910565
90119-10565 New Genuine Part |
90119-10565 |
US $2.62 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $2.15 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908067
|
9017908067
90179-08067 New Genuine Part |
90179-08067 |
US $1.75 |
||
|
9017908155
|
9017908155
90179-08155 New Genuine Part |
90179-08155 |
US $1.16 |
||
|
9017910141
|
9017910141
90179-10141
Nut(For Counter Gear Shaft)
|
90179-10141 |
— | ||
| replacement | |||||
|
9017910141
|
9017910141
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9091009093
|
9091009093
90910-09093
Plug, Drain Cock(For Water Inlet)
|
90910-09093 |
— | ||
|
9161560820
|
9161560820
91615-60820
Bolt (For Transmission Control Cable Bracket)
|
91615-60820 |
— | ||
| replacement | |||||
|
9161560820
|
9161560820
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9165140618
|
9165140618
91651-40618 New Genuine Part |
91651-40618 |
US $2.80 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
|
9165540818
|
9165540818
91655-40818
New Genuine Part
|
91655-40818 |
— | ||
| replacement | |||||
|
9165540818
|
9165540818
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
|
9213240616
|
9213240616
92132-40616 Bolt, Stud(For Timing Gear Cover) |
92132-40616 |
US $2.48 |
||
|
9676119004
|
9676119004
96761-19004 Ring, O(For Water Inlet Union Drain Cock Plug) |
96761-19004 |
US $3.05 |
||
|
9676119006
|
9676119006
96761-19006
Ring, O(For Water Inlet Union Drain Cock Plug)
|
96761-19006 |
— | ||
