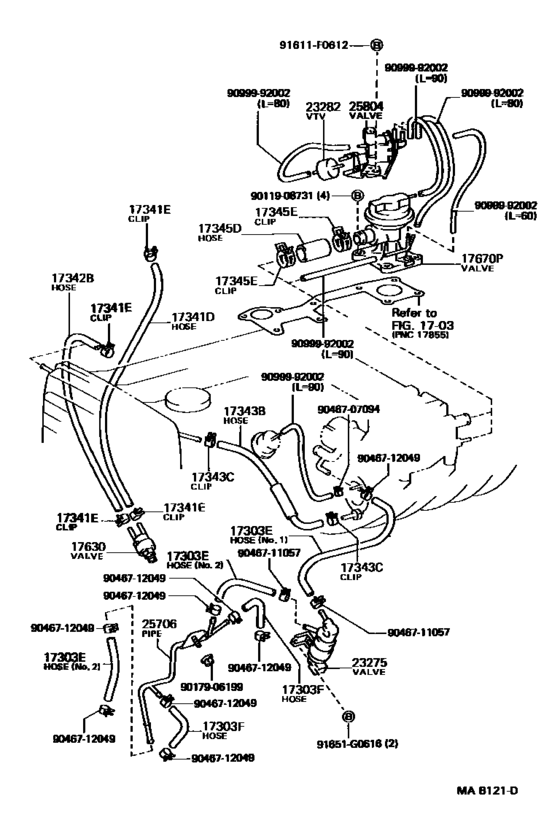

Vacuum Piping ([08.1988 - 08.1990] (8808-9008)1GGZE) Diagram Toyota CHASER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- GX81
- grade
- AVTG
- body
- HT
- ENGINE
- 1GGZE
- TRANSMISSION
- ATM
- From
- 08.1988
- To
- 08.1990
- Gear Shift Type
- 4FC
- Fuel Induction
- SPC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303E
|
17303E
17341-70200 Hose, No.1(For Air Pipe)[08.1988 - 08.1990] 1GGZE..GX81 ＮＯ．１ |
17341-70200 |
US $10.05 |
||
|
17303E
|
17303E
90445-12161 Hose, No.1(For Air Pipe)[08.1988 - 08.1990] 1GGZE..GX81 ＮＯ．２ |
90445-12161 |
US $4.08 |
||
|
17303F
|
17303F
17346-70010 Hose, No.2(For Air Pipe)[08.1988 - 08.1990] 1GGZE..GX81 |
17346-70010 |
US $13.40 |
||
|
17341D
|
17341D
90447-10002 Hose, No.1(For Idle-Up)[08.1988 - 08.1990] 1GGZE..GX81 |
90447-10002 |
US $13.83 |
||
|
17341E
|
17341E
90467-10106
Clip, No.1(For Idle-Up Hose)
[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
90467-10106 |
— | ||
| replacement | |||||
|
17341E
|
17341E
96132-51000 Clip Or Clamp(For Ventilation Hose)[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
96132-51000 |
from US $1.48 |
||
|
17342B
|
17342B
17341-70110 Hose, No.2(For Idle-Up)[08.1988 - 08.1990] 1GGZE..GX81 |
17341-70110 |
US $14.56 |
||
|
17343B
|
17343B
17343-70040 Hose, No.3(For Idle-Up)[08.1988 - 10.1992] 1GGE,1GGZE..GX81 *53 |
17343-70040 |
US $11.65 |
||
|
17343C
|
17343C
90467-10106
Clip, No.1(For Idle-Up Hose)
[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
90467-10106 |
— | ||
| replacement | |||||
|
17343C
|
17343C
96132-51000 Clip Or Clamp(For Ventilation Hose)[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
96132-51000 |
from US $1.48 |
||
|
17345D
|
17345D
17345-70010
Hose, Air, No.5
[08.1988 - 08.1990] 1GGZE..GX81 |
17345-70010 |
— | ||
|
17345E
|
17345E
90467-34003
Clip(For Oil Return Hose)
[08.1988 - 08.1990] 1GGZE..GX81 |
90467-34003 |
— | ||
| replacement | |||||
|
17345E
|
17345E
90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1988 - 08.1990] 1GGZE..GX81 |
90467-34004 |
from US $3.41 |
||
|
17630
|
17630
17630-70020
Valve Assy, Air Control
[08.1988 - 10.1992] 7MGE..MX83; 1GG#..GX81; 1JZ#..JZX81 |
17630-70020 |
— | ||
| replacement | |||||
|
17630
|
17630
17630-16040 Valve Assy, Air Control[08.1988 - 10.1992] 7MGE..MX83; 1GG#..GX81; 1JZ#..JZX81 |
17630-16040 |
from US $78.92 |
||
|
17670P
|
17670P
17670-70021 Valve Assy, Air By-Pass[08.1988 - 08.1990] 1GGZE..GX81 |
17670-70021 |
US $190.74 |
||
|
23275
|
23275
25740-70020 Valve, Vacuum Control, No.1[08.1988 - 08.1990] 1GGZE..GX81 |
25740-70020 |
US $251.89 |
||
|
23282
|
23282
90925-01099
Valve, Vacuum Transmitting, No.1
[08.1988 - 08.1990] 1GGZE..GX81 |
90925-01099 |
— | ||
|
25706
|
25706
17303-70030 Pipe Sub-Assy, Vacuum Transmitting, No.1[08.1988 - 08.1990] 1GGZE..GX81 |
17303-70030 |
US $48.63 |
||
|
25804
|
25804
25804-70030 Valve Set, Vacuum Control[08.1988 - 08.1990] 1GGZE..GX81 |
25804-70030 |
US $200.93 |
||
|
91611F0612
|
91611F0612
91611-F0612 New Genuine Part |
91611-F0612 |
US $1.60 |
||
|
91651G0616
|
91651G0616
91651-G0616 BOLT WWASHER |
91651-G0616 |
US $1.43 |
||
|
9011908731
|
9011908731
90119-08731 New Genuine Part |
90119-08731 |
US $1.89 |
||
|
9017906199
|
9017906199
90179-06199 NUT |
90179-06199 |
US $1.25 |
||
|
9046707094
|
9046707094
90467-07094 Clip, Hose Fuel(For Injection Pump) |
90467-07094 |
US $2.15 |
||
|
9046711057
|
9046711057
90467-11057
Clip
|
90467-11057 |
— | ||
| replacement | |||||
|
9046711057
|
9046711057
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.83 |
||
|
9046712049
|
9046712049
90467-12049 Clip(For Actuator Hose) |
90467-12049 |
US $2.62 |
||
| replacement | |||||
|
9046712049
|
9046712049
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
