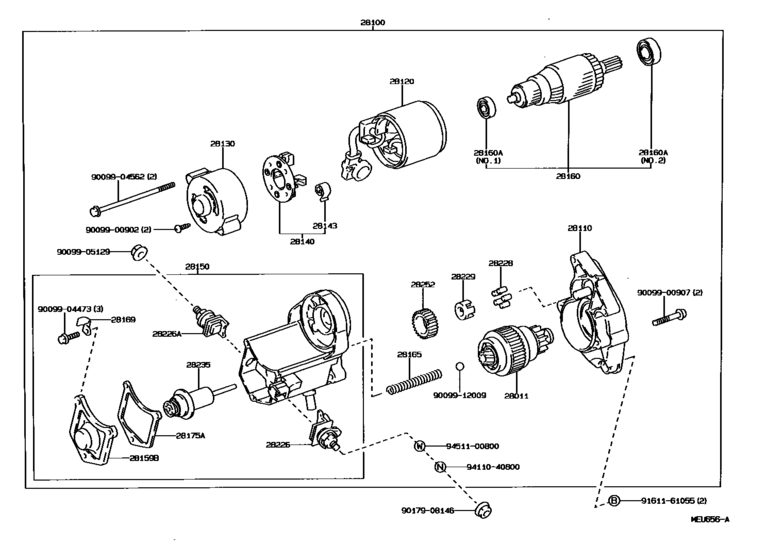

Starter ([10.1992 - ] 12V 1.0KW (9210- )1GFE) Diagram Toyota CHASER
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- GX90
- grade
- AVT
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- From
- 10.1992
- To
- 09.1996
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-26042
Clutch Sub-Assy, Starter
[10.1992 - 09.1996] 4SFE..SX90; 1GFE..GX90 ｶﾝﾚｲﾁｼﾖｳ |
28011-26042 |
— | ||
|
28011
|
28011
28011-70020 Clutch Sub-Assy, Starter[10.1992 - 09.1996] 1GFE,1JZ#..GX90,JZX90,93 |
28011-70020 |
US $43.51 |
||
|
28100
|
28100
28100-70030 Starter Assy[10.1992 - 09.1996] 1GFE..GX90 １２Ｖ ０．８ＫＷ |
28100-70030 |
US $899.81 |
||
| replacement | |||||
|
28100
|
28100
28100-70050 Starter Assy[10.1992 - 09.1996] 1GFE..GX90 １２Ｖ ０．８ＫＷ |
28100-70050 |
US $1,090.54 |
||
|
28100
|
28100
28100-70040 Starter Assy[10.1992 - 09.1996] 1GFE..GX90 １２Ｖ １．０ＫＷ,ｶﾝﾚｲﾁｼﾖｳ |
28100-70040 |
US $1,282.74 |
||
|
28110
|
28110
28110-15040 Housing Assy, Starter Drive[10.1992 - 09.1996] 1GFE..GX90 ｶﾝﾚｲﾁｼﾖｳ |
28110-15040 |
US $52.56 |
||
|
28110
|
28110
28110-70020 Housing Assy, Starter Drive[10.1992 - 09.1996] 1GFE..GX90 |
28110-70020 |
US $80.08 |
||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[10.1992 - 09.1996] 4SFE..SX90; 1GFE..GX90 ｶﾝﾚｲﾁｼﾖｳ |
28120-26071 |
— | ||
|
28120
|
28120
28120-70020 Yoke Assy, Starter[10.1992 - 09.1996] 1GFE,1JZ#..GX90,JZX90,93 |
28120-70020 |
from US $98.61 |
||
|
28130
|
28130
28130-15040 Frame Assy, Starter Commutator End[10.1992 - 09.1996] 1GFE..GX90 ｶﾝﾚｲﾁｼﾖｳ |
28130-15040 |
US $21.11 |
||
|
28130
|
28130
28130-70020 Frame Assy, Starter Commutator End[10.1992 - 09.1996] 1GFE..GX90 |
28130-70020 |
US $31.45 |
||
|
28140
|
28140
28140-26070 Holder Assy, Starter Brush[10.1992 - 09.1996] 4SFE..SX90; 1GFE..GX90 ｶﾝﾚｲﾁｼﾖｳ |
28140-26070 |
US $16.77 |
||
|
28140
|
28140
28140-70020 Holder Assy, Starter Brush[10.1992 - 09.1996] 1GFE,1JZ#..GX90,JZX90,93 |
28140-70020 |
from US $22.19 |
||
|
28143
|
28143
28143-70020
Spring, Starter Brush
[10.1992 - 09.1996] 1GFE,1JZ#..GX90,JZX90,93 |
28143-70020 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[10.1992 - 09.1994] 1GFE..GX90 ｶﾝﾚｲﾁｼﾖｳ |
90099-17112 |
— | ||
|
28150
|
28150
28150-70030
Switch Assy, Magnet Starter
[10.1992 - 09.1996] 1GFE,1JZ#..GX90,JZX90,93 |
28150-70030 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-22100 Switch Assy, Magnet Starter[10.1992 - 09.1996] 1GFE,1JZ#..GX90,JZX90,93 |
28150-22100 |
from US $84.73 |
||
|
28150
|
28150
28150-70040 Switch Assy, Magnet Starter[10.1992 - 09.1996] 1GFE..GX90 ｶﾝﾚｲﾁｼﾖｳ |
28150-70040 |
US $205.30 |
||
|
28159B
|
28159B
28159-10040
Cover, Magnet Switch
[10.1992 - 09.1996] 4SFE..SX90; 1GFE..GX90 ｶﾝﾚｲﾁｼﾖｳ |
28159-10040 |
— | ||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[10.1992 - 09.1996] 4SFE..SX90; 1GFE..GX90 ｶﾝﾚｲﾁｼﾖｳ |
28160-26071 |
— | ||
|
28160
|
28160
28160-70021 Armature Assy, Starter[10.1992 - 09.1996] 1GFE,1JZ#..GX90,JZX90,93 |
28160-70021 |
US $131.04 |
||
|
28160A
|
28160A
28253-45020
Bearing, Starter Armature
[10.1992 - 09.1994] 4SFE..SX90 ＮＯ．１; 1GFE..GX90 ｶﾝﾚｲﾁｼﾖｳ,ＮＯ．１ |
28253-45020 |
— | ||
|
28160A
|
28160A
90099-10113
Bearing, Starter Armature
[10.1992 - 09.1994] 4SFE..SX90 ＮＯ．２; 1GFE..GX90 ｶﾝﾚｲﾁｼﾖｳ,ＮＯ．２ |
90099-10113 |
— | ||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[10.1992 - 09.1996] 4SFE..SX90;2LTE..LX90..MTM; 1GFE..GX90 ｶﾝﾚｲﾁｼﾖｳ |
28165-26040 |
— | ||
|
28169
|
28169
28169-10040
Clamp, Starter Motor Lead Wire
[10.1992 - 09.1996] 4SFE..SX90; 1GFE..GX90 ｶﾝﾚｲﾁ ｼﾖｳ |
28169-10040 |
— | ||
|
28175A
|
28175A
28175-10040
Gasket, Magnet Switch Cover
[10.1992 - 09.1996] 4SFE..SX90;2LTE..LX90..MTM; 1GFE..GX90 ｶﾝﾚｲﾁｼﾖｳ |
28175-10040 |
— | ||
|
28226
|
28226
28226-70040 Starter Kit, Battery Terminal[10.1992 - 09.1996] 1GFE..GX90 ｶﾝﾚｲﾁｼﾖｳ |
28226-70040 |
from US $9.43 |
||
|
28226A
|
28226A
28226-72010 Starter Kit, Motor Terminal[10.1992 - 09.1996] 4SFE..SX90;2LTE..LX90..MTM; 1GFE..GX90 ｶﾝﾚｲﾁｼﾖｳ |
28226-72010 |
from US $10.22 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[10.1992 - 09.1996] 2LTE..LX90..MTM;2JZGE,4SFE..JZX91,SX90; 1GFE,1JZ#..GX90,JZX90,93 ｶﾝﾚｲﾁｼﾖｳ |
28228-26040 |
— | ||
|
28229
|
28229
28229-26040
Retainer, Starter Idle Gear
[10.1992 - 09.1996] 4SFE..SX90;2LTE..LX90..MTM; 1GFE..GX90 ｶﾝﾚｲﾁｼﾖｳ |
28229-26040 |
— | ||
|
28235
|
28235
28235-35080 Plunger, Magnet Switch[10.1992 - 09.1996] 4SFE..SX90;2LTE..LX90..MTM; 1GFE..GX90 ｶﾝﾚｲﾁｼﾖｳ |
28235-35080 |
from US $23.41 |
||
|
28252
|
28252
28254-45020
Pinion, Starter Drive
[10.1992 - 09.1996] 4SFE..SX90; 1GFE..GX90 ｶﾝﾚｲﾁｼﾖｳ |
28254-45020 |
— | ||
|
9009900902
|
9009900902
90099-00902
Screw, W/washer(For Bearing Cover Setting)
|
90099-00902 |
— | ||
|
9009900907
|
9009900907
90099-00907
New Genuine Part
|
90099-00907 |
— | ||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9009904562
|
9009904562
90099-04562
BOLT
|
90099-04562 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9161161055
|
9161161055
91611-61055 Bolt(For Clutch Release Cylinder Setting) |
91611-61055 |
US $3.05 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
