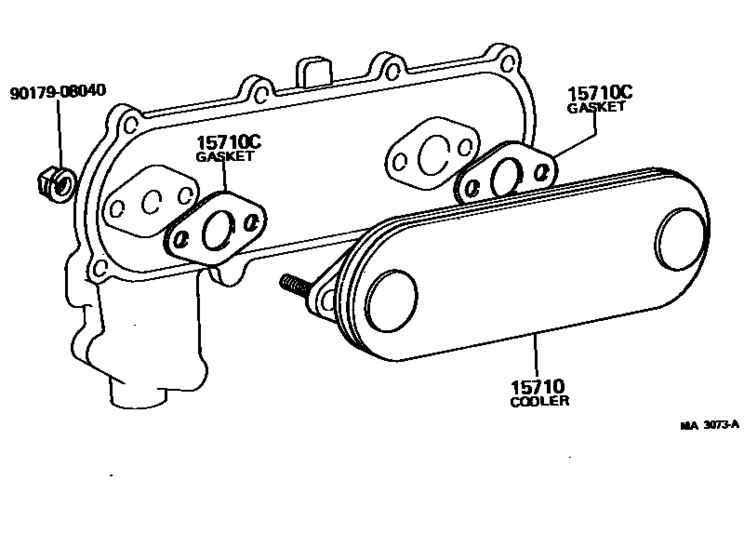

Engine Oil Cooler ([09.1980 - ] (8009- )L,2LTE) Diagram Toyota CHASER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- LX60
- grade
- DLX
- body
- SED
- ENGINE
- L
- TRANSMISSION
- MTM
- From
- 09.1980
- To
- 08.1982
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15710
|
15710
15710-54020 Cooler Assy, Oil[09.1980 - 11.1980] L..LX60 |
15710-54020 |
US $442.62 |
||
| replacement | |||||
|
15710
|
15710
15710-54021 Cooler Assy, Oil[09.1980 - 11.1980] L..LX60 |
15710-54021 |
US $589.68 |
||
|
15710
|
15710
15710-54021 Cooler Assy, Oil[11.1980 - 07.1984] L..LX60 |
15710-54021 |
US $589.68 |
||
|
15710C
|
15710C
90923-05009 Gasket(For Oil Cooler)[09.1980 - 05.1982] L..LX60 |
90923-05009 |
US $4.95 |
||
| replacement | |||||
|
15710C
|
15710C
15785-54010 Gasket(For Oil Cooler)[09.1980 - 05.1982] L..LX60 |
15785-54010 |
from US $2.44 |
||
|
15710C
|
15710C
90923-05015
Gasket(For Oil Cooler)
[05.1982 - 07.1984] L,2LTE..LX6# |
90923-05015 |
— | ||
| replacement | |||||
|
15710C
|
15710C
15785-54010 Gasket(For Oil Cooler)[05.1982 - 07.1984] L,2LTE..LX6# |
15785-54010 |
from US $2.44 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
