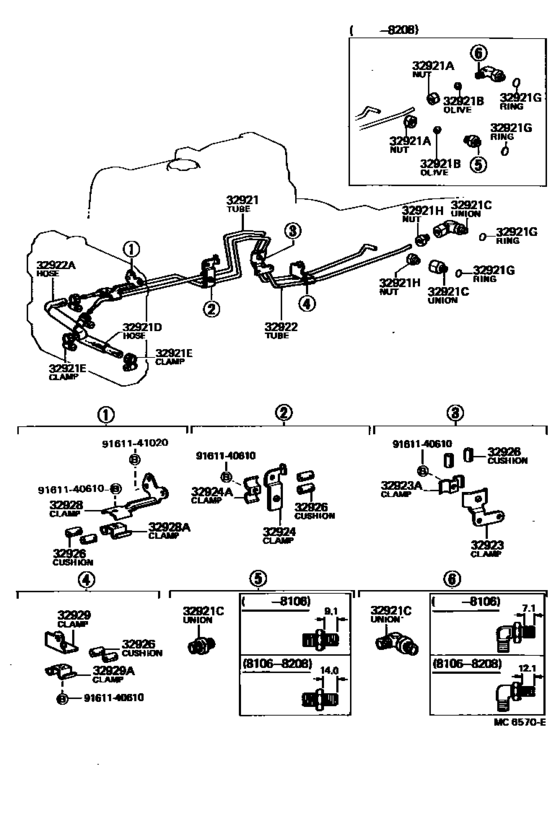

Oil Cooler & Tube (Atm) ([09.1980 - ] (8009- )LX6#..4FC) Diagram Toyota CHASER
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- LX60
- grade
- XL
- body
- SED
- ENGINE
- L
- TRANSMISSION
- ATM
- From
- 09.1980
- To
- 08.1982
- Gear Shift Type
- 4FC
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32921
|
32921
32921-22120
Tube, Oil Cooler Inlet, No.1
[09.1980 - 08.1982] LX60..4FC |
32921-22120 |
— | ||
|
32921
|
32921
32921-22290 Tube, Oil Cooler Inlet, No.1OIL COOLER INLET, NO.1 [08.1982 - 07.1984] LX6#..4FC |
32921-22290 |
US $31.74 |
||
|
32921A
|
32921A
90402-13041 Nut, Union(For Fuel Pipe)[09.1980 - 08.1982] GX6#,LX60,MX61,RX60,TX60..ATM |
90402-13041 |
US $3.76 |
||
|
32921B
|
32921B
96395-71400 Olive(For Fuel Pipe)[09.1980 - 08.1982] GX6#,LX60,MX61,RX60,TX60..ATM |
96395-71400 |
US $3.76 |
||
|
32921C
|
32921C
90404-13003 Union(For Oil Cooler Tube)[06.1981 - 08.1982] GX6#,LX60,MX61,RX60..4FC FR |
90404-13003 |
US $7.28 |
||
|
32921C
|
32921C
90404-13265 Union(For Oil Cooler Tube)[09.1980 - 06.1981] GX6#,LX60,RX60..4FC FR |
90404-13265 |
US $21.84 |
||
|
32921C
|
32921C
90404-14007 Union(For Oil Cooler Tube)[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..4FC FR |
90404-14007 |
US $5.23 |
||
|
32921C
|
32921C
90407-13002 Union(For Oil Cooler Tube)[09.1980 - 06.1981] GX6#,LX60,RX60..4FC RR |
90407-13002 |
US $25.48 |
||
|
32921C
|
32921C
90407-13005 Union(For Oil Cooler Tube)[06.1981 - 08.1982] GX6#,LX60,MX61,RX60..4FC RR |
90407-13005 |
US $25.63 |
||
|
32921C
|
32921C
90407-14003 Union(For Oil Cooler Tube)[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..4FC RR |
90407-14003 |
US $17.11 |
||
|
32921D
|
32921D
32941-22020 Hose(For Oil Cooler Inlet)[09.1980 - 07.1984] LX6#..4FC |
32941-22020 |
US $25.33 |
||
|
32921E
|
32921E
90460-14085
Clamp, Hose(For Oil Cooler)
[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
90460-14085 |
— | ||
| replacement | |||||
|
32921E
|
32921E
90460-20004 Clamp, Hose(For Oil Cooler)[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
90460-20004 |
US $3.14 |
||
|
32921G
|
32921G
90301-10189 Ring, O(For Oil Cooler Tube Union)[09.1980 - 07.1984] GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
90301-10189 |
from US $2.63 |
||
|
32921H
|
32921H
90402-14004 Nut, Union(For Oil Cooler Tube)[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..4FC |
90402-14004 |
US $3.32 |
||
|
32922
|
32922
32922-22131
Tube, Oil Cooler Outlet, No.1
[09.1980 - 08.1982] LX60..4FC |
32922-22131 |
— | ||
|
32922
|
32922
32922-22320
Tube, Oil Cooler Outlet, No.1
[08.1982 - 07.1984] LX6#..4FC |
32922-22320 |
— | ||
|
32922A
|
32922A
32941-22020 Hose(For Oil Cooler Inlet)[01.1981 - 03.1981] GX6#,LX60..4FC |
32941-22020 |
US $25.33 |
||
|
32922A
|
32922A
90445-14526
Hose(For Oil Cooler Inlet)
[09.1980 - 01.1981] GX6#,LX60..4FC |
90445-14526 |
— | ||
| replacement | |||||
|
32922A
|
32922A
90445-14514
Hose(For Oil Cooler Outlet)
[09.1980 - 01.1981] GX6#,LX60..4FC |
90445-14514 |
— | ||
|
32923
|
32923
32923-30090 Clamp, Automatic Transmission Oil Cooler Tube[09.1980 - 07.1984] LX6#..4FC |
32923-30090 |
US $9.17 |
||
|
32923A
|
32923A
90462-12085 Clamp, Automatic Transmission Oil Cooler Tube[09.1980 - 07.1984] LX6#,RX60..4FC |
90462-12085 |
US $2.91 |
||
|
32924
|
32924
32924-22050
Clamp, Oil Cooler Tube, No.2
[08.1982 - 07.1984] LX6#..4FC |
32924-22050 |
— | ||
|
32924
|
32924
32924-30090 Clamp, Oil Cooler Tube, No.2[09.1980 - 08.1982] LX60..4FC |
32924-30090 |
US $9.90 |
||
|
32924A
|
32924A
90462-12085 Clamp, Automatic Transmission Oil Cooler Tube[09.1980 - 07.1984] GX6#,LX6#,TX60..ATM |
90462-12085 |
US $2.91 |
||
|
32926
|
32926
32926-30011 Cushion, Oil Cooler Tube(Atm)[09.1980 - 08.1982] GX6#,LX60,MX61,RX60,TX60..ATM 長さ＝２５，内径＝８ |
32926-30011 |
US $1.89 |
||
|
32928
|
32928
32928-22030
Clamp, Flexible Hose, No.1
[09.1980 - 08.1982] LX60..4FC |
32928-22030 |
— | ||
|
32928
|
32928
32928-30060 Clamp, Flexible Hose, No.1[08.1982 - 07.1984] LX6#..4FC |
32928-30060 |
US $9.90 |
||
|
32928A
|
32928A
32928-30050 Clamp, Oil Cooler Tube, No.3[09.1980 - 07.1984] LX6#..4FC |
32928-30050 |
US $4.08 |
||
|
32929
|
32929
32929-30050 Clamp, Flexible Hose, No.2[09.1980 - 07.1984] LX6#..4FC |
32929-30050 |
US $9.90 |
||
|
32929A
|
32929A
90462-12085 Clamp, Automatic Transmission Oil Cooler Tube[09.1980 - 07.1984] LX6#..4FC |
90462-12085 |
US $2.91 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.80 |
||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
