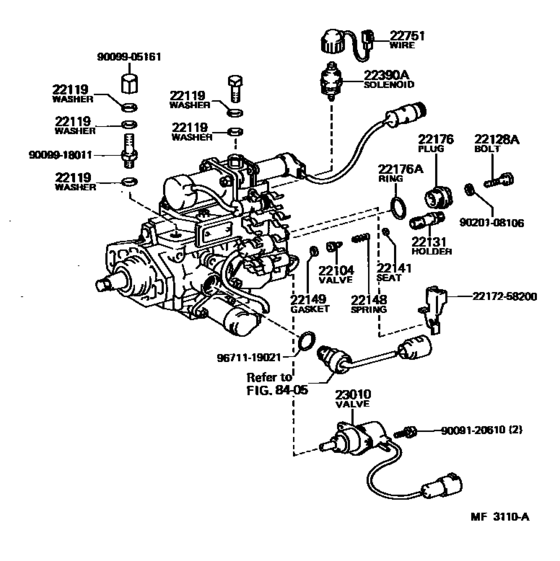

Injection Pump Body ([08.1982 - ] (8208- )2LTE) Diagram Toyota CHASER
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- LX65
- grade
- SXL
- body
- SED
- ENGINE
- 2LTE
- TRANSMISSION
- ATM
- From
- 08.1982
- To
- 07.1984
- Gear Shift Type
- 4FC
- Fuel Induction
- TDE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22104
|
22104
22104-54060 Valve Sub-Assy, Injection Pump Delivery[09.1980 - 07.1984] L,2LTE..LX6# |
22104-54060 |
from US $53.44 |
||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[08.1982 - 07.1984] 2LTE..LX65 |
90201-12109 |
from US $1.29 |
||
|
22128A
|
22128A
22128-54010
Bolt, Distributive Head
[09.1980 - 07.1984] L,2LTE..LX6# |
22128-54010 |
— | ||
|
22131
|
22131
22131-54110
Holder, Delivery Valve
[09.1980 - 07.1984] L,2LTE..LX6# |
22131-54110 |
— | ||
|
22141
|
22141
22141-54010
Seat, Delivery Valve Spring
[09.1980 - 07.1984] L,2LTE..LX6# |
22141-54010 |
— | ||
|
22148
|
22148
22148-54010 Spring, Delivery Valve[09.1980 - 07.1984] L,2LTE..LX6# |
22148-54010 |
from US $1.40 |
||
|
22149
|
22149
22149-54010 Gasket, Delivery Valve[09.1980 - 07.1984] L,2LTE..LX6# |
22149-54010 |
US $1.25 |
||
|
22176
|
22176
22176-54020 Plug, Distributive Head[09.1980 - 07.1984] L,2LTE..LX6# |
22176-54020 |
from US $10.48 |
||
|
22176A
|
22176A
90099-14052
Ring, O(For Distributive Head Plug)
[09.1980 - 07.1984] L,2LTE..LX6# |
90099-14052 |
— | ||
| replacement | |||||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[09.1980 - 07.1984] L,2LTE..LX6# |
22193-54772 |
from US $2.97 |
||
|
22390A
|
22390A
22390-54110
Solenoid Assy, Fuel Cut
[09.1980 - 07.1984] L,2LTE..LX6# |
22390-54110 |
— | ||
| replacement | |||||
|
22390A
|
22390A
22019-6A511
Solenoid Assy, Fuel Cut
[09.1980 - 07.1984] L,2LTE..LX6# |
22019-6A511 |
— | ||
|
22751
|
22751
22751-64010
Wire Sub-Assy, Fuel Cut Solenoid
[08.1982 - 07.1984] 2LTE..LX65 |
22751-64010 |
— | ||
| replacement | |||||
|
22751
|
22751
22751-55110
Wire Sub-Assy, Fuel Cut Solenoid
[08.1982 - 07.1984] 2LTE..LX65 |
22751-55110 |
— | ||
|
23010
|
23010
23010-54010 Valve Assy, Timing Control[08.1982 - 07.1984] 2LTE..LX65 |
23010-54010 |
US $764.40 |
||
|
2217258200
|
2217258200
22172-58200
Clip, Connector Support, Solenoid
|
22172-58200 |
— | ||
|
9009120610
|
9009120610
90091-20610
New Genuine Part
|
90091-20610 |
— | ||
|
9009905161
|
9009905161
90099-05161 Nut, Timer Round |
90099-05161 |
from US $1.25 |
||
|
9009918011
|
9009918011
90099-18011
Screw, Fuel Pipe Follow
|
90099-18011 |
— | ||
|
9020108106
|
9020108106
90201-08106 Washer(For Cap Nut) |
90201-08106 |
from US $0.78 |
||
|
9671119021
|
9671119021
96711-19021 Ring, O(For Power Steering Solenoid Valve) |
96711-19021 |
from US $2.30 |
||
