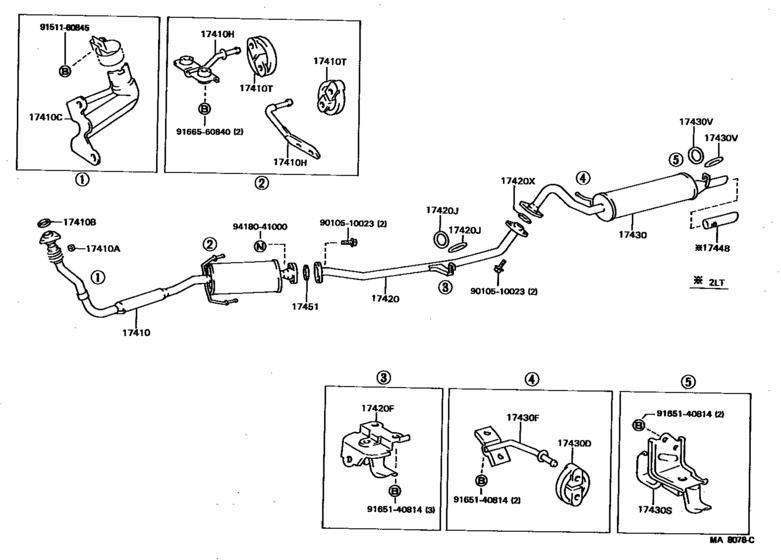

Exhaust Pipe ([08.1984 - ] (8408- )2L#) Diagram Toyota CHASER
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- LX70
- grade
- XL
- body
- HT
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 5F
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-54430 Pipe Assy, Exhaust, Front[08.1984 - 01.1985] 2LT..LX70 |
17410-54430 |
US $556.19 |
||
| replacement | |||||
|
17410
|
17410
17410-54470 Pipe Assy, Exhaust, Front[08.1984 - 01.1985] 2LT..LX70 |
17410-54470 |
US $554.74 |
||
|
17410
|
17410
17410-54470 Pipe Assy, Exhaust, Front[01.1985 - 08.1988] 2LT..LX70 |
17410-54470 |
US $554.74 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1984 - 08.1988] 1GEU,1GG#,2L#,1SU,MTEU,2YPU,3YPU..GX71,LX70,MX71,SX70,YX7# |
90179-10070 |
from US $1.35 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1984 - 08.1988] 1GEU,1GG#,2L#,1SU,MTEU,2YPU,3YPU..GX71,LX70,MX71,SX70,YX7# |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06005
Gasket, Exhaust Pipe
[08.1984 - 08.1988] 2LT,MTEU..LX70,MX71 |
90917-06005 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06042 Gasket, Exhaust Pipe[08.1984 - 08.1988] 2LT,MTEU..LX70,MX71 |
90917-06042 |
from US $4.62 |
||
|
17410C
|
17410C
17571-54230 Bracket, Exhaust Pipe Front (For Front)[08.1984 - 08.1988] 2LT..LX70 |
17571-54230 |
US $29.12 |
||
|
17410H
|
17410H
17504-54050 Bracket, Exhaust Pipe Front (For Center)[08.1984 - 08.1988] 2L#..LX70 SIDE MEMBER |
17504-54050 |
US $21.84 |
||
|
17410H
|
17410H
17583-54060 Bracket, Exhaust Pipe Front (For Center)[08.1984 - 08.1988] 2L#..LX70..5F ENGINE REAR MOUNTING |
17583-54060 |
US $31.01 |
||
|
17410T
|
17410T
17505-64011 Bolt Or Ring, Exhaust Pipe Front (For Center)[08.1984 - 08.1988] 2L#..LX70 |
17505-64011 |
US $23 |
||
|
17420
|
17420
17420-54010 Pipe Assy, Exhaust, Center[08.1984 - 08.1988] 2LT..LX70 |
17420-54010 |
US $209.66 |
||
|
17420F
|
17420F
17506-63020 Bracket, Exhaust Pipe, Center[08.1984 - 08.1988] 2L#,1SU,2YPU,3YPU..LX70,SX70,YX7# |
17506-63020 |
US $48.34 |
||
|
17420J
|
17420J
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[08.1984 - 08.1988] 2L#,1SU..LX70,SX70 |
90301-34207 |
US $11.11 |
||
|
17420X
|
17420X
90917-06012
Gasket, Exhaust Pipe
[08.1984 - 08.1988] 2LT..LX70 |
90917-06012 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06045 Gasket, Exhaust Pipe[08.1984 - 08.1988] 2LT..LX70 |
90917-06045 |
from US $1.60 |
||
|
17430
|
17430
17430-54500 Pipe Assy, Exhaust, Tail[08.1984 - 08.1988] 2LT..LX70 |
17430-54500 |
US $407.68 |
||
|
17430D
|
17430D
17565-63020 Ring, Catalytic Converter[08.1984 - 08.1988] 1GEU,1GG#,2L#,1SU,MTEU,2YPU,3YPU..GX71,LX70,MX71,SX70,YX7# |
17565-63020 |
from US $15.05 |
||
|
17430F
|
17430F
17508-63020 Bracket, Exhaust Tail Pipe(For Center)[08.1984 - 08.1988] 2L#,1SU,2YPU,3YPU..LX70,SX70,YX7# |
17508-63020 |
US $26.50 |
||
|
17430S
|
17430S
17507-70010 Bracket, Exhaust Tail Pipe (For Rear)[08.1984 - 08.1988] 1GEU,1GG#,2L#,1SU,MTEU,2YPU,3YPU..GX71,LX70,MX71,SX70,YX7# |
17507-70010 |
US $52.27 |
||
|
17430V
|
17430V
90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear)[08.1984 - 08.1988] 1GEU,1GG#,2L#,1SU,MTEU..GX71,LX70,MX71,SX70 |
90301-36001 |
from US $4.43 |
||
|
17448
|
17448
17448-63010 Baffle, Tail Pipe[08.1984 - 08.1988] 1GEU,2LT..GX71,LX70 |
17448-63010 |
US $50.23 |
||
|
17451
|
17451
90917-06012
Gasket, Exhaust Pipe
[08.1984 - 08.1988] 2LT..LX70; 1GEU,1GGEU,MTEU..GX71,MX71 REAR |
90917-06012 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[08.1984 - 08.1988] 2LT..LX70; 1GEU,1GGEU,MTEU..GX71,MX71 REAR |
90917-06045 |
from US $1.60 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $3.05 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $0.96 |
||
|
9151160845
|
9151160845
91511-60845 Bolt (For Transfer Stiffener Plate) |
91511-60845 |
US $2.62 |
||
| replacement | |||||
|
9151160845
|
9151160845
91511-B0845 Bolt |
91511-B0845 |
US $3.40 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9166560840
|
9166560840
91665-60840 New Genuine Part |
91665-60840 |
US $2.48 |
||
| replacement | |||||
|
9166560840
|
9166560840
91661-60840 Bolt |
91661-60840 |
US $2.51 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.37 |
||
