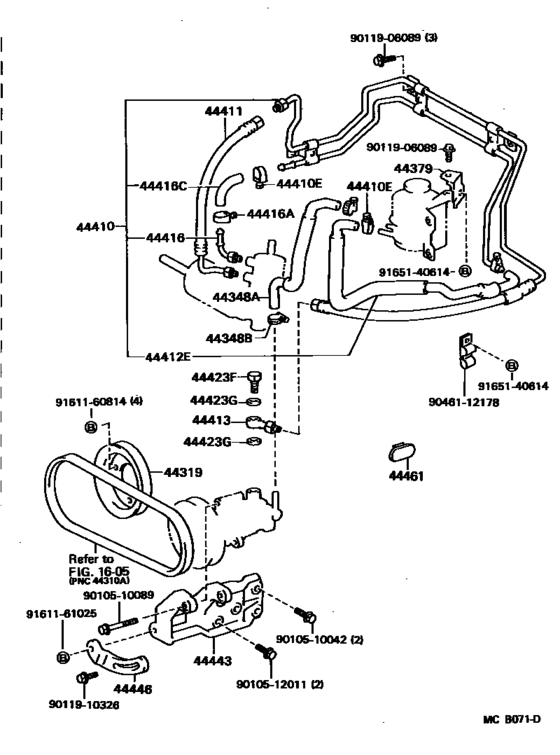

Power Steering Tube ([08.1984 - ] (8408- )LX70) Diagram Toyota CHASER
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- LX70
- grade
- XL
- body
- HT
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 5F
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44319
|
44319
44319-30030
Pulley, Vane Pump Drive
[08.1984 - 08.1988] LX70 |
44319-30030 |
— | ||
|
44348A
|
44348A
44348-22110 Hose, Oil Reservoir To Pump, No.1[08.1984 - 08.1988] LX70 |
44348-22110 |
US $45.57 |
||
|
44348B
|
44348B
90460-26001 Clamp(For Oil Reservoir To Pump Hose)[08.1984 - 08.1986] GX71,LX70,SX70..CBR,DSL,TD,TWC,TWT |
90460-26001 |
US $10.57 |
||
|
44379
|
44379
44379-22050 Bracket, Oil Reservoir, No.2[08.1984 - 08.1988] LX70..XG,XL |
44379-22050 |
US $10.92 |
||
|
44410
|
44410
44410-22180 Tube Assy, Pressure Feed[08.1984 - 05.1985] LX70..XG,XL |
44410-22180 |
US $368.37 |
||
| replacement | |||||
|
44410
|
44410
44410-22181 Tube Assy, Pressure Feed[08.1984 - 05.1985] LX70..XG,XL |
44410-22181 |
US $374.19 |
||
|
44410
|
44410
44410-22181 Tube Assy, Pressure Feed[05.1985 - 08.1988] LX70..XG,XL |
44410-22181 |
US $374.19 |
||
|
44410E
|
44410E
90460-01001 Clamp, Oil Cooler Hose[08.1984 - 08.1988] LX70 |
90460-01001 |
US $10.39 |
||
|
44411
|
44411
44411-22370 Hose, Pressure Feed[08.1984 - 08.1988] LX70..XG,XL |
44411-22370 |
US $160.16 |
||
|
44412E
|
44412E
44412-22280 Hose, Return, No.2[08.1984 - 08.1988] LX70 |
44412-22280 |
US $96.10 |
||
|
44413
|
44413
44413-22180 Tube, Pressure Feed, No.1[08.1984 - 08.1988] LX70 |
44413-22180 |
US $28.25 |
||
|
44416
|
44416
44416-22170
Tube, Return(For Steering Gear Outlet)
[08.1984 - 05.1985] LX70 |
44416-22170 |
— | ||
|
44416
|
44416
44416-22171 Tube, Return(For Steering Gear Outlet)[05.1985 - 08.1988] LX70 |
44416-22171 |
US $17.18 |
||
|
44416A
|
44416A
90460-01001 Clamp, Oil Cooler Hose[08.1984 - 08.1986] GX71,LX70,MX71,YX70 |
90460-01001 |
US $10.39 |
||
|
44416C
|
44416C
44412-22180 Hose(For Return Tube To Reservior)[08.1984 - 05.1985] LX70 |
44412-22180 |
US $19.36 |
||
|
44416C
|
44416C
44412-22181 Hose(For Return Tube To Reservior)[05.1985 - 08.1988] LX70 |
44412-22181 |
US $10.63 |
||
|
44423F
|
44423F
90401-16008 Bolt, Union(For Pressure Feed Tube)[08.1984 - 08.1988] LX70 |
90401-16008 |
from US $10.93 |
||
|
44423G
|
44423G
90430-16242 Gasket, W/head Straight Screw Plug[08.1984 - 08.1988] LX70;GX71..4FC..TWC |
90430-16242 |
from US $0.82 |
||
|
44443
|
44443
44443-22080 Bracket, Pump[08.1984 - 08.1988] LX70 |
44443-22080 |
US $224.22 |
||
|
44446
|
44446
44446-30070 Strut, Adjusting[08.1984 - 08.1988] LX70 |
44446-30070 |
US $14.41 |
||
|
44461
|
44461
44461-22020 Insulator, Tube Refrigerant[08.1984 - 08.1988] LX70..KYO,XG;LX70..XL..TD;GX71,MX71,SX70,YX7#..(AVT,GT,KYO)..(CBR,LPG,TBO,TWC,TWT) |
44461-22020 |
US $3.93 |
||
|
9010510042
|
9010510042
90105-10042 Bolt, Flywheel Setting |
90105-10042 |
from US $1.29 |
||
|
9010510089
|
9010510089
90105-10089 Bolt(For Alternator) |
90105-10089 |
US $6.45 |
||
|
9010512011
|
9010512011
90105-12011 Bolt, Flywheel Setting |
90105-12011 |
US $3.93 |
||
|
9011906089
|
9011906089
90119-06089 New Genuine Part |
90119-06089 |
US $2.87 |
||
|
9011910326
|
9011910326
90119-10326
New Genuine Part
|
90119-10326 |
— | ||
| replacement | |||||
|
9011910326
|
9011910326
90119-10719 BOLT WWASHER |
90119-10719 |
US $4.12 |
||
|
9046112178
|
9046112178
90461-12178 New Genuine Part |
90461-12178 |
US $6.70 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
