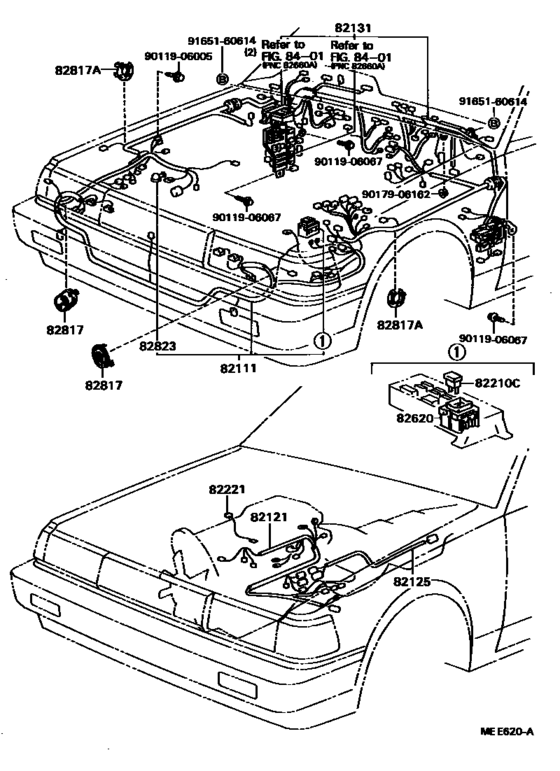

Wiring & Clamp ([08.1984 - ] (8408- )LX70) Diagram Toyota CHASER
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- LX70
- grade
- XL
- body
- HT
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 5F
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-22480
Wire, Engine Room Main
[08.1984 - 08.1986] LX70 |
82111-22480 |
— | ||
|
82111
|
82111
82111-22481 Wire, Engine Room Main[08.1986 - 08.1988] LX70 |
82111-22481 |
US $709.07 |
||
|
82121
|
82121
82121-22280 Wire, Engine[08.1984 - 01.1985] LX70 |
82121-22280 |
US $304.30 |
||
| replacement | |||||
|
82121
|
82121
82121-22380 Wire, Engine[08.1984 - 01.1985] LX70 |
82121-22380 |
US $331.97 |
||
|
82121
|
82121
82121-22281 Wire, Engine[01.1985 - 07.1986] LX70 |
82121-22281 |
US $305.76 |
||
| replacement | |||||
|
82121
|
82121
82121-22380 Wire, Engine[01.1985 - 07.1986] LX70 |
82121-22380 |
US $331.97 |
||
|
82121
|
82121
82121-22282 Wire, Engine[07.1986 - 09.1987] LX70 |
82121-22282 |
US $310.13 |
||
|
82121
|
82121
82121-22390 Wire, Engine[09.1987 - 01.1988] LX70..5F |
82121-22390 |
US $340.70 |
||
| replacement | |||||
|
82121
|
82121
82121-22391 Wire, Engine[09.1987 - 01.1988] LX70..5F |
82121-22391 |
US $404.77 |
||
|
82121
|
82121
82121-22391 Wire, Engine[01.1988 - 08.1988] LX70..5F |
82121-22391 |
US $404.77 |
||
|
82125
|
82125
82125-22030 Wire, Transmission[08.1984 - 08.1986] GX71,LX70,SX70..5F..(CBR,DSL,TD,TWC,TWT) |
82125-22030 |
US $31.16 |
||
|
82131
|
82131
82131-22630 Wire, Cowl[08.1984 - 01.1985] LX70..TD |
82131-22630 |
US $2,154.88 |
||
| replacement | |||||
|
82131
|
82131
82131-22631
Wire, Cowl
[08.1984 - 01.1985] LX70..TD |
82131-22631 |
— | ||
|
82131
|
82131
82131-22631
Wire, Cowl
[01.1985 - 09.1985] LX70..TD |
82131-22631 |
— | ||
|
82131
|
82131
82131-22632
Wire, Cowl
[09.1985 - 08.1986] LX70..TD |
82131-22632 |
— | ||
|
82131
|
82131
82131-22633 Wire, Cowl[08.1986 - 09.1987] LX70..TD |
82131-22633 |
US $2,271.36 |
||
|
82131
|
82131
82131-2A520 Wire, Cowl[09.1987 - 01.1988] LX70..5F..TD |
82131-2A520 |
US $2,184 |
||
| replacement | |||||
|
82131
|
82131
82131-2A521 Wire, Cowl[09.1987 - 01.1988] LX70..5F..TD |
82131-2A521 |
US $2,184 |
||
|
82131
|
82131
82131-2A521 Wire, Cowl[01.1988 - 08.1988] LX70..5F..TD |
82131-2A521 |
US $2,184 |
||
|
82210C
|
82210C
90982-08188 Fusible Link[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# ３０Ａ，メス端子,30A,AM2 |
90982-08188 |
from US $4.17 |
||
|
82210C
|
82210C
90982-08189 Fusible Link[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# ４０Ａ，メス端子,40A |
90982-08189 |
US $7.88 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[08.1984 - 08.1986] GX71,LX70,MX71,SX70,YX70 ８０Ａ，オス端子,80A |
90982-08203 |
from US $7.23 |
||
|
82221
|
82221
82221-30030 Wire, Oil Pressure Switch[08.1984 - 08.1988] LX70,MX71 |
82221-30030 |
US $13.40 |
||
|
82620
|
82620
82602-22150 Block Assy, Fusible Link[08.1984 - 08.1986] GX71,LX70,MX71,SX70,YX70..CBR,DSL,LPG,TBO,TD,TWC,TWT |
82602-22150 |
US $26.94 |
||
|
82817
|
82817
82817-22420 Protector, Wiring Harness, No.1[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# |
82817-22420 |
US $2.77 |
||
|
82817A
|
82817A
82817-32010
Protector, Wiring Harness, No.1
[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# |
82817-32010 |
— | ||
|
82823
|
82823
82823-32020 Cap, Terminal, No.1[08.1984 - 08.1988] LX70,MX71 ALTERNATOR(B)TERMINAL |
82823-32020 |
US $4.66 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.97 |
||
|
9017906162
|
9017906162
90179-06162
New Genuine Part
|
90179-06162 |
— | ||
| replacement | |||||
|
9017906162
|
9017906162
90179-06308 NUT |
90179-06308 |
from US $0.92 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
