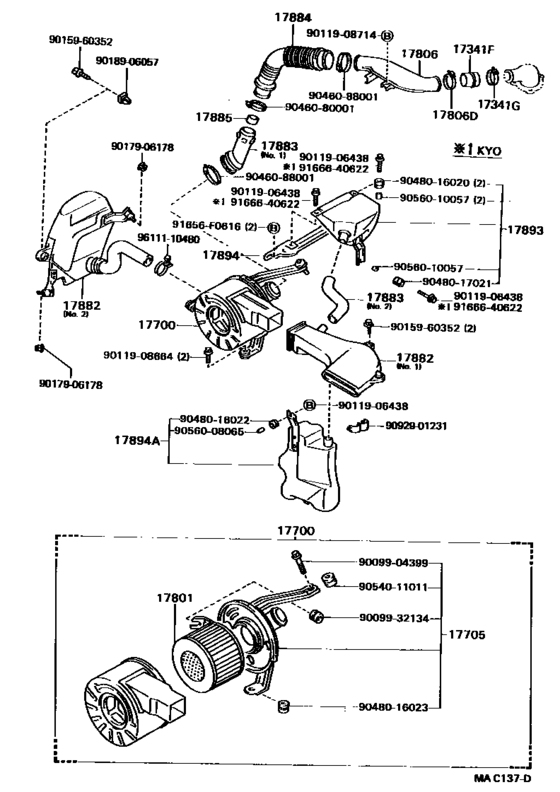

Air Cleaner ([08.1988 - 08.1993] (8808-9308)2L) Diagram Toyota CHASER
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- LX80
- grade
- XL
- body
- HT
- ENGINE
- 2L
- TRANSMISSION
- MTM
- From
- 08.1988
- To
- 10.1992
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341F
|
17341F
17341-54010 Hose, Air, No.1[08.1988 - 10.1992] 2L#..LX80 |
17341-54010 |
from US $19.46 |
||
|
17341G
|
17341G
90460-73001
Clamp Or Clip(For Air Hose, No.1)
[08.1988 - 07.1990] 2L#..LX80 |
90460-73001 |
— | ||
| replacement | |||||
|
17341G
|
17341G
90460-73011 Clamp Or Clip(For Air Hose, No.1)[08.1988 - 07.1990] 2L#..LX80 |
90460-73011 |
US $7.88 |
||
|
17341G
|
17341G
90460-75001 Clamp Or Clip(For Air Hose, No.1)[07.1990 - 07.1991] 2L#..LX80 |
90460-75001 |
US $9.32 |
||
|
17341G
|
17341G
90467-60001 Clamp Or Clip(For Air Hose, No.1)[07.1991 - 10.1992] 2L#..LX80 |
90467-60001 |
US $7.72 |
||
|
17700
|
17700
17700-54440 Cleaner Assy, Air[08.1988 - 10.1992] 2L#..LX80 |
17700-54440 |
US $422.24 |
||
|
17705
|
17705
17705-54220
Cap Sub-Assy, Air Cleaner
[08.1988 - 10.1992] 2L#..LX80; 3YP..YX80 |
17705-54220 |
— | ||
|
17801
|
17801
17801-54090 Element Sub-Assy, Air Cleaner Filter[08.1988 - 10.1992] 2L#..LX80 |
17801-54090 |
US $31.40 |
||
|
17806
|
17806
17103-54060 Pipe Sub-Assy, Air Cleaner, No.2[08.1988 - 10.1992] 2L..LX80 |
17103-54060 |
US $218.40 |
||
|
17806D
|
17806D
90460-67004 Clamp Or Clip(For Air Hose, No.1)[08.1988 - 07.1990] 2L#..LX80 |
90460-67004 |
from US $4.23 |
||
|
17806D
|
17806D
90460-70002
Clamp Or Clip(For Air Hose, No.1)
[07.1990 - 07.1991] 2L#..LX80 |
90460-70002 |
— | ||
|
17806D
|
17806D
90467-56001 Clamp Or Clip(For Air Hose, No.1)[07.1991 - 10.1992] 2L#..LX80 |
90467-56001 |
from US $6.08 |
||
|
17882
|
17882
17882-54350
Hose, Air Cleaner, No.2
[08.1988 - 10.1992] 2L..LX80 NO.1 |
17882-54350 |
— | ||
|
17882
|
17882
17890-54010 Hose, Air Cleaner, No.2[08.1988 - 10.1992] 3YP..YX80 NO.2; 2L..LX80 NO.2 |
17890-54010 |
US $243.15 |
||
|
17883
|
17883
17881-54360 Hose, Air Cleaner, No.3[08.1988 - 10.1992] 2L..LX80 |
17881-54360 |
US $16.31 |
||
| replacement | |||||
|
17883
|
17883
17881-54361 Hose, Air Cleaner, No.3[08.1988 - 10.1992] 2L..LX80 |
17881-54361 |
US $16.31 |
||
|
17883
|
17883
17883-54111
Hose, Air Cleaner, No.3
[08.1988 - 10.1992] 2L#..LX80 NO.2 |
17883-54111 |
— | ||
|
17884
|
17884
17882-54260 Hose, Air Cleaner, No.4[08.1988 - 02.1990] 2L..LX80 |
17882-54260 |
US $28.54 |
||
| replacement | |||||
|
17884
|
17884
17882-54262 Hose, Air Cleaner, No.4[08.1988 - 02.1990] 2L..LX80 |
17882-54262 |
US $28.25 |
||
|
17884
|
17884
17882-54261 Hose, Air Cleaner, No.4[02.1990 - 10.1992] 2L..LX80 |
17882-54261 |
US $28.25 |
||
| replacement | |||||
|
17884
|
17884
17882-54262 Hose, Air Cleaner, No.4[02.1990 - 10.1992] 2L..LX80 |
17882-54262 |
US $28.25 |
||
|
17885
|
17885
17885-54140 Pipe, Air Cleaner[08.1988 - 10.1992] 2L#..LX80 |
17885-54140 |
US $10.19 |
||
|
17893
|
17893
17805-54110 Resonator, Intake Air[08.1988 - 08.1989] 2L#..LX80; 3YP..YX80 |
17805-54110 |
US $142.69 |
||
| replacement | |||||
|
17893
|
17893
17805-54340 Resonator Sub-Assy, Intake Air[08.1988 - 08.1989] 2L#..LX80; 3YP..YX80 |
17805-54340 |
US $142.69 |
||
|
17893
|
17893
17805-54111 Resonator Sub-Assy, Intake Air[08.1989 - 10.1992] 2L#..LX80; 3YP..YX80 |
17805-54111 |
US $142.69 |
||
| replacement | |||||
|
17893
|
17893
17805-54340 Resonator Sub-Assy, Intake Air[08.1989 - 10.1992] 2L#..LX80; 3YP..YX80 |
17805-54340 |
US $142.69 |
||
|
17894
|
17894
17894-54050 Bracket, Resonator[08.1988 - 10.1992] 2L#..LX80; 3YP..YX80 |
17894-54050 |
US $28.39 |
||
|
17894A
|
17894A
17806-54050 Resonator, Intake Air, No.2[08.1988 - 10.1992] 2L#..LX80 |
17806-54050 |
US $110.66 |
||
|
91656F0616
|
91656F0616
91656-F0616
New Genuine Part
|
91656-F0616 |
— | ||
| replacement | |||||
|
91656F0616
|
91656F0616
90119-06482 New Genuine Part |
90119-06482 |
US $1.38 |
||
|
9009904399
|
9009904399
90099-04399
New Genuine Part
|
90099-04399 |
— | ||
|
9009932134
|
9009932134
90099-32134
New Genuine Part
|
90099-32134 |
— | ||
|
9011906438
|
9011906438
90119-06438 New Genuine Part |
90119-06438 |
US $1.60 |
||
|
9011908664
|
9011908664
90119-08664 New Genuine Part |
90119-08664 |
US $2.04 |
||
|
9011908714
|
9011908714
90119-08714
New Genuine Part
|
90119-08714 |
— | ||
| replacement | |||||
|
9011908714
|
9011908714
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
|
9015960352
|
9015960352
90159-60352 New Genuine Part |
90159-60352 |
US $2.15 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.78 |
||
|
9018906057
|
9018906057
90189-06057 GROMMET |
90189-06057 |
from US $0.86 |
||
|
9046080001
|
9046080001
90460-80001
Clamp, Hose
|
90460-80001 |
— | ||
| replacement | |||||
|
9046080001
|
9046080001
90460-80006 Clamp, Hose |
90460-80006 |
from US $8.33 |
||
|
9046088001
|
9046088001
90460-88001 Clamp Or Clip(For Air Hose, No.1) |
90460-88001 |
US $9.50 |
||
|
9048016020
|
9048016020
90480-16020 New Genuine Part |
90480-16020 |
US $2.62 |
||
|
9048016022
|
9048016022
90480-16022 New Genuine Part |
90480-16022 |
US $1.75 |
||
|
9048016023
|
9048016023
90480-16023 New Genuine Part |
90480-16023 |
US $2.48 |
||
|
9048017021
|
9048017021
90480-17021 New Genuine Part |
90480-17021 |
US $2.62 |
||
|
9054011011
|
9054011011
90540-11011
New Genuine Part
|
90540-11011 |
— | ||
|
9056008065
|
9056008065
90560-08065 New Genuine Part |
90560-08065 |
US $1.02 |
||
|
9056010057
|
9056010057
90560-10057 New Genuine Part |
90560-10057 |
US $1.75 |
||
|
9092901231
|
9092901231
90929-01231 New Genuine Part |
90929-01231 |
US $5.82 |
||
|
9166640622
|
9166640622
91666-40622 New Genuine Part |
91666-40622 |
US $1.60 |
||
| replacement | |||||
|
9166640622
|
9166640622
91661-60620 New Genuine Part |
91661-60620 |
US $2.18 |
||
|
9611110480
|
9611110480
96111-10480 Clamp Or Clip, Hose(For Radiator Outlet No.1) |
96111-10480 |
US $2.15 |
||
