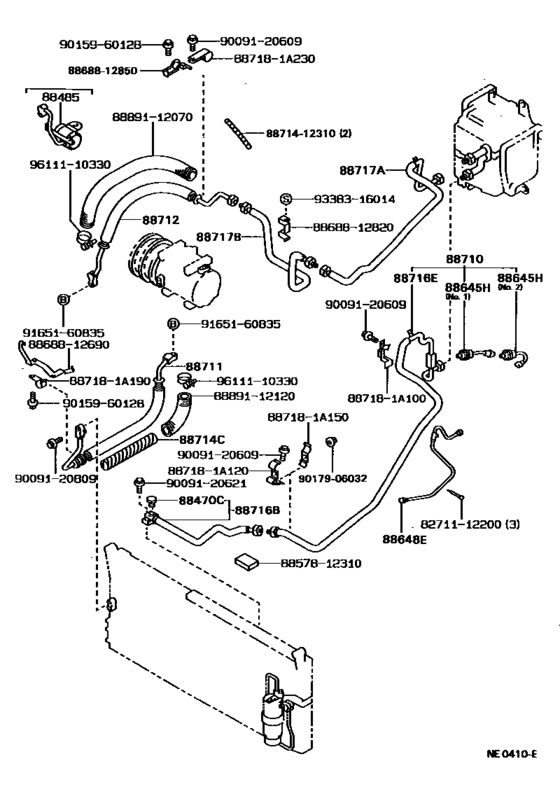

Heating & Air Conditioning - Cooler Piping ([05.1987 - ] (8705- )AE92) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- AE92
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1987
- To
- 05.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88470C
|
88470C
88475-12020
Bolt, Fuse
[05.1987 - 05.1989] AE92..GT,GTV; AE92..GTAPX,GTZ |
88475-12020 |
— | ||
|
88485
|
88485
88485-12020
Muffler
[03.1988 - 05.1988] AE91..L; AE9#..G,GT,GTAPX,GTV,ZI |
88485-12020 |
— | ||
|
88645H
|
88645H
88645-12050
Switch, Pressure No.1
[05.1987 - 05.1988] AE91..L ＮＯ．１; AE9#..G,GT,GTAPX,GTV,GTZ,ZI ＮＯ．１ |
88645-12050 |
— | ||
|
88645H
|
88645H
88645-32020
Switch, Pressure No.1
[05.1987 - 05.1988] AE91..L ＮＯ．２; AE9#..G,GT,GTAPX,GTV,GTZ,ZI ＮＯ．２ |
88645-32020 |
— | ||
| replacement | |||||
|
88645H
|
88645H
88645-16050
Switch, Pressure No.1
[05.1987 - 05.1988] AE91..L ＮＯ．２; AE9#..G,GT,GTAPX,GTV,GTZ,ZI ＮＯ．２ |
88645-16050 |
— | ||
|
88648E
|
88648E
88648-12410
Wiring, Cooler
[05.1987 - 05.1988] AE91..L; AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
88648-12410 |
— | ||
|
88710
|
88710
88706-12040
Tube Assy, Air Conditioner
[05.1987 - 05.1988] AE91..L; AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
88706-12040 |
— | ||
|
88711
|
88711
88711-12510 Hose, Cooler Refrigerant Discharge, No.1[05.1987 - 05.1989] AE92..EFI |
88711-12510 |
US $179.09 |
||
| replacement | |||||
|
88711
|
88711
88711-1A260 Hose, Cooler Refrigerant Discharge, No.1[05.1987 - 05.1989] AE92..EFI |
88711-1A260 |
US $94.64 |
||
|
88712
|
88712
88712-12630 Hose, Cooler Refrigerant Suction, No.1[05.1987 - 03.1988] AE92..EFI |
88712-12630 |
US $179.09 |
||
|
88712
|
88712
88712-12770 Hose, Cooler Refrigerant Suction, No.1[03.1988 - 05.1989] AE92..EFI |
88712-12770 |
US $186.37 |
||
| replacement | |||||
|
88712
|
88712
88712-1A390 Hose, Cooler Refrigerant Suction, No.1[03.1988 - 05.1989] AE92..EFI |
88712-1A390 |
US $106.29 |
||
|
88714C
|
88714C
88714-95402
Insulator, Cooler Refrigerant Hose, No.1
[05.1987 - 05.1989] AE92 |
88714-95402 |
— | ||
|
88716B
|
88716B
88726-12280
Pipe, Cooler Refrigerant Liquid, B
[05.1987 - 05.1988] AE91..L; AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
88726-12280 |
— | ||
|
88716E
|
88716E
88726-12260 Pipe, Cooler Refrigerant Liquid, E[05.1987 - 05.1988] AE91..L; AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
88726-12260 |
US $132.50 |
||
|
88717A
|
88717A
88717-12400
Pipe, Cooler Refrigerant Suction, A
[05.1987 - 05.1988] AE91..L; AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
88717-12400 |
— | ||
|
88717B
|
88717B
88717-12490
Pipe, Cooler Refrigerant Suction, B
[05.1987 - 05.1988] AE91..L; AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
88717-12490 |
— | ||
|
887181A100
|
887181A100
88718-1A100
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A100 |
— | ||
|
887181A120
|
887181A120
88718-1A120
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A120 |
— | ||
|
887181A150
|
887181A150
88718-1A150
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A150 |
— | ||
|
887181A190
|
887181A190
88718-1A190
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A190 |
— | ||
|
887181A230
|
887181A230
88718-1A230
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A230 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
8857812310
|
8857812310
88578-12310
Packing, Cooler Stabilizer Amplifier
|
88578-12310 |
— | ||
|
8868812690
|
8868812690
88688-12690
Bracket, Cooler Diaphragm
|
88688-12690 |
— | ||
|
8868812820
|
8868812820
88688-12820
Bracket, Cooler Diaphragm
|
88688-12820 |
— | ||
|
8868812850
|
8868812850
88688-12850
Bracket, Cooler Diaphragm
|
88688-12850 |
— | ||
|
8871412310
|
8871412310
88714-12310
Hose, Cooler Refrigerant Liquid, No.1
|
88714-12310 |
— | ||
|
8889112070
|
8889112070
88891-12070
Packing (for Cooler)
|
88891-12070 |
— | ||
|
8889112120
|
8889112120
88891-12120
Packing (for Cooler)
|
88891-12120 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.41 |
||
|
9009120621
|
9009120621
90091-20621
New Genuine Part
|
90091-20621 |
— | ||
|
9009120809
|
9009120809
90091-20809
New Genuine Part
|
90091-20809 |
— | ||
|
9015960128
|
9015960128
90159-60128 New Genuine Part |
90159-60128 |
US $2.15 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.52 |
||
|
9338316014
|
9338316014
93383-16014
New Genuine Part
|
93383-16014 |
— | ||
|
9611110330
|
9611110330
96111-10330 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96111-10330 |
US $2.33 |
||
