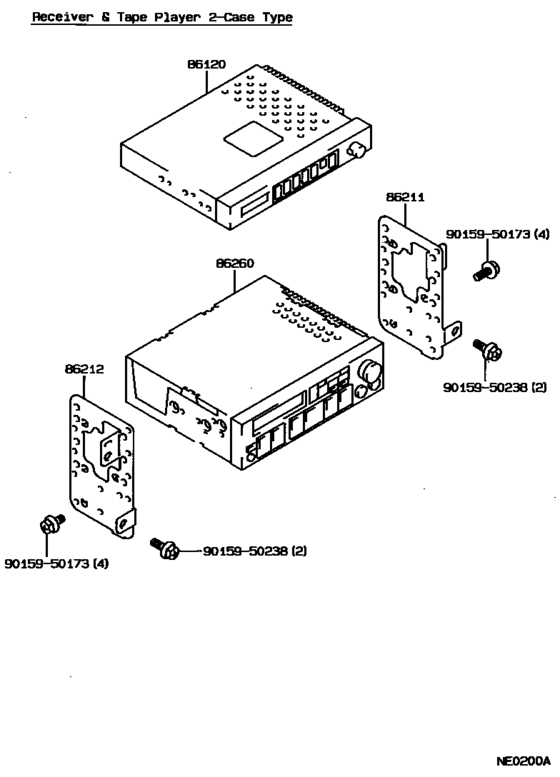

Radio Receiver & Amplifier & Condenser ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- AE92
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1987
- To
- 05.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86120
|
86120
86120-12410 Receiver Assy, Radio[05.1987 - 05.1989] AE92..GTV,GTZ AM; AE9#..G,GT,L AM |
86120-12410 |
US $393.12 |
||
|
86120
|
86120
86120-12420 Receiver Assy, Radio[05.1987 - 05.1989] AE9#..G,GT,GTV,GTZ,L AM/FM ETR/2-AMP; AE9#..GTAPX,ZI AM/FM ETR/2-AMP |
86120-12420 |
US $1,384.66 |
||
| replacement | |||||
|
86120
|
86120
86120-12421 Receiver Assy, Radio[05.1987 - 05.1989] AE9#..G,GT,GTV,GTZ,L AM/FM ETR/2-AMP; AE9#..GTAPX,ZI AM/FM ETR/2-AMP |
86120-12421 |
US $1,384.66 |
||
|
86120
|
86120
86120-12540 Receiver Assy, Radio[05.1987 - 05.1989] AE9# ＦＵＪＩＴＳＵ ＴＥＮ,AM/FM ETR,CASSETTE/4-AMP |
86120-12540 |
US $3,174.08 |
||
|
86120
|
86120
86120-32180 Receiver Assy, Radio[05.1987 - 05.1989] AE9#..EFI,SPC AM/FM ETR,CASSETTE 2-DIN/4-AMP |
86120-32180 |
US $3,581.76 |
||
|
86211
|
86211
86211-12240 Bracket, Radio, No.1[05.1987 - 06.1991] AE9# |
86211-12240 |
US $10.05 |
||
|
86212
|
86212
86212-12220 Bracket, Radio, No.2[05.1987 - 06.1991] AE9# |
86212-12220 |
US $10.05 |
||
|
86260
|
86260
86260-19105
Tape Player Assy
[05.1987 - 05.1989] AE92..GTV,GTZ ｵ-ﾄ ﾘﾊﾞ-ｽ,ＴＥＮ; AE9#..G,GT,GTAPX,L,ZI ｵ-ﾄ ﾘﾊﾞ-ｽ,ＴＥＮ |
86260-19105 |
— | ||
|
86260
|
86260
86260-19115
Tape Player Assy
[05.1987 - 05.1989] AE92..GTV,GTZ FM MPX ﾂｷ ｶｾﾂﾄ,ＴＥＮ; AE9#..G,GT,L FM MPX ﾂｷ ｶｾﾂﾄ,ＴＥＮ |
86260-19115 |
— | ||
|
86260
|
86260
86260-19125
Tape Player Assy
[05.1987 - 05.1989] AE9#..G,GT,GTAPX,L,ZI ﾊｲﾊﾟﾜ- ｶｾﾂﾄ,ＴＥＮ; AE92..GTV,GTZ ﾌｴﾝﾀﾞ-ｺﾝﾄﾛ-ﾙ ﾂｷ ｶｾﾂﾄ,ＴＥＮ |
86260-19125 |
— | ||
|
86260
|
86260
86260-19135
Tape Player Assy
[05.1987 - 05.1989] AE9#..G,GT,GTAPX,L,ZI ｲｺﾗｲｻﾞ ﾂｷ,ＴＥＮ; AE92..GTV,GTZ ｲｺﾗｲｻﾞ ﾂｷ ｶｾﾂﾄ,ＴＥＮ |
86260-19135 |
— | ||
|
86260
|
86260
86260-19145
Tape Player Assy
[05.1987 - 05.1989] AE92..GTV,GTZ ｵ-ﾄ ﾘﾊﾞ-ｽ,ＭＡＴＳＵＳＨＩＴＡ; AE9#..G,GT,GTAPX,L,ZI ｵ-ﾄ ﾘﾊﾞ-ｽ,ＭＡＴＳＵＳＨＩＴＡ |
86260-19145 |
— | ||
|
86260
|
86260
86260-19155
Tape Player Assy
[05.1987 - 05.1989] AE9#..G,GT,GTAPX,L,ZI ﾊｲﾊﾟﾜ- ｶｾﾂﾄ,ＭＡＴＳＵＳＨＩＴＡ; AE92..GTV,GTZ ﾌｴﾝﾀﾞ-ｺﾝﾄﾛ-ﾙ ﾂｷ ｶｾﾂﾄ,ＭＡＴＳＵＳＨＩＴＡ |
86260-19155 |
— | ||
|
86260
|
86260
86260-19165
Tape Player Assy
[05.1987 - 05.1989] AE9#..G,GT,GTAPX,L,ZI ｲｺﾗｲｻﾞ ﾂｷ,ＭＡＴＳＵＳＨＩＴＡ; AE92..GTV,GTZ ｲｺﾗｲｻﾞ ﾂｷ ｶｾﾂﾄ,ＭＡＴＳＵＳＨＩＴＡ |
86260-19165 |
— | ||
|
86260
|
86260
86260-19175
Tape Player Assy
[05.1987 - 05.1989] AE92..GTV,GTZ FM MPX ﾂｷ ｶｾﾂﾄ,ＭＡＴＳＵＳＨＩＴＡ; AE9#..G,GT,L FM MPX ﾂｷ ｶｾﾂﾄ,ＭＡＴＳＵＳＨＩＴＡ |
86260-19175 |
— | ||
|
9015950173
|
9015950173
90159-50173 Screw |
90159-50173 |
US $0.52 |
||
|
9015950238
|
9015950238
90159-50238 SCREW WWASHER |
90159-50238 |
US $2.15 |
||
