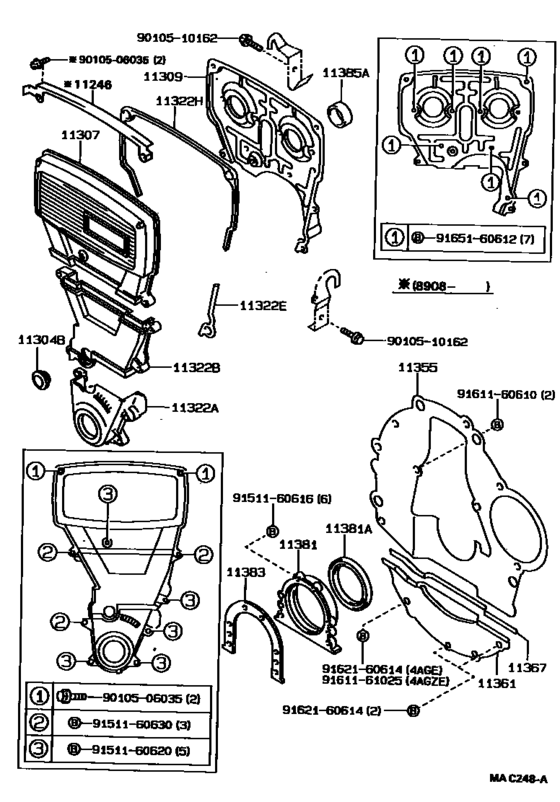

Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )4AG#) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- AE92
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1987
- To
- 05.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11304B
|
11304B
90950-01535
Plug, Semi Circular(For Chain Cover No.2)
[05.1987 - 05.1989] 4AGE..AE92 外径＝２２ |
90950-01535 |
— | ||
|
11307
|
11307
11304-16030
Cover, Sub-Assy, Timing Belt, No.3
[05.1987 - 05.1989] 4AG#..AE92 |
11304-16030 |
— | ||
|
11309
|
11309
11325-16020
Cover Sub-Assy, Timing Belt, No.4
[05.1987 - 05.1989] 4AG#..AE92 |
11325-16020 |
— | ||
|
11322A
|
11322A
11302-16011
Cover, Timing Belt, No.1
[05.1987 - 05.1989] 4AG#..AE92 |
11302-16011 |
— | ||
|
11322B
|
11322B
11303-16021
Cover, Timing Belt, No.2
[05.1987 - 05.1989] 4AG#..AE92 |
11303-16021 |
— | ||
|
11322E
|
11322E
11329-16010 Gasket, Timing Belt Cover, No.2[05.1987 - 05.1989] 4AG#..AE92 |
11329-16010 |
US $10.39 |
||
|
11322H
|
11322H
11319-16011 Gasket, Timing Belt Cover, No.3[05.1987 - 05.1989] 4AG#..AE92 |
11319-16011 |
US $17.74 |
||
|
11355
|
11355
11355-15060 Plate, Rear End[05.1987 - 06.1991] 4AGE..AE92 |
11355-15060 |
US $50.67 |
||
|
11361
|
11361
11361-16040
Cover, Flywheel Housing Under
[05.1987 - 06.1991] 4AG#..AE92 |
11361-16040 |
— | ||
|
11367
|
11367
11367-15030
Gasket, Flywheel Housing Under
[05.1987 - 06.1991] 4AG#..AE92 |
11367-15030 |
— | ||
|
11381
|
11381
11381-15010 Retainer, Engine Rear Oil Seal[05.1987 - 06.1991] 4AG#,5AF#..AE9# |
11381-15010 |
US $47.04 |
||
|
11381A
|
11381A
90311-70004
Seal, Engine Rear Oil
[05.1987 - 08.1988] 4AG#,5AF#..AE9# |
90311-70004 |
— | ||
| replacement | |||||
|
11381A
|
11381A
90311-70007 Seal, Engine Rear Oil[05.1987 - 08.1988] 4AG#,5AF#..AE9# |
90311-70007 |
from US $18.14 |
||
|
11383
|
11383
11383-15010
Gasket, Engine Rear Oil Seal Retainer
[05.1987 - 05.1989] 4AG#,5AF#..AE9# |
11383-15010 |
— | ||
| replacement | |||||
|
11383
|
11383
11383-16010 Gasket, Engine Rear Oil Seal Retainer[05.1987 - 05.1989] 4AG#,5AF#..AE9# |
11383-16010 |
from US $3.74 |
||
|
11385A
|
11385A
90311-35013
Seal, Oil(For Camshaft Setting)
[05.1987 - 06.1991] 4AG#..AE92 |
90311-35013 |
— | ||
| replacement | |||||
|
11385A
|
11385A
90311-35040 Seal, Oil(For Timing Chain Or Belt Cover)[05.1987 - 06.1991] 4AG#..AE92 |
90311-35040 |
from US $6.27 |
||
|
9010506035
|
9010506035
90105-06035 New Genuine Part |
90105-06035 |
US $4.48 |
||
|
9010510162
|
9010510162
90105-10162 New Genuine Part |
90105-10162 |
US $2.62 |
||
| replacement | |||||
|
9010510162
|
9010510162
91512-B1020 Bolt(For Front Transaxle Case Cover) |
91512-B1020 |
US $1.89 |
||
|
9151160616
|
9151160616
91511-60616
BOLTFLANGE
|
91511-60616 |
— | ||
| replacement | |||||
|
9151160616
|
9151160616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.86 |
||
|
9151160620
|
9151160620
91511-60620
Bolt(For Clutch Release Bearing Hub Retainer)
|
91511-60620 |
— | ||
| replacement | |||||
|
9151160620
|
9151160620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.72 |
||
|
9151160630
|
9151160630
91511-60630 BOLT |
91511-60630 |
US $2.15 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.80 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.61 |
||
