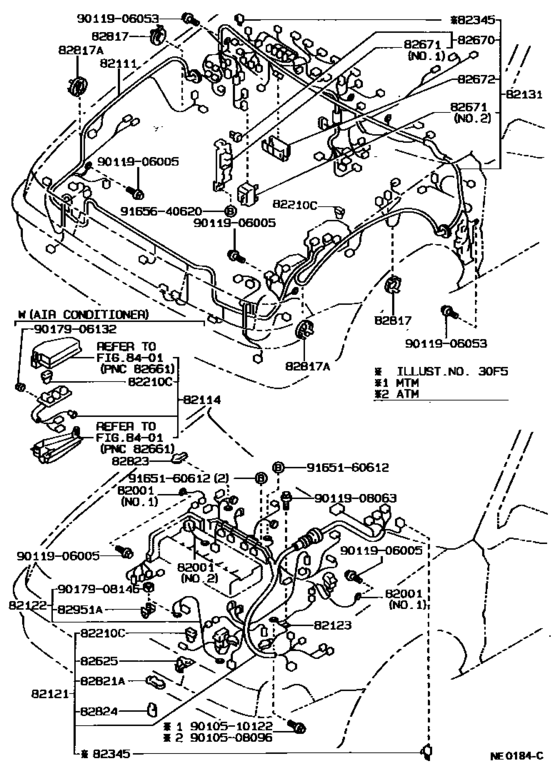

Wiring & Clamp ([05.1987 - ] (8705- )AE92..EFI) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- AE92
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1987
- To
- 05.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07206 Cable, Bond, No.1[05.1987 - 06.1991] AE9# ＮＯ．１ |
90980-07206 |
US $8.56 |
||
|
82001
|
82001
90980-07235
Cable, Bond, No.1
[05.1987 - 06.1991] AE92 ＮＯ．２ |
90980-07235 |
— | ||
|
82111
|
82111
82111-1A390 Wire, Engine Room Main[05.1987 - 05.1989] AE9#..GT,GTV,GTZ,ZI |
82111-1A390 |
US $548.91 |
||
|
82114
|
82114
82114-12040
Wire, Engine Room, No.4
[05.1987 - 06.1991] AE91..CBR,EFIS;AE9#..GT,GTAPX,GTV,GTZ,ZI |
82114-12040 |
— | ||
|
82121
|
82121
82121-1A180 Wire, Engine[05.1987 - 08.1988] AE92..5F..EFI |
82121-1A180 |
US $848.85 |
||
|
82121
|
82121
82121-1A181 Wire, Engine[08.1988 - 05.1989] AE92..5F..EFI |
82121-1A181 |
US $950.77 |
||
|
82122
|
82122
82122-12300 Wire, Engine, No.2[05.1987 - 05.1989] AE92..EFI |
82122-12300 |
US $70.91 |
||
|
82122
|
82122
82122-12310
Wire, Engine, No.2
[05.1987 - 05.1988] AE92..EFI ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
82122-12310 |
— | ||
|
82123
|
82123
82123-12160 Wire, Engine, No.3[05.1987 - 06.1991] AE9#..4FC,5F |
82123-12160 |
US $43.10 |
||
|
82131
|
82131
82131-1E260 Wire, Cowl[05.1987 - 06.1988] AE92..5F..(GT,GTV) |
82131-1E260 |
US $1,343.89 |
||
|
82131
|
82131
82131-1E261 Wire, Cowl[06.1988 - 05.1989] AE92..5F..(GT,GTV) |
82131-1E261 |
US $1,233.23 |
||
|
82210C
|
82210C
90982-08188 Fusible Link[05.1987 - 05.1989] AE9# ３０Ａ，メス端子 |
90982-08188 |
from US $4.17 |
||
|
82210C
|
82210C
90982-08189 Fusible Link[05.1987 - 06.1991] AE9#..EFI,EFIS,SPC ４０Ａ，メス端子 |
90982-08189 |
US $7.88 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[05.1987 - 10.1987] AE9#..EFI,SPC ８０Ａ，オス端子 |
90982-08203 |
from US $7.23 |
||
|
82210C
|
82210C
90982-08223 Fusible Link[05.1987 - 10.1987] AE9#..EFI,SPC ３０Ａ，オス端子 |
90982-08223 |
US $12.72 |
||
|
82345
|
82345
82345-12030 Diode[05.1987 - 05.1989] AE92..EFI ＮＯ．２; AE92..SPC NO.2 |
82345-12030 |
US $11.36 |
||
|
82345
|
82345
82345-12050 Diode[05.1987 - 05.1989] AE92..SPC NO.3; AE92..5F..EFI;AE91..ATM..CBR NO.3 |
82345-12050 |
US $14.16 |
||
|
82345
|
82345
82345-20040 Diode[05.1987 - 05.1989] AE92..EFI NO.4 |
82345-20040 |
US $12.06 |
||
|
82625
|
82625
82625-12030 Terminal, Fusible Link[05.1987 - 06.1991] AE92 |
82625-12030 |
US $15.87 |
||
|
82670
|
82670
82670-12090 Block Assy, Junction, No.1[05.1987 - 05.1989] AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
82670-12090 |
US $174.72 |
||
|
82671
|
82671
82671-12020 Block, Junction[05.1987 - 06.1991] AE9# ＮＯ．２ |
82671-12020 |
US $24.17 |
||
|
82671
|
82671
82671-12030 Block, Junction[05.1987 - 06.1991] AE9# ＮＯ．１ |
82671-12030 |
US $174.72 |
||
|
82672
|
82672
82672-12100 Cover, Junktion Block[05.1987 - 06.1991] AE9# |
82672-12100 |
US $6.41 |
||
|
82817
|
82817
82817-14350 Protector, Wiring Harness, No.1[05.1987 - 06.1991] AE9# |
82817-14350 |
US $12.67 |
||
|
82817A
|
82817A
82817-32010
Protector, Wiring Harness, No.1
[05.1987 - 06.1991] AE9# |
82817-32010 |
— | ||
|
82821A
|
82821A
82821-12190 Cover, Connector(For Battery Terminal)[05.1987 - 06.1991] AE92 |
82821-12190 |
from US $8.05 |
||
|
82823
|
82823
82823-22050 Cap, Terminal, No.1[05.1987 - 06.1991] AE9# |
82823-22050 |
US $6.99 |
||
|
82824
|
82824
82824-32030 Connector, Wiring Harness[05.1987 - 06.1991] AE9# |
82824-32030 |
US $8.91 |
||
|
82951A
|
82951A
82951-17010 Terminal, Starter[05.1987 - 05.1989] AE92..EFI |
82951-17010 |
US $11.07 |
||
|
9010508096
|
9010508096
90105-08096
New Genuine Part
|
90105-08096 |
— | ||
|
9010510122
|
9010510122
90105-10122 New Genuine Part |
90105-10122 |
US $1.22 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9011906053
|
9011906053
90119-06053 New Genuine Part |
90119-06053 |
US $0.96 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.51 |
||
|
9017906132
|
9017906132
90179-06132
Clip(For Front Bumper), No.1
|
90179-06132 |
— | ||
| replacement | |||||
|
9017906132
|
9017906132
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.86 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.61 |
||
