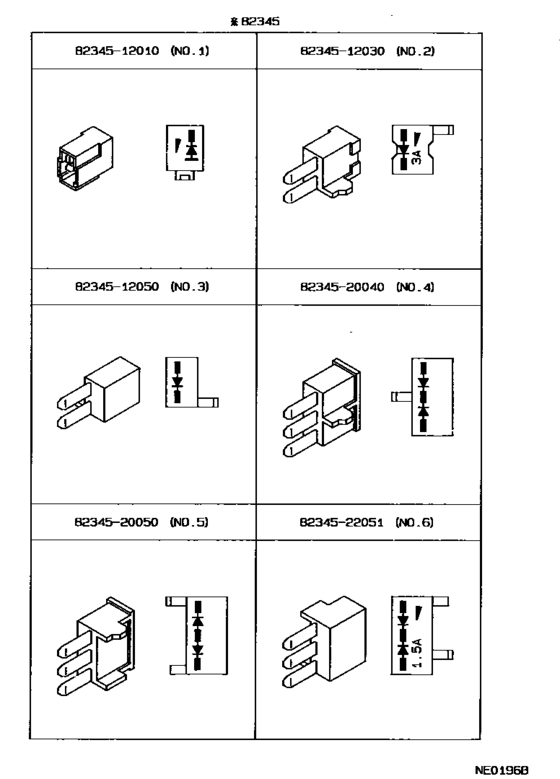

Wiring & Clamp ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- AE92
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1987
- To
- 05.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82345
|
82345
82345-12030 Diode[05.1987 - 05.1989] AE92..EFI ＮＯ．２; AE92..SPC NO.2 |
82345-12030 |
US $11.36 |
||
|
82345
|
82345
82345-12050 Diode[05.1987 - 05.1989] AE92..SPC NO.3; AE92..5F..EFI;AE91..ATM..CBR NO.3 |
82345-12050 |
US $14.16 |
||
|
82345
|
82345
82345-20040 Diode[05.1987 - 05.1989] AE92..EFI NO.4 |
82345-20040 |
US $12.06 |
||
|
8234512010
|
8234512010
82345-12010
Diode
|
82345-12010 |
— | ||
| replacement | |||||
|
8234512010
|
8234512010
82345-12020 Diode |
82345-12020 |
US $15.55 |
||
|
8234512030
|
8234512030
82345-12030 Diode |
82345-12030 |
US $11.36 |
||
|
8234512050
|
8234512050
82345-12050 Diode |
82345-12050 |
US $14.16 |
||
|
8234520040
|
8234520040
82345-20040 Diode |
82345-20040 |
US $12.06 |
||
|
8234520050
|
8234520050
82345-20050 Diode |
82345-20050 |
US $12.06 |
||
|
8234522051
|
8234522051
82345-22051 Diode |
82345-22051 |
US $12.75 |
||
