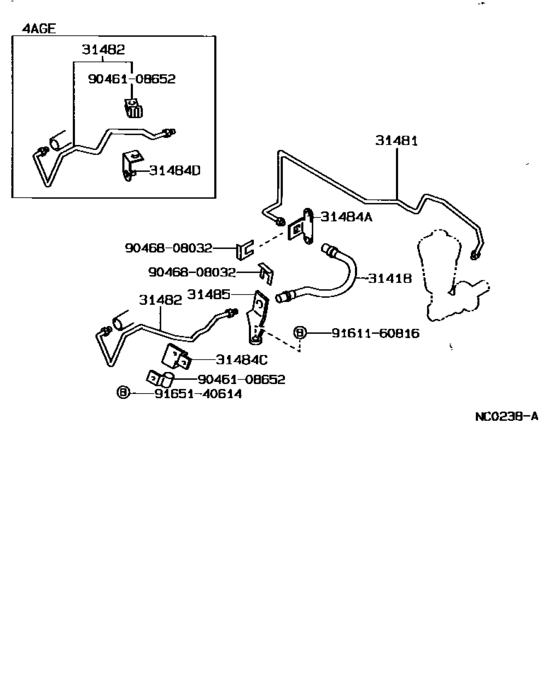

Clutch Pedal & Flexible Hose ([08.1987 - 08.1989] (8708-8908)5F) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- GTS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31418
|
31418
90931-01003 Hose, ClutchCLUTCH [09.1987 - 05.1989] AE92..EFI |
90931-01003 |
US $25.33 |
||
| replacement | |||||
|
31418
|
31418
96816-50390 Hose, Clutch, No.1[09.1987 - 05.1989] AE92..EFI |
96816-50390 |
US $28.10 |
||
|
31418
|
31418
90931-01063 Hose, ClutchCLUTCH [05.1989 - 06.1991] AE92..GTS |
90931-01063 |
US $24.90 |
||
|
31418
|
31418
96816-50420
Hose, Clutch
[08.1987 - 09.1987] AE92..5F |
96816-50420 |
— | ||
|
31481
|
31481
31481-12190 Tube, Clutch Master Cylinder To Flexible HoseCLUTCH MASTER CYLINDER TO FLEXIBLE HOSE [08.1987 - 05.1989] AE92..5F |
31481-12190 |
US $14.41 |
||
|
31481
|
31481
31481-12220
Tube, Clutch Master Cylinder To Flexible Hose
[05.1989 - 06.1991] AE92..5F |
31481-12220 |
— | ||
|
31482
|
31482
31482-12080
Tube, Clutch Release Cylinder To Flexible Hose
[08.1987 - 05.1989] AE92..EFI |
31482-12080 |
— | ||
|
31482
|
31482
31482-12081
Tube, Clutch Release Cylinder To Flexible Hose
[05.1989 - 06.1991] AE92..GTS |
31482-12081 |
— | ||
|
31484A
|
31484A
31484-12050 Bracket, Flexible Hose, No.1(For Clutch)[08.1987 - 05.1989] AE92..5F |
31484-12050 |
US $9.46 |
||
|
31484A
|
31484A
31484-12160
Bracket, Flexible Hose, No.1(For Clutch)
[05.1989 - 06.1991] AE92..5F |
31484-12160 |
— | ||
|
31484C
|
31484C
31484-12110 Bracket, Clutch Tube, No.1[08.1987 - 06.1991] AE92..5F |
31484-12110 |
US $3.32 |
||
|
31484D
|
31484D
31484-12150 Bracket, Clutch Tube, No.2[08.1987 - 06.1991] AE92..GTS |
31484-12150 |
US $3.93 |
||
|
31485
|
31485
31484-12130 Bracket, Flexible Hose, No.2(For Clutch)[08.1987 - 05.1989] AE92..EFI |
31484-12130 |
US $15.58 |
||
|
31485
|
31485
31484-12210 Bracket, Flexible Hose, No.2(For Clutch)[05.1989 - 06.1991] AE92..GTS |
31484-12210 |
US $10.63 |
||
|
9046108652
|
9046108652
90461-08652 Clamp, Brake Tube, No.8 |
90461-08652 |
US $1.05 |
||
|
9046808032
|
9046808032
90468-08032 CLIP |
90468-08032 |
US $4.12 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
