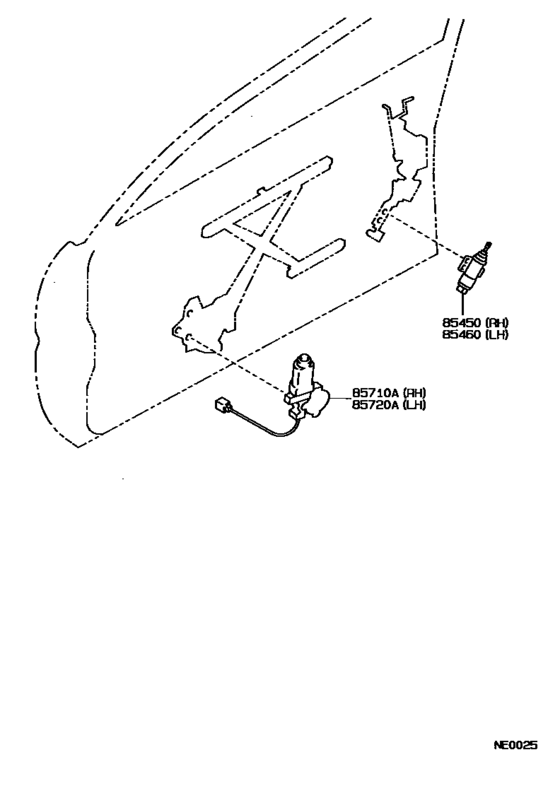

Door Motor & Door Solenoid ([08.1987 - ] (8708- )GTS,SR5) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- GTS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85450
|
85450
85450-12180
Solenoid Assy, Door Control, Front Rh
[08.1987 - 06.1991] AE92..GTS,SR5 |
85450-12180 |
— | ||
| replacement | |||||
|
85450
|
85450
85450-32060 Solenoid Assy, Door Control, Rear LhDOOR CONTROL, REAR LH [08.1987 - 06.1991] AE92..GTS,SR5 |
85450-32060 |
US $257.71 |
||
|
85460
|
85460
85450-12190
Solenoid Assy, Door Control, Front Lh
[08.1987 - 06.1991] AE92..GTS,SR5 |
85450-12190 |
— | ||
|
85710A
|
85710A
85710-20060 Motor Assy, Power Window Regulator, Front Rh[08.1987 - 06.1991] AE92..GTS,SR5 |
85710-20060 |
US $343.62 |
||
| replacement | |||||
|
85710A
|
85710A
85710-28080 Motor Assy, Power Window Regulator, Front Rh[08.1987 - 06.1991] AE92..GTS,SR5 |
85710-28080 |
US $343.62 |
||
|
85720A
|
85720A
85720-20060 Motor Assy, Power Window Regulator, Front Lh[08.1987 - 06.1991] AE92..GTS,SR5 |
85720-20060 |
US $343.62 |
||
| replacement | |||||
|
85720A
|
85720A
85720-28080
Motor Assy, Power Window Regulator, Front Lh
[08.1987 - 06.1991] AE92..GTS,SR5 |
85720-28080 |
— | ||
