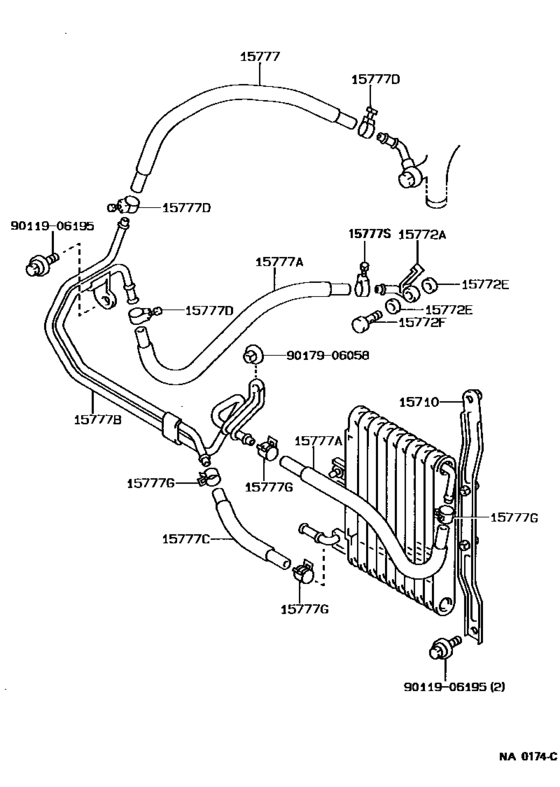

Engine Oil Cooler ([08.1987 - ] W(OIL COOLER) (8708- )4AGE) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- GTS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15710
|
15710
15700-16040 Cooler Assy, OilOIL [08.1987 - 06.1991] 4AGE..AE92 |
15700-16040 |
US $556.19 |
||
|
15772A
|
15772A
90405-10030
Union(For Oil Pipe)
[08.1987 - 06.1991] 4AGE..AE92 |
90405-10030 |
— | ||
|
15772E
|
15772E
90430-12018
Gasket(For Oil Cooler)
[08.1987 - 05.1990] 4AGE..AE92 |
90430-12018 |
— | ||
| replacement | |||||
|
15772E
|
15772E
90430-12031 Gasket (For Oil Pan Drain Plug)[08.1987 - 05.1990] 4AGE..AE92 |
90430-12031 |
from US $0.84 |
||
|
15772E
|
15772E
90430-12027
Gasket(For Oil Pan Drain Plug)
[05.1990 - 06.1991] 4AGE..AE92 |
90430-12027 |
— | ||
| replacement | |||||
|
15772E
|
15772E
90430-12031 Gasket (For Oil Pan Drain Plug)[05.1990 - 06.1991] 4AGE..AE92 |
90430-12031 |
from US $0.84 |
||
|
15772F
|
15772F
90401-12009 Bolt, Union, No.1[08.1987 - 06.1991] 4AGE..AE92 |
90401-12009 |
US $4.66 |
||
|
15777
|
15777
15777-16090 Hose, Oil CoolerOIL COOLER [08.1987 - 06.1991] 4AGE..AE92 |
15777-16090 |
US $43.97 |
||
|
15777A
|
15777A
15776-16020
Hose, Oil Cooler
[08.1987 - 08.1989] 4AGE..AE92 UNION SIDE |
15776-16020 |
— | ||
|
15777A
|
15777A
15778-16020
Hose, Oil Cooler
[08.1987 - 06.1991] 4AGE..AE92 COOLER SIDE |
15778-16020 |
— | ||
|
15777B
|
15777B
15767-16080 Pipe, Oil CoolerOIL COOLER [08.1987 - 12.1987] 4AGE..AE92 |
15767-16080 |
US $71.64 |
||
|
15777B
|
15777B
15767-16090
Pipe, Oil Cooler
[12.1987 - 06.1991] 4AGE..AE92 |
15767-16090 |
— | ||
|
15777C
|
15777C
15779-16010
Hose, Oil Cooler
[08.1987 - 12.1987] 4AGE..AE92 |
15779-16010 |
— | ||
|
15777C
|
15777C
15779-16020
Hose, Oil Cooler
[12.1987 - 06.1991] 4AGE..AE92 |
15779-16020 |
— | ||
|
15777D
|
15777D
90460-01001 Clamp, Oil Cooler Hose[08.1987 - 06.1991] 4AGE..AE92 |
90460-01001 |
US $10.39 |
||
|
15777G
|
15777G
90467-16004
Clamp, Oil Cooler Hose
[08.1987 - 06.1991] 4AGE..AE92 |
90467-16004 |
— | ||
| replacement | |||||
|
15777G
|
15777G
96133-41500 Clamp Or Clip(For Air Hose, No.5)[08.1987 - 06.1991] 4AGE..AE92 |
96133-41500 |
from US $2.32 |
||
|
15777S
|
15777S
90460-01001 Clamp, Oil Cooler Hose[08.1987 - 06.1991] 4AGE..AE92 |
90460-01001 |
US $10.39 |
||
|
9011906195
|
9011906195
90119-06195 New Genuine Part |
90119-06195 |
US $2.15 |
||
|
9017906058
|
9017906058
90179-06058
Nut, Wire Adjusting, No.1
|
90179-06058 |
— | ||
| replacement | |||||
|
9017906058
|
9017906058
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.66 |
||
