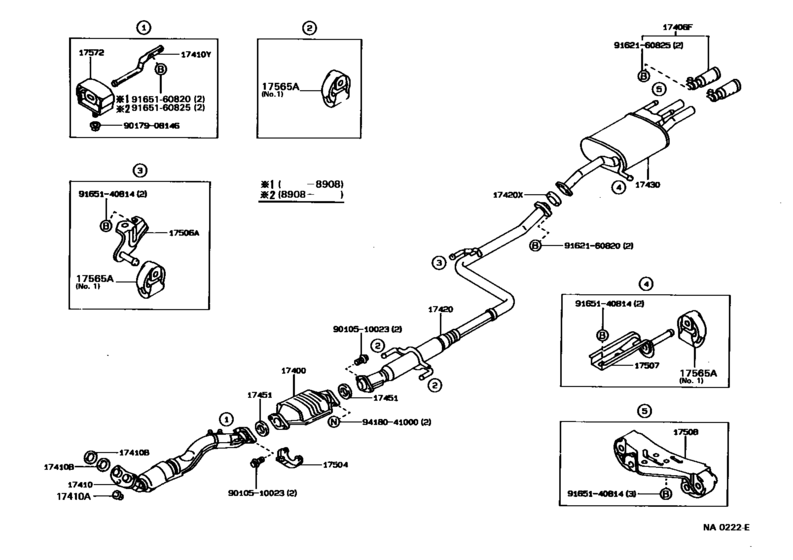

Exhaust Pipe ([08.1987 - ] (8708- )4AGE) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- GTS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
18450-16210
Converter Assy, W/catalyst
[08.1987 - 07.1988] 4AGE..AE92 |
18450-16210 |
— | ||
| replacement | |||||
|
17400
|
17400
18450-16250 Converter Assy, W/catalystW/CATALYST [08.1987 - 07.1988] 4AGE..AE92 |
18450-16250 |
US $1,485.12 |
||
|
17400
|
17400
18450-16250 Converter Assy, W/catalystW/CATALYST [07.1988 - 08.1989] 4AGE..AE92 |
18450-16250 |
US $1,485.12 |
||
|
17400
|
17400
18450-16420
Converter Assy, W/catalyst
[08.1989 - 06.1991] 4AGE..AE92 |
18450-16420 |
— | ||
|
17406F
|
17406F
17406-19015
Diffuser Sub-Assy, Exhaust Gas
[08.1987 - 08.1989] 4AGE..AE92 |
17406-19015 |
— | ||
|
17406F
|
17406F
17406-19025
Diffuser Sub-Assy, Exhaust Gas
[08.1989 - 06.1991] 4AGE..AE92 |
17406-19025 |
— | ||
|
17410
|
17410
17410-16380
Pipe Assy, Exhaust, Front
[08.1987 - 08.1989] 4AGE..AE92..CND |
17410-16380 |
— | ||
|
17410
|
17410
17410-16680
Pipe Assy, Exhaust, Front
[08.1989 - 06.1991] 4AGE..AE92 |
17410-16680 |
— | ||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1987 - 06.1991] 4AGE..AE92 |
90179-10070 |
from US $1.35 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1987 - 06.1991] 4AGE..AE92 |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06004
Gasket(For Manifold Extension)
[08.1987 - 03.1989] 4AGE..AE92 |
90917-06004 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[08.1987 - 03.1989] 4AGE..AE92 |
90917-06039 |
from US $2.26 |
||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[03.1989 - 06.1991] 4AGE..AE92 |
90917-06039 |
from US $2.26 |
||
|
17410Y
|
17410Y
17561-16130 Bolt Or Ring, Exhaust Pipe Front (For Rear)[08.1987 - 06.1991] 4AGE..AE92 |
17561-16130 |
US $13.10 |
||
|
17420
|
17420
17420-16260
Pipe Assy, Exhaust, Center
[08.1987 - 08.1989] 4AGE..AE92 |
17420-16260 |
— | ||
| replacement | |||||
|
17420
|
17420
17420-16100 Pipe Assy, Exhaust, Center[08.1987 - 08.1989] 4AGE..AE92 |
17420-16100 |
US $358.18 |
||
|
17420
|
17420
17420-16400 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [08.1989 - 06.1991] 4AGE..AE92 |
17420-16400 |
US $428.06 |
||
| replacement | |||||
|
17420
|
17420
17420-16420 Pipe Assy, Exhaust, Center[08.1989 - 06.1991] 4AGE..AE92 |
17420-16420 |
US $428.06 |
||
|
17420X
|
17420X
90917-06012
Gasket, Exhaust Pipe
[08.1987 - 03.1989] 4AGE..AE92 |
90917-06012 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06045 Gasket, Exhaust Pipe[08.1987 - 03.1989] 4AGE..AE92 |
90917-06045 |
from US $1.60 |
||
| replacement | |||||
|
17420X
|
17420X
90080-43028 Gasket, Exhaust Pipe[08.1987 - 03.1989] 4AGE..AE92 |
90080-43028 |
US $26.18 |
||
|
17420X
|
17420X
90917-06045 Gasket, Exhaust Pipe[03.1989 - 08.1989] 4AGE..AE92 |
90917-06045 |
from US $1.60 |
||
| replacement | |||||
|
17420X
|
17420X
90080-43028 Gasket, Exhaust Pipe[03.1989 - 08.1989] 4AGE..AE92 |
90080-43028 |
US $26.18 |
||
|
17420X
|
17420X
90917-06047
Gasket, Exhaust Pipe
[08.1989 - 04.1991] 4AGE..AE92 |
90917-06047 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06045 Gasket, Exhaust Pipe[08.1989 - 04.1991] 4AGE..AE92 |
90917-06045 |
from US $1.60 |
||
| replacement | |||||
|
17420X
|
17420X
90080-43028 Gasket, Exhaust Pipe[08.1989 - 04.1991] 4AGE..AE92 |
90080-43028 |
US $26.18 |
||
|
17430
|
17430
17430-16380
Pipe Assy, Exhaust, Tail
[08.1987 - 02.1988] 4AGE..AE92..CND; 4AGE..AE92..USA COLD SPEC |
17430-16380 |
— | ||
| replacement | |||||
|
17430
|
17430
17430-16350
Pipe Assy, Exhaust, Tail
[08.1987 - 02.1988] 4AGE..AE92..CND; 4AGE..AE92..USA COLD SPEC |
17430-16350 |
— | ||
|
17430
|
17430
17430-16381 Pipe Assy, Exhaust, TailEXHAUST, TAIL [02.1988 - 08.1989] 4AGE..AE92 |
17430-16381 |
US $381.47 |
||
| replacement | |||||
|
17430
|
17430
17430-16350
Pipe Assy, Exhaust, Tail
[02.1988 - 08.1989] 4AGE..AE92 |
17430-16350 |
— | ||
|
17430
|
17430
17430-16780 Pipe Assy, Exhaust, TailEXHAUST, TAIL [08.1989 - 06.1991] 4AGE..AE92 |
17430-16780 |
US $460.10 |
||
|
17451
|
17451
90917-06012
Gasket, Exhaust Pipe
[08.1987 - 03.1989] 4A#..AE92 |
90917-06012 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[08.1987 - 03.1989] 4A#..AE92 |
90917-06045 |
from US $1.60 |
||
| replacement | |||||
|
17451
|
17451
90080-43028 Gasket, Exhaust Pipe[08.1987 - 03.1989] 4A#..AE92 |
90080-43028 |
US $26.18 |
||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[03.1989 - 08.1989] 4AGE..AE92 |
90917-06045 |
from US $1.60 |
||
| replacement | |||||
|
17451
|
17451
90080-43028 Gasket, Exhaust Pipe[03.1989 - 08.1989] 4AGE..AE92 |
90080-43028 |
US $26.18 |
||
|
17451
|
17451
90917-06047
Gasket, Exhaust Pipe
[08.1989 - 04.1991] 4A#..AE92 |
90917-06047 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[08.1989 - 04.1991] 4A#..AE92 |
90917-06045 |
from US $1.60 |
||
| replacement | |||||
|
17451
|
17451
90080-43028 Gasket, Exhaust Pipe[08.1989 - 04.1991] 4A#..AE92 |
90080-43028 |
US $26.18 |
||
|
17504
|
17504
17504-16010 Bracket Sub-Assy, Catalytic ConverterCATALYTIC CONVERTER [08.1987 - 04.1990] 4AF#,4AGE..AE92 |
17504-16010 |
US $18.05 |
||
|
17504
|
17504
17504-16011
Bracket Sub-Assy, Catalytic Converter
[04.1990 - 06.1991] 4A#..AE92 |
17504-16011 |
— | ||
|
17506A
|
17506A
17506-15060
Bracket Sub-Assy, Exhaust Pipe No.1 Support
[08.1987 - 06.1991] 4AF#,4AGE..AE92 |
17506-15060 |
— | ||
|
17507
|
17507
17507-15030
Bracket Sub-Assy, Exhaust Pipe No.2 Support
[08.1987 - 06.1991] 4AF#,4AGE..AE92 |
17507-15030 |
— | ||
|
17508
|
17508
17508-15030
Support Sub-Assy, Exhaust Pipe, No.3
[08.1987 - 06.1991] 4AF#,4AGE..AE92 |
17508-15030 |
— | ||
|
17565A
|
17565A
17565-15070 Support, Exhaust Pipe, No.3[08.1987 - 06.1991] 4AGE..AE92 NO.1 |
17565-15070 |
from US $7.14 |
||
|
17572
|
17572
17572-15050 Bracket, Exhaust Pipe No.1 Support[08.1987 - 06.1991] 4AF#,4AGE..AE92 |
17572-15050 |
US $22.01 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $3.05 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $0.96 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9162160820
|
9162160820
91621-60820 New Genuine Part |
91621-60820 |
US $1.75 |
||
| replacement | |||||
|
9162160820
|
9162160820
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.92 |
||
|
9162160825
|
9162160825
91621-60825
BOLT
|
91621-60825 |
— | ||
| replacement | |||||
|
9162160825
|
9162160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
|
9165160825
|
9165160825
91651-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91651-60825 |
— | ||
| replacement | |||||
|
9165160825
|
9165160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.37 |
||
