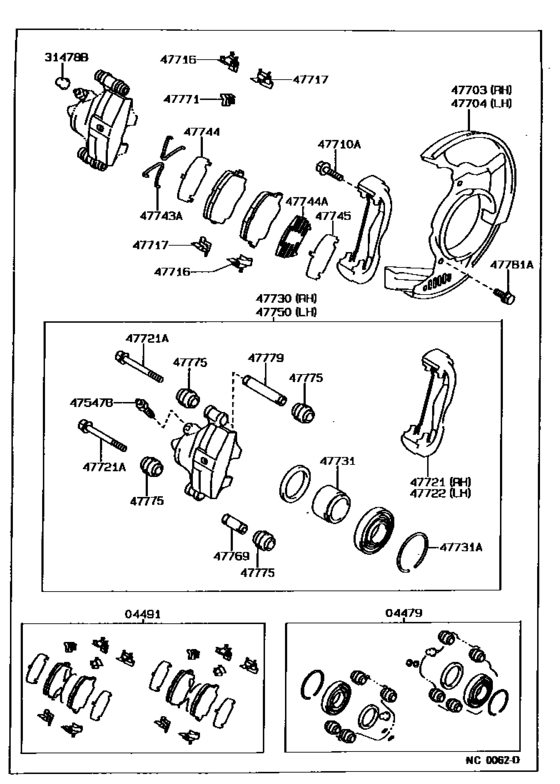

Front Disc Brake Caliper & Dust Cover ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- GTS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04479
|
04479
04479-12091 Cylinder Kit, Disc Brake, Front[08.1987 - 08.1989] AE92 |
04479-12091 |
from US $48.91 |
||
|
04479
|
04479
04479-12140 Cylinder Kit, Disc Brake, Front[08.1989 - 06.1991] AE92..GTS |
04479-12140 |
from US $50.57 |
||
|
04491
|
04491
04491-12340 Pad Kit, Disc Brake, FrontDISC BRAKE, FRONT [08.1987 - 12.1988] AE92..EFI |
04491-12340 |
US $163.07 |
||
| replacement | |||||
|
04491
|
04491
04465-20030 Pad Kit, Disc Brake, Front[08.1987 - 12.1988] AE92..EFI |
04465-20030 |
US $149.97 |
||
|
04491
|
04491
04491-12341 Pad Kit, Disc Brake, Front[12.1988 - 01.1989] AE92..EFI |
04491-12341 |
US $163.07 |
||
| replacement | |||||
|
04491
|
04491
04465-20030 Pad Kit, Disc Brake, Front[12.1988 - 01.1989] AE92..EFI |
04465-20030 |
US $149.97 |
||
|
04491
|
04491
04491-12461 Pad Kit, Disc Brake, FrontDISC BRAKE, FRONT [08.1989 - 06.1991] AE92..GTS..CND |
04491-12461 |
US $171.81 |
||
| replacement | |||||
|
04491
|
04491
04465-12090 Pad Kit, Disc Brake, Front[08.1989 - 06.1991] AE92..GTS..CND |
04465-12090 |
US $97.96 |
||
|
31478B
|
31478B
31478-30010 Bleeder Plug Cap[08.1987 - 06.1991] AE92 |
31478-30010 |
from US $1.50 |
||
|
47547B
|
47547B
47547-20010 Plug, Bleeder(For Release Cylinder)[08.1989 - 06.1991] AE92..USA;AE92..GTS..CND |
47547-20010 |
from US $3.58 |
||
|
47703
|
47703
47703-12120
Cover Sub-Assy, Disc Brake Dust, Front Rh
[08.1987 - 01.1989] AE92 |
47703-12120 |
— | ||
| replacement | |||||
|
47703
|
47703
47703-12121 Cover Sub-Assy, Disc Brake Dust, Front Rh[08.1987 - 01.1989] AE92 |
47703-12121 |
US $22.36 |
||
|
47703
|
47703
47703-12121 Cover Sub-Assy, Disc Brake Dust, Front Rh[01.1989 - 03.1989] AE92 |
47703-12121 |
US $22.36 |
||
|
47703
|
47703
47703-32040
Cover Sub-Assy, Disc Brake Dust, Front Rh
[08.1989 - 06.1991] AE92..GTS |
47703-32040 |
— | ||
|
47704
|
47704
47704-12120
Cover Sub-Assy, Disc Brake Dust, Front Lh
[08.1987 - 01.1989] AE92 |
47704-12120 |
— | ||
| replacement | |||||
|
47704
|
47704
47704-12121 Cover Sub-Assy, Disc Brake Dust, Front Lh[08.1987 - 01.1989] AE92 |
47704-12121 |
US $22.36 |
||
|
47704
|
47704
47704-12121 Cover Sub-Assy, Disc Brake Dust, Front Lh[01.1989 - 03.1989] AE92 |
47704-12121 |
US $22.36 |
||
|
47704
|
47704
47704-32040
Cover Sub-Assy, Disc Brake Dust, Front Lh
[08.1989 - 06.1991] AE92..GTS |
47704-32040 |
— | ||
|
47710A
|
47710A
90119-12040 Bolt, Hexagon(For Front Disc Brake Caliper)[08.1987 - 03.1989] AE92 *12-1.25PX25.8-19.5 |
90119-12040 |
from US $1.66 |
||
|
47716
|
47716
47716-32010 Plate, Pad Support, No.1(For Front Disc Brake)[08.1987 - 12.1988] AE92 |
47716-32010 |
US $8.01 |
||
| replacement | |||||
|
47716
|
47716
47716-32031 Plate, Pad Support, No.1(For Front Disc Brake)[08.1987 - 12.1988] AE92 |
47716-32031 |
from US $5.77 |
||
|
47716
|
47716
47716-32031 Plate, Pad Support, No.1(For Front Disc Brake)[12.1988 - 06.1991] AE92..CBR;AE92..USA..EFI;AE92..GTS..CND |
47716-32031 |
from US $5.77 |
||
|
47717
|
47717
47717-32010 Plate, Pad Support, No.2(For Front Disc Brake)[08.1987 - 12.1988] AE92 |
47717-32010 |
US $8.01 |
||
| replacement | |||||
|
47717
|
47717
47717-32031 Plate, Pad Support, No.2(For Front Disc Brake)[08.1987 - 12.1988] AE92 |
47717-32031 |
US $6.99 |
||
|
47717
|
47717
47717-32031 Plate, Pad Support, No.2(For Front Disc Brake)[12.1988 - 06.1991] AE92..CBR;AE92..USA..EFI;AE92..GTS..CND |
47717-32031 |
US $6.99 |
||
|
47721
|
47721
47721-12120 Mounting, Front Disc Brake Cylinder, Rh[08.1987 - 08.1989] AE92 |
47721-12120 |
US $173.26 |
||
|
47721
|
47721
47721-12130 Mounting, Front Disc Brake Cylinder, Rh[08.1989 - 06.1991] AE92..GTS |
47721-12130 |
US $257.71 |
||
|
47721A
|
47721A
90119-09003 Bolt(For Front Disc Brake Cylinder Slide)[08.1987 - 06.1991] AE92..CBR;AE92..GTS *9-1.25PX71-25 |
90119-09003 |
US $9.86 |
||
|
47721A
|
47721A
90119-09004 Bolt(For Front Disc Brake Cylinder Slide)[08.1987 - 06.1991] AE92..CBR;AE92..USA..EFI;AE92..GTS..CND *9-1.25PX91-25 |
90119-09004 |
from US $2.26 |
||
|
47722
|
47722
47721-12120 Mounting, Front Disc Brake Cylinder, Rh[08.1987 - 08.1989] AE92 |
47721-12120 |
US $173.26 |
||
|
47722
|
47722
47721-12130 Mounting, Front Disc Brake Cylinder, Rh[08.1989 - 06.1991] AE92..GTS |
47721-12130 |
US $257.71 |
||
|
47730
|
47730
47730-12320 Cylinder Assy, Front Disc Brake, Rh[01.1989 - 06.1991] AE92..GTS |
47730-12320 |
US $566.38 |
||
|
47730
|
47730
47730-12350 Cylinder Assy, Front Disc Brake, Rh[08.1987 - 01.1989] AE92..EFI |
47730-12350 |
US $576.58 |
||
| replacement | |||||
|
47730
|
47730
47730-12310 Cylinder Assy, Front Disc Brake, Rh[08.1987 - 01.1989] AE92..EFI |
47730-12310 |
US $566.38 |
||
|
47731
|
47731
47731-12130 Piston, Front Disc Brake[08.1989 - 06.1991] AE92..GTS |
47731-12130 |
US $50.57 |
||
|
47731
|
47731
47731-12150 Piston, Front Disc Brake[08.1987 - 08.1989] AE92 |
47731-12150 |
US $83.16 |
||
|
47731A
|
47731A
90522-61001 Ring, Set(For Front Disc Brake Piston)[08.1987 - 08.1989] AE92 |
90522-61001 |
US $0.93 |
||
|
47731A
|
47731A
90522-64003 Ring, Set(For Front Disc Brake Piston)[08.1989 - 06.1991] AE92..GTS |
90522-64003 |
US $2.18 |
||
|
47743A
|
47743A
47743-32010 Spring, Anti-Squeal(For Front Disc Brake)[08.1987 - 08.1989] AE92 |
47743-32010 |
US $3.93 |
||
| replacement | |||||
|
47743A
|
47743A
47743-12070 Spring, Anti-Squeal(For Front Disc Brake)[08.1987 - 08.1989] AE92 |
47743-12070 |
US $4.08 |
||
|
47743A
|
47743A
47743-32020 Spring, Anti-Rattle, No.2(For Front Disc Brake)[08.1989 - 06.1991] AE92..GTS |
47743-32020 |
from US $2.24 |
||
|
47744
|
47744
47744-16011 Shim, Anti-Squeal, No.1(For Front Disc Brake)[08.1987 - 08.1989] AE92 |
47744-16011 |
US $3.49 |
||
| replacement | |||||
|
47744
|
47744
47744-32010 Shim, Anti-Squeal, No.1(For Front Disc Brake)[08.1987 - 08.1989] AE92 |
47744-32010 |
US $5.02 |
||
|
47744
|
47744
47744-32010 Shim, Anti-Squeal, No.1(For Front Disc Brake)[08.1989 - 06.1991] AE92..USA;AE92..GTS..CND |
47744-32010 |
US $5.02 |
||
|
47744A
|
47744A
47742-12020 Shim, Anti-Squeal, No.3(For Front Disc Brake)[12.1987 - 12.1988] AE92..EFI |
47742-12020 |
US $3.64 |
||
|
47744A
|
47744A
47742-17010 Shim, Anti-Squeal, No.1(For Front Disc Brake)[08.1987 - 12.1987] AE92..EFI |
47742-17010 |
US $3.49 |
||
|
47744A
|
47744A
47742-32040 Shim, Anti-Squeal, No.1(For Front Disc Brake)[12.1988 - 01.1989] AE92..EFI |
47742-32040 |
US $3.64 |
||
|
47745
|
47745
47745-12050 Shim, Anti-Squeal, No.2(For Front Disc Brake)[12.1987 - 12.1988] AE92..EFI |
47745-12050 |
US $3.64 |
||
|
47745
|
47745
47745-17020 Shim, Anti-Squeal, No.1(For Front Disc Brake)[08.1987 - 12.1987] AE92..EFI |
47745-17020 |
US $3.49 |
||
|
47745
|
47745
47745-32040 Shim, Anti-Squeal, No.3(For Front Disc Brake)[12.1988 - 01.1989] AE92..EFI |
47745-32040 |
US $4.84 |
||
|
47750
|
47750
47750-12320 Cylinder Assy, Disc Brake, Lh[08.1989 - 06.1991] AE92..GTS |
47750-12320 |
US $566.38 |
||
|
47750
|
47750
47750-12350 Cylinder Assy, Disc Brake, Lh[08.1987 - 01.1989] AE92 |
47750-12350 |
US $576.58 |
||
|
47769
|
47769
47769-12030 Bush, Cylinder Slide, No.1(For Front Disc Brake)[08.1987 - 06.1991] AE92..CBR;AE92..USA..EFI;AE92..GTS..CND |
47769-12030 |
from US $8.85 |
||
|
47771
|
47771
47771-32010 Plate, Pad Wear Indicator, No.1[08.1987 - 06.1991] AE92..CBR;AE92..USA..EFI;AE92..GTS..CND |
47771-32010 |
US $4.48 |
||
|
47775
|
47775
47775-32010 Boot, Bush Dust(For Front Disc Brake)[08.1987 - 06.1991] AE92 |
47775-32010 |
from US $6.06 |
||
|
47779
|
47779
47779-16010 Bush, Cylinder Slide, No.2(For Front Disc Brake)[08.1987 - 06.1991] AE92..CBR;AE92..USA..EFI;AE92..GTS..CND |
47779-16010 |
from US $6.94 |
||
|
47781A
|
47781A
90109-06134 Bolt(For Dust Cover To Steering Knuckle Arm Setting)[08.1987 - 03.1989] AE92 |
90109-06134 |
US $2.15 |
||
