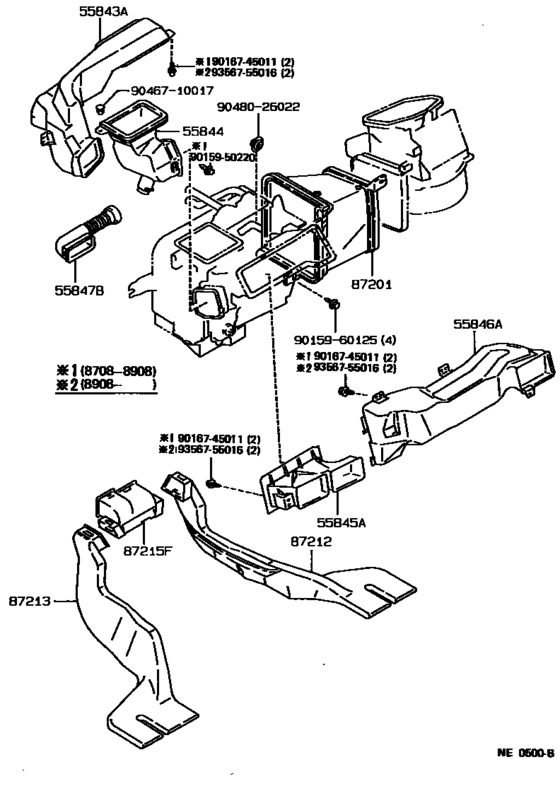

Heating & Air Conditioning - Control & Air Duct ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- GTS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55843A
|
55843A
55843-12200 Duct, Heater To Register, No.1HEATER TO REGISTER, NO.1 [08.1987 - 06.1991] AE92 |
55843-12200 |
US $69.45 |
||
|
55844
|
55844
55844-12260 Duct, Heater To Register, No.2HEATER TO REGISTER, NO.2 [08.1987 - 06.1991] AE92 |
55844-12260 |
US $35.24 |
||
|
55844
|
55844
55844-12280 Duct, Heater To Register, No.2HEATER TO REGISTER, NO.2 [08.1987 - 06.1991] AE92 W(AIR CONDITIONER) |
55844-12280 |
US $35.24 |
||
|
55845A
|
55845A
55845-12140
Duct, Heater To Register, No.3
[08.1987 - 06.1991] AE92 |
55845-12140 |
— | ||
|
55846A
|
55846A
55846-12140 Duct, Heater To Register, No.4HEATER TO REGISTER, NO.4 [08.1987 - 06.1991] AE92 |
55846-12140 |
US $64.21 |
||
|
55847B
|
55847B
55847-12070 Duct, Heater To Register, No.5[08.1987 - 05.1989] AE92 |
55847-12070 |
US $17.33 |
||
| replacement | |||||
|
55847B
|
55847B
55847-12071
Duct, Heater To Register, No.5
[08.1987 - 05.1989] AE92 |
55847-12071 |
— | ||
|
55847B
|
55847B
55847-12071
Duct, Heater To Register, No.5
[05.1989 - 08.1989] AE92 |
55847-12071 |
— | ||
|
87201
|
87201
87201-12140
Duct Sub-Assy, Air, No.1
[08.1987 - 06.1991] AE92..CND |
87201-12140 |
— | ||
|
87212
|
87212
87212-12060 Duct, Air, Rear No.1[08.1987 - 06.1991] AE92..USA; AE92..CND |
87212-12060 |
US $52.12 |
||
|
87213
|
87213
87213-12030 Duct, Air, Rear No.2[08.1987 - 06.1991] AE92..USA; AE92..CND |
87213-12030 |
US $52.12 |
||
|
87215F
|
87215F
87215-12010 Duct, Air, Rear No.3[08.1987 - 06.1991] AE92..USA; AE92..CND |
87215-12010 |
US $16.02 |
||
|
9015950220
|
9015950220
90159-50220 New Genuine Part |
90159-50220 |
US $1.51 |
||
|
9015960125
|
9015960125
90159-60125
New Genuine Part
|
90159-60125 |
— | ||
| replacement | |||||
|
9015960125
|
9015960125
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
|
9016745011
|
9016745011
90167-45011 Direct |
90167-45011 |
US $1.60 |
||
| replacement | |||||
|
9016745011
|
9016745011
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9046710017
|
9046710017
90467-10017 Clip(For Rear Door Trim Board) |
90467-10017 |
US $2.48 |
||
| replacement | |||||
|
9046710017
|
9046710017
90467-10017-22 Clip(For Front Door No.2 Weatherstrip) |
90467-10017-22 |
US $1.61 |
||
|
9048026022
|
9048026022
90480-26022 Grommet (For Cooler Unit) |
90480-26022 |
US $2.45 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
