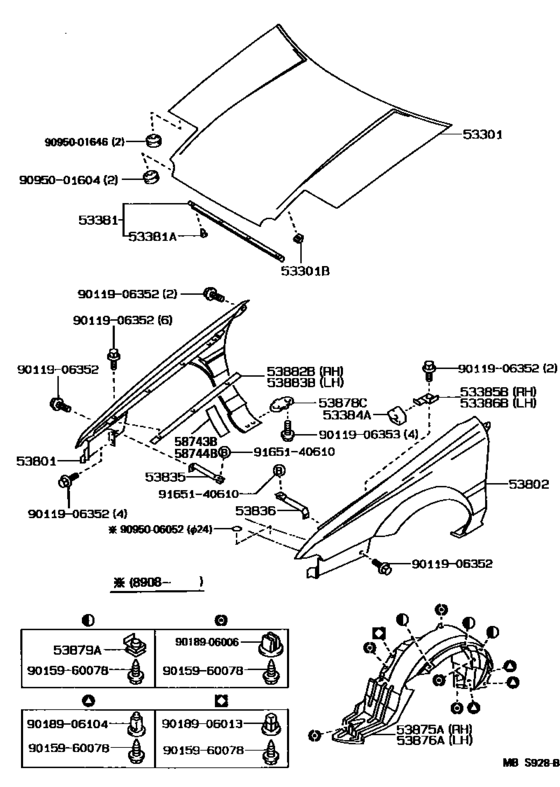

Hood & Front Fender ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- GTS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301
|
53301
53301-12620
Hood Sub-Assy
[08.1987 - 06.1991] AE92 |
53301-12620 |
— | ||
|
53301B
|
53301B
53388-12020
Cushion, Hood Bumper
[08.1987 - 06.1991] AE92 |
53388-12020 |
— | ||
|
53381
|
53381
53381-12150 Seal, Hood To Radiator Support[08.1987 - 06.1991] AE92..USA; AE92..CND |
53381-12150 |
US $19.95 |
||
|
53381A
|
53381A
90467-08011 Clip(For Headlamp Cover Seal)[08.1987 - 06.1991] AE92..USA; AE92..CND |
90467-08011 |
from US $0.38 |
||
| replacements | |||||
|
53381A
|
53381A
90467-08011-TH CLIP[08.1987 - 06.1991] AE92..USA; AE92..CND |
90467-08011-TH |
US $0.31 |
||
|
53381A
|
53381A
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [08.1987 - 06.1991] AE92..USA; AE92..CND |
90467-08011-83 |
US $3.60 |
||
|
53384A
|
53384A
53384-14010 Bumper, Fender To Hood[08.1987 - 06.1991] AE92 |
53384-14010 |
from US $5.38 |
||
|
53385B
|
53385B
53385-12010 Bracket, Fender To Hood Bumper, Rh[08.1987 - 06.1991] AE92 |
53385-12010 |
US $5.39 |
||
|
53386B
|
53386B
53386-12010 Bracket, Fender To Hood Bumper, Lh[08.1987 - 06.1991] AE92 |
53386-12010 |
US $5.39 |
||
|
53801
|
53801
53801-1E550 Fender Sub-Assy, Front Rh[08.1987 - 05.1989] AE92 |
53801-1E550 |
US $502.32 |
||
| replacement | |||||
|
53801
|
53801
53801-1E690
Fender Sub-Assy, Front Rh
[08.1987 - 05.1989] AE92 |
53801-1E690 |
— | ||
|
53801
|
53801
53801-1E690
Fender Sub-Assy, Front Rh
[05.1989 - 06.1991] AE92 |
53801-1E690 |
— | ||
|
53802
|
53802
53802-1E430 Fender Sub-Assy, Front Lh[08.1987 - 05.1989] AE92 |
53802-1E430 |
US $502.32 |
||
| replacement | |||||
|
53802
|
53802
53802-1E570
Fender Sub-Assy, Front Lh
[08.1987 - 05.1989] AE92 |
53802-1E570 |
— | ||
|
53802
|
53802
53802-1E570
Fender Sub-Assy, Front Lh
[05.1989 - 06.1991] AE92 |
53802-1E570 |
— | ||
|
53835
|
53835
53835-12060 Brace, Front Fender To Extension, Rh[08.1987 - 06.1991] AE92 |
53835-12060 |
US $9.46 |
||
|
53836
|
53836
53835-12060 Brace, Front Fender To Extension, Rh[08.1987 - 06.1991] AE92 |
53835-12060 |
US $9.46 |
||
|
53875A
|
53875A
53875-12170
Liner, Front Fender, Rh
[08.1987 - 06.1991] AE92 |
53875-12170 |
— | ||
|
53876A
|
53876A
53876-12160
Liner, Front Fender, Lh
[08.1987 - 06.1991] AE92 |
53876-12160 |
— | ||
|
53878C
|
53878C
53878-20030 Spacer, Front Fender[08.1987 - 06.1991] AE92 |
53878-20030 |
US $3.14 |
||
|
53879A
|
53879A
53879-14010 Retainer, Front Fender Liner[08.1987 - 06.1991] AE92 |
53879-14010 |
US $4.12 |
||
|
53882B
|
53882B
53882-12080
Seal, Front Fender, Rh
[08.1987 - 06.1991] AE92 |
53882-12080 |
— | ||
|
53883B
|
53883B
53882-12080
Seal, Front Fender, Rh
[08.1987 - 06.1991] AE92 |
53882-12080 |
— | ||
|
58743B
|
58743B
58743-12010 Protecter, Front Fender Panel, Rh[08.1988 - 06.1991] AE92 |
58743-12010 |
US $11.79 |
||
|
58744B
|
58744B
58743-12010 Protecter, Front Fender Panel, Rh[08.1988 - 06.1991] AE92 |
58743-12010 |
US $11.79 |
||
|
9011906352
|
9011906352
90119-06352
New Genuine Part
|
90119-06352 |
— | ||
| replacement | |||||
|
9011906352
|
9011906352
90119-06430 BOLT WWASHER |
90119-06430 |
from US $1.54 |
||
|
9011906353
|
9011906353
90119-06353
LEXSCREW
|
90119-06353 |
— | ||
| replacement | |||||
|
9011906353
|
9011906353
90119-06420 BOLT WWASHER |
90119-06420 |
from US $1.29 |
||
|
9015960078
|
9015960078
90159-60078 SCREW |
90159-60078 |
US $2.15 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.98 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.70 |
||
|
9018906104
|
9018906104
90189-06104 CLIP |
90189-06104 |
from US $1.17 |
||
|
9095001604
|
9095001604
90950-01604 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01604 |
US $1.97 |
||
|
9095001646
|
9095001646
90950-01646 New Genuine Part |
90950-01646 |
US $1.97 |
||
|
9095006052
|
9095006052
90950-06052 New Genuine Part |
90950-06052 |
US $3.03 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
