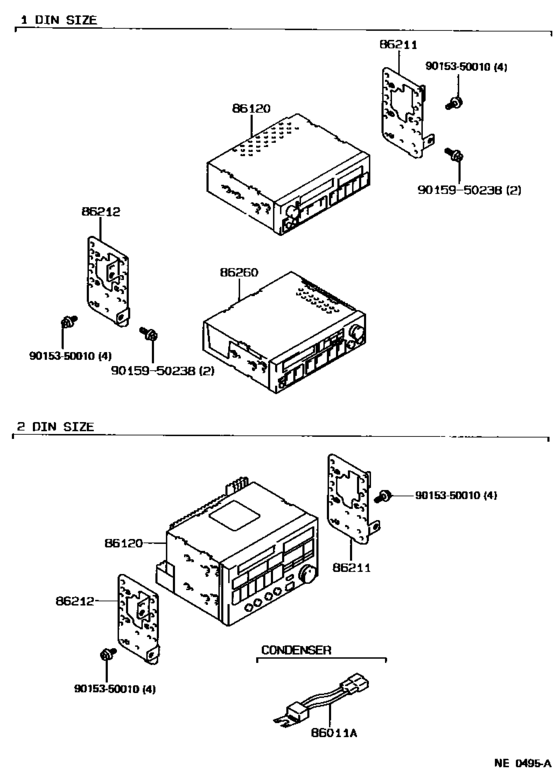

Radio Receiver & Amplifier & Condenser ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- GTS
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86011A
|
86011A
90980-04055
Condenser, Radio Setting
[08.1987 - 06.1991] AE92..GTS |
90980-04055 |
— | ||
|
86120
|
86120
86120-12580
Receiver Assy, Radio
[08.1987 - 08.1988] AE92..EFI *AFM/*AF/4-AMP/2-DIN |
86120-12580 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-12621 Receiver Assy, RadioRADIO [08.1987 - 08.1988] AE92..EFI *AFM/*AF/4-AMP/2-DIN |
86120-12621 |
US $4,324.32 |
||
|
86120
|
86120
86120-12630 Receiver Assy, RadioRADIO [08.1988 - 08.1989] AE92..CND..EFI *AMC/*AF/4-AMP/2-DIN |
86120-12630 |
US $3,989.44 |
||
| replacement | |||||
|
86120
|
86120
86120-12631 Receiver Assy, RadioRADIO [08.1988 - 08.1989] AE92..CND..EFI *AMC/*AF/4-AMP/2-DIN |
86120-12631 |
US $4,033.12 |
||
|
86120
|
86120
86120-12631 Receiver Assy, RadioRADIO [08.1989 - 08.1990] AE92..GTS..CND *AMC/*AF/4-AMP/2-DIN |
86120-12631 |
US $4,033.12 |
||
|
86120
|
86120
86120-16371 Receiver Assy, RadioRADIO [08.1987 - 08.1988] AE92..CBR AM/FM MPX ETR/4-AMP; AE92..EFI *AFM/4-AMP |
86120-16371 |
US $1,820 |
||
|
86120
|
86120
86120-16381
Receiver Assy, Radio
[08.1987 - 08.1988] AE92 *AFM/4-AMP/2-DIN |
86120-16381 |
— | ||
|
86120
|
86120
86120-16561 Receiver Assy, RadioRADIO [08.1989 - 08.1990] AE92..GTS,SR5 *AFM/4-AMP/1-DIN |
86120-16561 |
US $2,912 |
||
| replacement | |||||
|
86120
|
86120
86120-16571 Receiver Assy, RadioRADIO [08.1989 - 08.1990] AE92..GTS,SR5 *AFM/4-AMP/1-DIN |
86120-16571 |
US $2,912 |
||
|
86120
|
86120
86120-16571 Receiver Assy, RadioRADIO [08.1990 - 06.1991] AE92..GTS,SR5 AM/FM ETR,4-SPEAKERS/CASSETTE,AM;530-1710KHZ |
86120-16571 |
US $2,912 |
||
|
86120
|
86120
86120-28040
Receiver Assy, Radio
[08.1988 - 08.1990] AE92..GTS AM/FM MPX ETR/4-AMP; AE92..DX,SR5 AM/FM MPX ETR/4AMP |
86120-28040 |
— | ||
|
86120
|
86120
86120-28041 Receiver Assy, RadioRADIO [08.1990 - 06.1991] AE92..DX,SR5 AM/FM MPX ETR,4-SPEAKERS; AE92..GTS AM/FM MPX ETR,4-SPEAKERS |
86120-28041 |
US $1,718.08 |
||
|
86120
|
86120
86120-28050 Receiver Assy, RadioRADIO [08.1988 - 08.1990] AE92 *AFM/4-AMP |
86120-28050 |
US $3,407.04 |
||
|
86211
|
86211
86211-12200
Bracket, Radio, No.1
[08.1987 - 06.1991] AE92 |
86211-12200 |
— | ||
|
86212
|
86212
86212-12180
Bracket, Radio, No.2
[08.1987 - 06.1991] AE92 |
86212-12180 |
— | ||
|
86260
|
86260
86260-12180 Tape Player Assy[08.1988 - 09.1990] AE92 |
86260-12180 |
US $1,001.73 |
||
|
86260
|
86260
86260-20170 Tape Player Assy[08.1987 - 10.1987] AE92 |
86260-20170 |
US $806.62 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.70 |
||
|
9015950238
|
9015950238
90159-50238 SCREW WWASHER |
90159-50238 |
US $2.15 |
||
